HDS-14X 14,000lb 4 Post Lift - Extended Length by BendPak With Car

BendPak HDS-14X 14,000lb 4 Post Lift - Extended Length

SKU 5175173
by BendPak
  • ✓ Free Shipping
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Better Business Bureau (BBB) Accredited
$8,695.00

Delivery Options

Notify me when back in stock

HDS-14X 14,000lb 4 Post Lift by BendPak

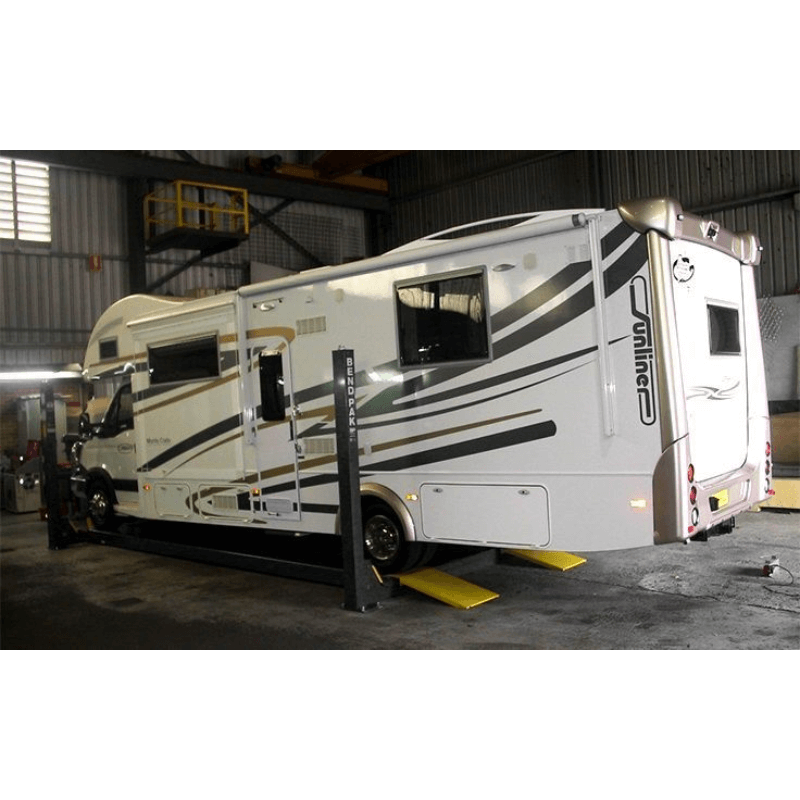

When your shop needs to handle the big players—limousines, heavy-duty trucks, and oversized SUVs—the BendPak HDS-14X is the ultimate ally. Boasting a massive 14,000-lb. lifting capacity and extended 229-inch runways, this four-post lift redefines what heavy-duty performance looks like. Engineered for safety and reliability, it features advanced spring-loaded safety locks, dual-hub cable sheaves, and a secondary lock system to ensure secure operation for even the toughest jobs.

But this lift isn’t just about brute strength—it’s about delivering an unparalleled service experience. With a 70-inch rise height, pneumatic push-button safety release, it gives you the versatility to tackle any challenge. Optional add-ons like drip trays and drive-thru ramps make it a flexible solution tailored to your shop's needs. Upgrade your operations with the HDS-14X and elevate your service capabilities to new heights!

4 Post Lift HDS-14X Specification

Capacity

  • Lifting Capacity: 14,000 lbs.
  • Max Front/Rear Axle Capacity: 7,000 lbs.

Lift Dimensions

  • Overall Width: 130"
  • Overall Length: 272"
  • Height of Columns: 92"

Runways

  • Length: 227.5"
  • Width: 20"
  • Width Between Runways: 34.5" or 41.5"

Performance

  • Min. Runway Height: 7.5"
  • Max. Lifting Height: 77.5"
  • Time to Full Rise: 60 seconds

Locking System

  • Lock Positions: 15 (every 4")
  • Secondary Slack-Cable Safety Latches

Power Requirements

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

Shipping

  • Weight: 2,740 lbs.
  • Dimensions: 239" x 22" x 29"
Warranty:
  • 5 Year - Lift Structure
  • 2 year - Hydraulic Unit & Power Unit
  • 1 Year - Electrical and Operating Components
  • *Reasonable labor costs covered for first 12 months

HDS-14X 14,000lb 4 Post Lift Special Features

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway

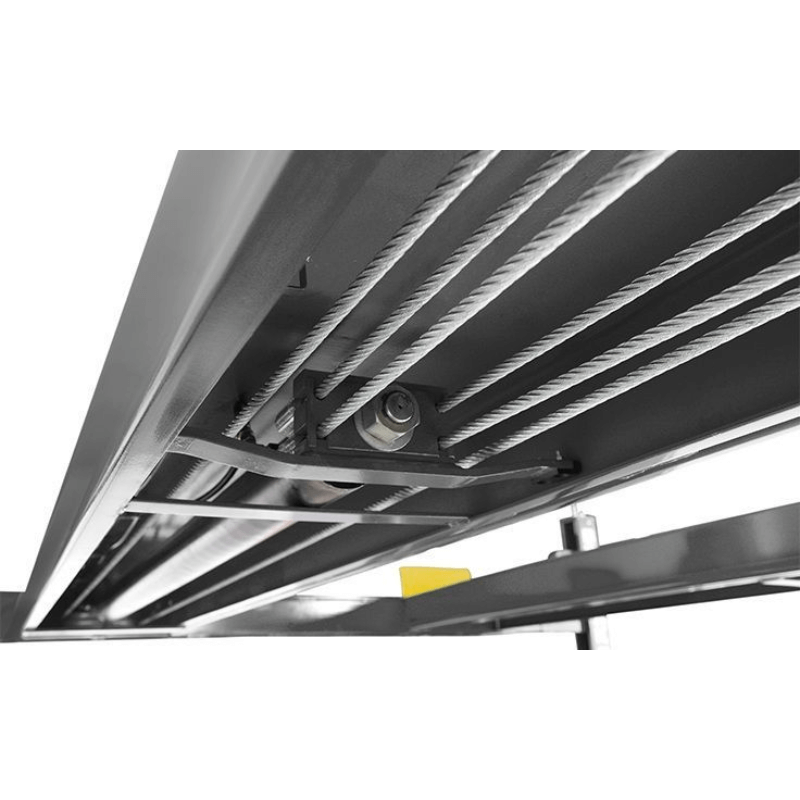

  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 1/2" aircraft cable
  • Safety locks enclosed in columns minimize pinch points

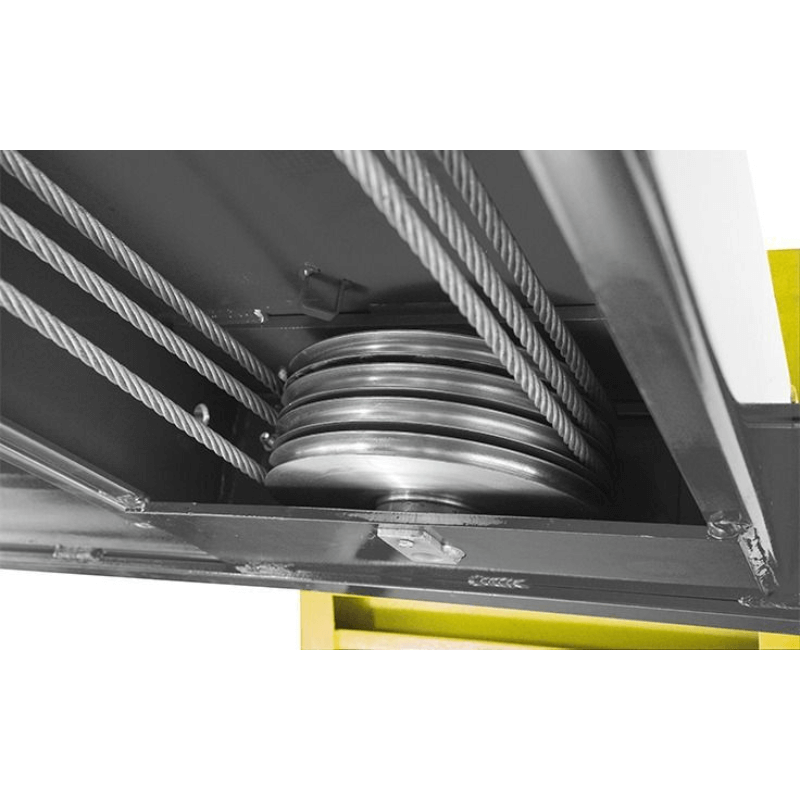

  • Oversized sheave diameter reduces cable fatigue
  • Oversized self-lubricating cable rollers
  • Rugged 1.75" roller axles
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature a durable matte finish
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 7,000-lb. capacity rolling jacks available (Model R​BJ7000)
  • ETL approved
  • Optional Items (Sold Separately):
    • Rolling Bridge Airline kit
    • Roll-back kit
    • Drive-thru Ramps
    • Drip Trays
    • 7,000-lb. Rolling Jacks (Model RJ7W)

BendPak HDS-14X Documentation

BendPak HDS-14X Installation and Operations Manual  BendPak HDS-14X Installation and Operations Manual
BendPak HDS-14X Product Brochure  BendPak HDS-14X Product Brochure

Warehouse Pickup Locations: $600 Pickup Discount Available - Contact us for more information!

  • Santa Paula, CA 93060
  • Theodore, AL 36582
BendPak HDS014P 14,000lb 4 Post Lift Diagram
A - Min. Runway Height:  7.5" (191 mm)
B - Max. Rise:  70" (1,778 mm)
C - Max. Lifting Height:  77.5" (1,969 mm)
D - Overall Width:  130" (3,302 mm)
E - Outside Length:  243" (6,172 mm)
F - Overall Length:  272" (6,908 mm)
G - Height of Columns:  92" (2,337 mm)
H - Width Between Columns:120" (3,048 mm)
I - Drive-Thru Clearance:  98" (2,489 mm)
J - Runway Width:  20" (508 mm)
K - Length of Runways:  227.5" (5,778 mm)
L - Width Between Runways:  34.5" (876 mm) or 41.5" (1,054 mm)
M - Runway Centerline:  57.5" (1,461 mm) or 64.5" (1,638 mm)
N - Outside Edge of Runways:  77.5" (1,969 mm) or 84.5" (2,146 mm)
