BendPak HDS-14XT 14,000lb 4 Post Lift - Extra Tall; Extended Runways

BendPak HDS-14XT 14,000 lb High-Rise Four-Post Lift

BendPak HDS-14XT High-Rise Four-Post Lift delivers exceptional lifting capacity, extended runways, and increased working height designed for professional automotive service facilities. Built to handle heavy-duty vehicles such as SUVs, limousines, and extended trucks, this lift provides technicians with generous under-vehicle clearance for comfortable and efficient maintenance.

Extended 227.5" runways and a high lifting height create an ideal workspace for larger vehicles while reducing technician fatigue during long service jobs. Featuring heavy-duty aircraft cables, oversized cable sheaves, and fully enclosed safety components, the HDS-14XT offers long-term durability, reduced wear, and dependable safety performance for busy commercial garages.

HDS-14XT Specification

• Model: HDS-14XT

• Lifting Capacity: 14,000 lbs

• Front Axle Capacity: 7,000 lbs

• Rear Axle Capacity: 7,000 lbs

• Min Runway Height: 7.5"

• Max Rise: 82.75"

• Max Lifting Height: 89.5"

• Time to Full Rise: 90 seconds

• Overall Width: 130"

• Outside Length: 243"

• Overall Length: 272"

• Column Height: 104"

• Width Between Columns: 120"

• Drive-Thru Clearance: 80.75"

• Runway Width: 20"

• Runway Length: 227.5"

• Width Between Runways: 34.5" or 41.5"

• Runway Centerline: 57.5" or 64.5"

• Outside Edge of Runways: 77.5" or 84.5"

• Minimum Wheelbase (Rated Capacity): 160"

• Minimum Wheelbase (75% Capacity): 140"

• Minimum Wheelbase (50% Capacity): 115"

• Minimum Wheelbase (25% Capacity): 95"

• Locking Positions: 18

• Lock Spacing: Every 4"

• Motor: 220 VAC / 60 Hz / 1 Phase

• Noise Level: 45 dB

• Shipping Weight: 2,740 lbs

• Shipping Dimensions: 239" x 22" x 29"

HDS-14XT 14,000-lb. Capacity 4 Post Lift Special Features

• 14,000 lb heavy-duty lifting capacity

• Extended 227.5" runways for large vehicles

• High-rise design for greater working clearance

• Automatic spring-loaded safety lock system

• Independent slack-cable safety latches

• Pneumatic push-button safety release

• Heavy-duty 1/2" aircraft-quality lifting cables

• Oversized 10.5" cable sheaves to reduce cable fatigue

• Internal anti-sway slider blocks for stable lifting

• Fully enclosed cables, sheaves, and safety components

• Adjustable safety ladders for precise runway leveling

• Customizable power unit placement

• Rail kit integrated into runways for optional accessories

• Extended approach ramps for low-clearance vehicles

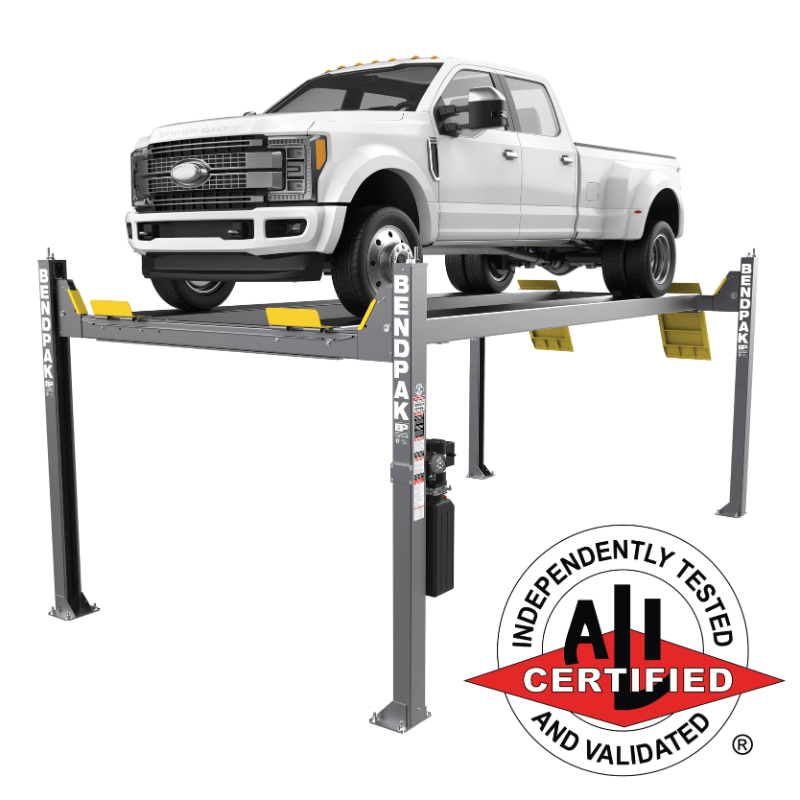

• ALI Certified for safety and performance

• Optional Rolling Jack: RJ7W 7k Rolling Jack

HDS-14XT Manual

   HDS-14XT Installation and Operations Manual

   HDS-14XT Sales Sheet

   HDS-14XT Warranty
