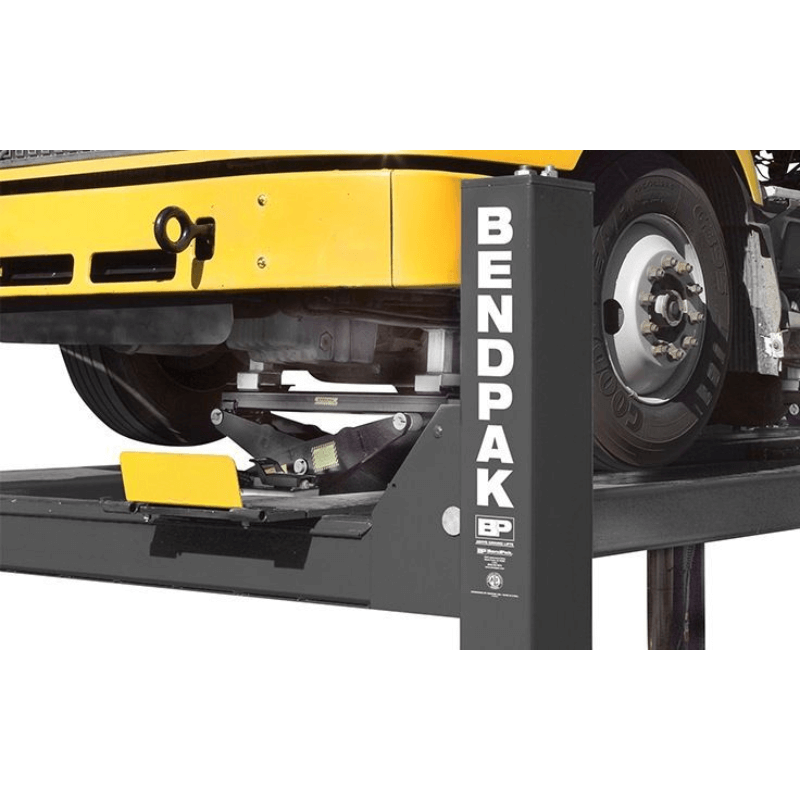

BendPak HDS-40X 40,000lb 4 Post Lift - Extended Length; ALI Certified

HDS-40X 40,000lb 4 Post Lift by BendPak

For the toughest lifting jobs, the BendPak HDS-40X delivers the power and reliability you need. With a mouthwatering 40,000-lb. lifting capacity and extended runways up to 310 inches, it’s perfect for handling oversized vehicles like buses, trucks, and military-grade equipment. The advanced safety systems—featuring spring-loaded safety locks, a secondary lock system, and dual-hub cable sheaves—ensure every lift is stable and secure, allowing you to focus on the task at hand. The wide drive-through clearance and user-friendly controls make it easy to load and operate, creating a seamless and safe experience for operators.

The HDS-40X is built to perform, with features like galvanized lifting cables, a maintenance-free hydraulic system, and a durable powder-coated finish that reduces upkeep while boosting longevity. Whether you're servicing large fleets or tackling heavy-duty repairs, this lift ensures your shop stays productive. Its optional rolling bridge jacks enhance its functionality, offering you even more capabilities for wheel service. With the HDS-40X, you’ll experience top-tier performance, safety, and comfort that takes your maintenance facility to the next level.

HDS40X Specification

• Total Lifting Capacity: 40,000 lbs

  • Front Axle Max: 20,000 lbs

  • Rear Axle Max: 20,000 lbs

• Minimum Runway Height: 9.5"

• Maximum Rise: 60"

• Maximum Lifting Height: 67"

• Time to Full Rise: 75 seconds

• Overall Width: 153.5"

• Outside Length: 317"

• Overall Length: 373.75"

• Height of Columns: 91.25"

• Width Between Columns: 133.5"

• Drive-Thru Clearance: 109"

• Runway Width: 28"

• Runway Length: 316"

• Width Between Runways: 40.75"

• Runway Centerline: 74"

• Outside Edge of Runways: 102"

• Minimum Wheelbase:

  • Rated Capacity: 230"

  • 75% Capacity: 195"

  • 50% Capacity: 165"

  • 25% Capacity: 130"

• Locking Positions: 13

• Lock Spacing: Every 4"

• Motor: 220 VAC / 60 Hz / Single Phase

• Noise Level: 45 dB

• Shipping Weight: 6,748 lbs

• Shipping Dimensions: 266" x 33" x 37"

BendPak 40X 40,000lb 4 Post Lift Special Features

• Supersized 12" diameter cable sheaves

• Galvanized lifting cables

• Extended length runways

• Grease nipples for lubrication

• Single hydraulic under-runway cylinder with integrated flow restrictor

• Durable powder-coated finish

• Spring-loaded safety locks with second lock system on constant guard

• Fully enclosed lifting cables

• Multiple adjustable height locking positions

• Maintenance-free electric hydraulic power system

• Conveniently positioned operator controls

• 12" x 12" base plates

• Runways feature a durable matte finish

• Optional rolling jacks

• Warranty
  • 5 Year - Lift Structure
  • 2 year - Hydraulic Unit & Power Unit
  • 1 Year - Electrical and Operating Components
  • *Reasonable labor costs covered for first 12 months

BendPak HDS-40X Manual

  BendPak HDS-40X Operations Manual

  HDS-40X Sales Sheet

BendPak 40,000lb 4 Post Lift Optional Item Sold Separately:

• RBJ25000 25,000lb Rolling Bridge Jack or
• RBJ15000 15,000lb Rolling Bridge Jack
• Extended approach ramps (48-inch steel ramps)
• Secondary lock system for added safety


Warehouse Pickup Locations: $2000 Pickup Discount Available - Contact us for more information!

• Santa Paula, CA 93060
• Theodore, AL 36582

A - Min. Runway Height: 8.5” (216 mm)
B - Max. Rise: 60” (1,524 mm)
C - Max. Lifting Height: 68.5” (1,740 mm)
D - Overall Width: 153.5” (3,899 mm)
E - Outside Length: 317” (8,052 mm)
F - Overall Length: 373.5” (9,487 mm)
G - Height of Columns: 93” (2,362 mm)
H - Width Between Columns: 134” (3,404 mm)
I - Drive-Thru Clearance: 109” (2,769 mm)
J - Runway Width: 28” (711 mm)
K - Length of Runways: 304.5” (7,734 mm)
L - Width Between Runways: 41” (1,041 mm)
M - Runway Centerline: 69” (1,753 mm)
N - Outside Edge of Runways: 97” (2,464 mm)
