BendPak HDS14LSXE 14,000lb Alignment Lift - Extended Length; ALI Certified

HDS14LSXE 14,000lb Alignment Lift by BendPak

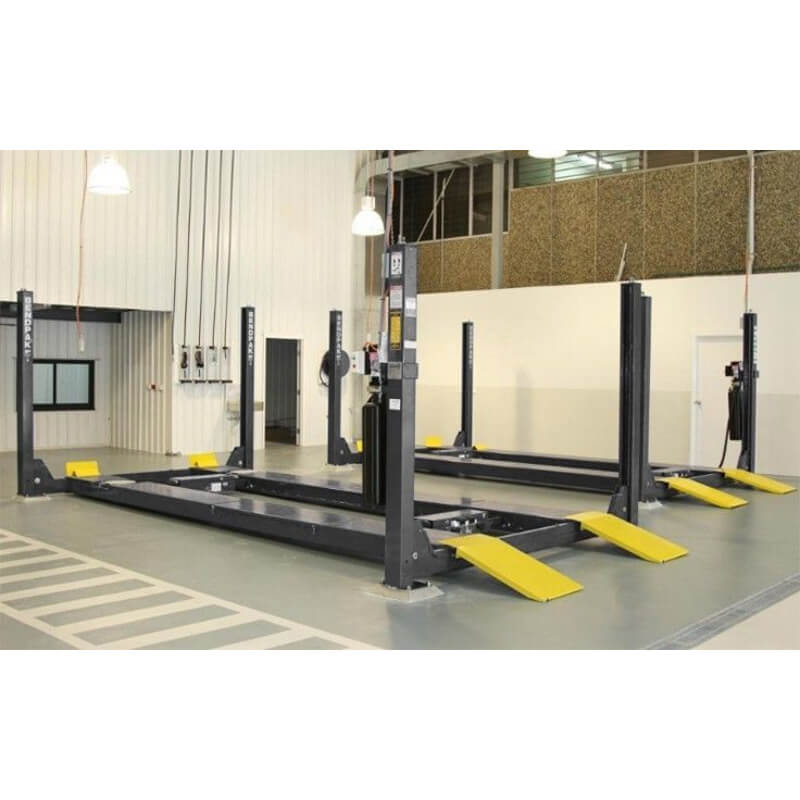

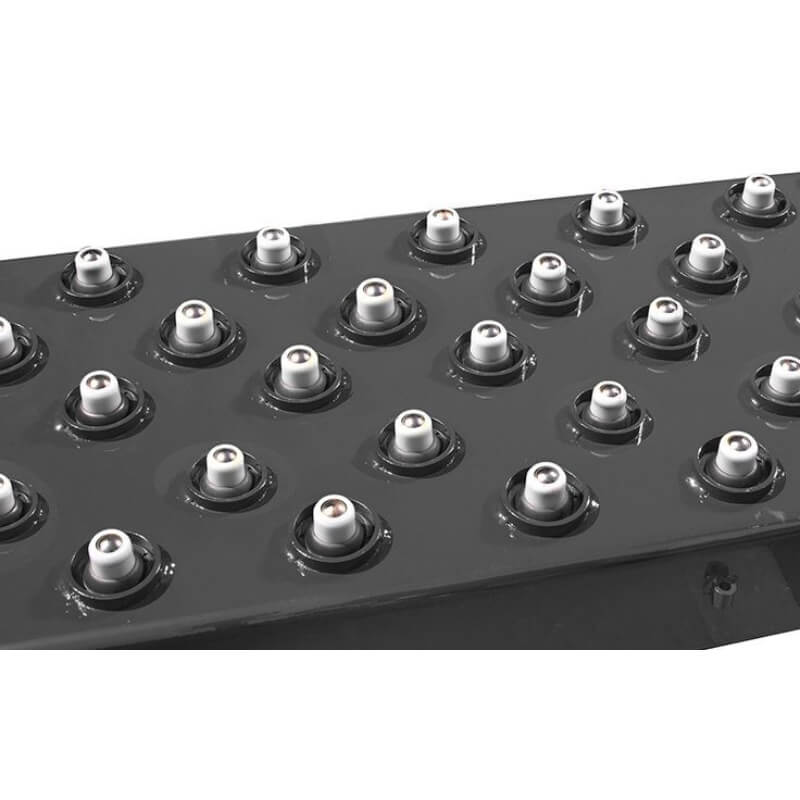

Looking for a lift that does it all? The BendPak HDS14LSXE Alignment Lift is your answer! With an impressive 14,000 lbs. lifting capacity and a 229-inch runway length, this powerhouse makes aligning even the largest trucks and vans a walk in the park. It features galvanized front turn plates and multi-caster slip plates in the rear, so your alignment’s as smooth as can be—no hiccups, no delays.

The HDS14LSXE is engineered for safety and convenience with spring-loaded safety locks, a pneumatic lock release, and a secondary lock system. Those low-clearance vehicles? No problem! The extended approach ramps ensure they’re easy to load, and with fully enclosed cables and hoses, you won’t have to worry about wear and tear. Want even more power? Add optional rolling bridge jacks for a no-hassle wheel and brake service.

Alignment Lift HDS14LSXE Specification

• Lifting Capacity: 14,000 lbs

• Max Capacity (Front Axle): 7,000 lbs

• Max Capacity (Rear Axle): 7,000 lbs

• Minimum Runway Height: 7.5"

• Maximum Rise: 70.75"

• Maximum Lifting Height: 77.5"

• Time to Full Rise: 60 seconds

• Overall Width: 130"

• Outside Length: 243"

• Overall Length: 272"

• Column Height: 92"

• Width Between Columns: 120"

• Drive-Thru Clearance: 98"

• Runway Width: 20"

• Runway Length: 227.5"

• Width Between Runways: 34.5" or 41.5"

• Minimum 4-Wheel Alignment: 89"

• Maximum 4-Wheel Alignment: 156"

• Maximum 2-Wheel Alignment: 212"

• Minimum Wheelbase (Rated Capacity): 165"

• Minimum Wheelbase (75% Capacity): 140"

• Minimum Wheelbase (50% Capacity): 115"

• Minimum Wheelbase (25% Capacity): 95"

• Locking Positions: 15

• Lock Spacing: 4"

• Motor: 220 VAC / 60 Hz / 1 Phase

• Noise Level: 45 dB

• Shipping Weight: 3,368 lbs

• Shipping Dimensions: 239" x 25" x 33"

HDS14LSXE 14,000lb Alignment Lift Special Features

• CE approved and certified to EN 1493 standards

• Automatic leveling system

• Heavy-duty turn plates and integrated rear slip plates

• Single hydraulic cylinder with electric/hydraulic power system

• Anti-sway slider blocks in each column

• Oversize sheaves with heavy-duty aircraft cables

• Multi-position safety locks with push-button release

• Adjustable runways with durable matte finish

• Rail kit included for optional accessories

• Optional 7,000-lb bridge jacks available

BendPak HDS14LSXE Manual

  BendPak HDS14LSXE Installation and Operations Manual

  BendPak HDS14LSXE Product Brochure
