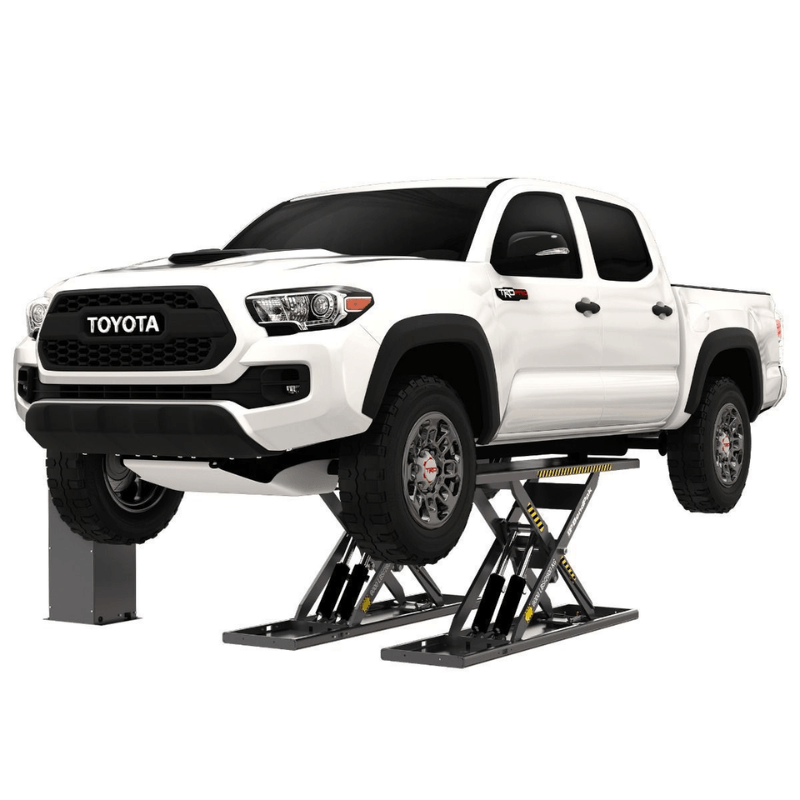

BendPak MDS-6EXTF 6,000lb Mid-Rise Scissor Lift - Flush Mount

MDS-6EXTF 6,000 lb Scissor Lift

Quick-lube stations, service shops, and EV-ready bays often struggle with limited space, low-profile vehicles, and longer wheelbase designs that standard scissor lifts cannot properly accommodate. Many mid-rise lifts also fall short when it comes to reach, stability, and underbody access for modern vehicles.

The BendPak MDS-6EXTF Flush-Mount Mid-Rise Scissor Lift is engineered to solve these challenges with an extended-length platform and a 6,000 lb lifting capacity designed for today’s diverse vehicle lineup. Built for flush installation over service pits, it allows vehicles to drive directly over the lift for fast positioning and efficient workflow. Extended platforms provide improved reach for long-wheelbase vehicles, while optional lift blocks and approach configurations support low-clearance cars and larger tire setups.

Powered by a dual hydraulic cylinder system with integrated equalization, the MDS-6EXTF delivers smooth, stable lifting up to approximately 45 inches of working height. A pneumatic safety release system and automatic locking bars ensure secure operation, while its rugged steel construction and maintenance-friendly design make it ideal for high-volume service environments.

6EXTF Specification

• Lifting Capacity: 6,000 lbs (2,722 kg)

• Type: Flush-Mount Mid-Rise Scissor Lift

• Lifting Height (No Blocks): 36.75"

• Lifting Height (Medium Blocks 1.5"): 38.25"

• Lifting Height (Tall Blocks 2.9"): 39.65"

• Platform Length: 78.75"

• Total Length: 78.75" (no ramps/extensions)

• Platform Width: 19"

• Width Between Platforms: 40" – 46"

• Lowered Height: 5.25"

• Max Platform to Console Distance: 40"

• Lifting Time: 35 seconds

• Hydraulic Pressure at Max Capacity: 1,700 PSI

• Motor Options: 110 VAC, 50–60 Hz, 1 Phase / 220 VAC, 50 Hz, 1 Phase / 208–230 VAC, 60 Hz, 1 Phase

MDS 6EXTF 6,000lb Mid-Rise Scissor Lift Special Features

• Flush-mount mid-rise scissor lift for pit installations

• 6,000 lb lifting capacity for cars, SUVs, and light trucks

• Extended platform design for long-wheelbase vehicles

• Compatible with low-stance and performance vehicles

• Dual hydraulic cylinder system with equalized lifting

• Solid steel scissor frame support bars for strength

• Automatic safety lock engagement during operation

• Pneumatic lock release system for smooth lowering

• Push-button safety release control for ease of use

• Zerk grease fittings for reduced wear and maintenance

• Three locking height positions for flexible servicing

• Durable rubber lift blocks included for secure contact points

• Fast 35-second lift time for high-efficiency workflow

• Powder-coated steel construction for long-term durability

• Ideal for quick-lube shops, EV bays, and service centers

MDS-6EXTF Manual

  BendPak MDS-6EXTF Installation and Operations Manual

  BendPak MDS-6EXTF Spec Sheet

  BendPak MDS-6EXTF Warranty
