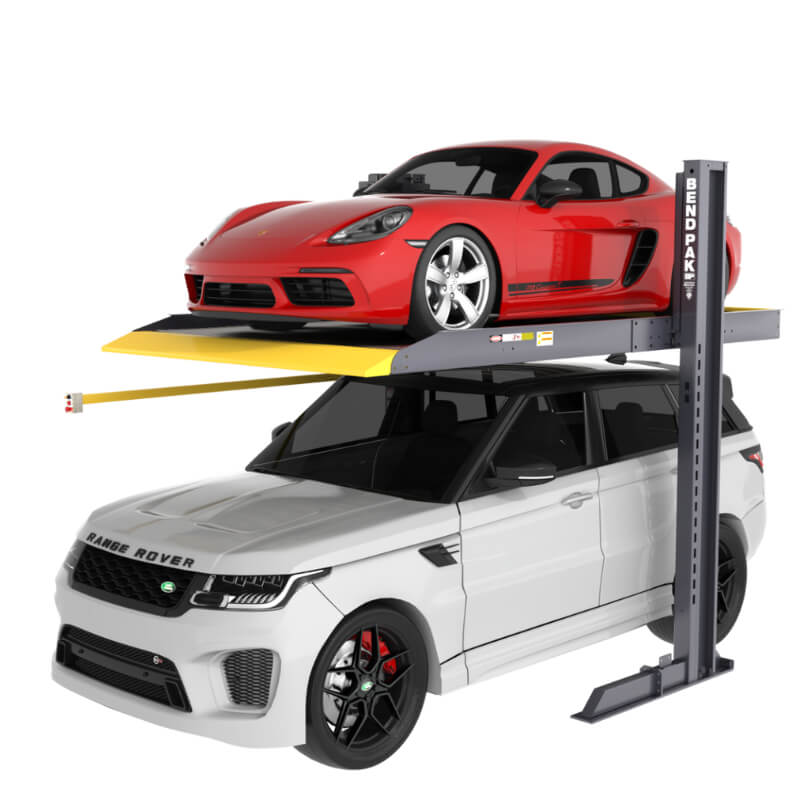

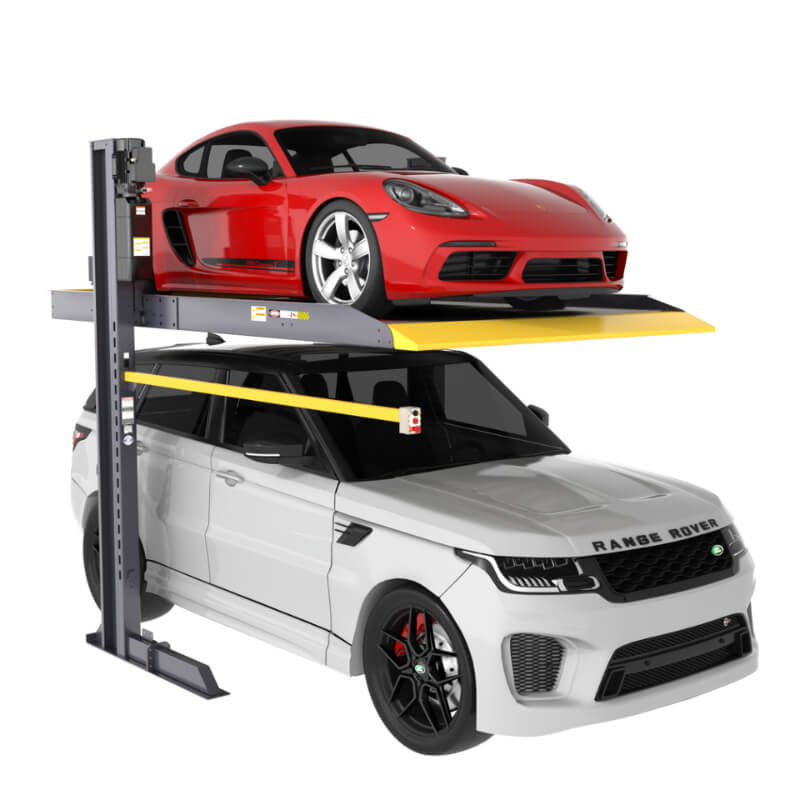

PL6000DCX 6,000lb Vehicle Storage Lift - Wide by BendPak

The PL-6000DCX by BendPak is a space-optimized, two-post parking lift engineered for high-density vehicle storage with an impressive 6,000-lb. lifting capacity. Its shared column design allows for ganged installations, maximizing your available footprint while minimizing the number of structural posts needed. Whether you're outfitting a residential garage, commercial property, or parking facility, the PL-6000DCX seamlessly integrates into both indoor and outdoor environments for unmatched versatility.

This lift is designed for efficiency and reliability, featuring a single direct-drive hydraulic cylinder that delivers smooth and quiet operation without the complexity of screw systems. A gravity-driven lowering system reduces energy consumption, cutting operating costs over time. Safety is built in with automatic load-holding devices that lock into place during lift operation, as well as manual safety lock releases and hydraulic overloading protection to keep both vehicles and users protected.

From SUVs to sedans, the PL-6000DCX handles a variety of vehicle types with its galvanized anti-slip platform and wide deck that fits most passenger vehicles. Installation is fast and simple, thanks to detailed manuals and compact packaging. With a freestanding design, key switch controls, and maintenance-free carriage bearings, this lift is built to provide secure, long-lasting performance in any setting—making it the ideal solution for developers, dealers, and commercial operators alike.

Storage Lift PL6000DCX Specification

    • Lifting Capacity per Platform: 6,000 lbs. (2,700 kg)

    • A) Total Width, Outside Edge to Outside Edge: 112 in. (2,847 mm)

    • B) Lift Platform Length: 157 in. (3,990 mm)

    • *C) Post Height (See Note 1): 131 in. (3,320 mm)

    • D) Post, Center to Center Width: 105.5 in. (2,682 mm)

    • E) Post Support Length: 60.25 in. (1,532 mm)

    • F) Lifting Height: 82.5 in. (2,100 mm)

    • G) Control Column Height: 71 in. (1,805 mm)

    • H) Lift Platform (Usable Width): 94.5 in. (2,400 mm)

    • I) Side Clearance Min.: 2 in. (50.75 mm)

    • J) Platform to Support: 36.25 in. (918.25 mm)

    • K) Length Overall: 163.5 in. (4,152.5 mm)

    • Lifting Time: <50 Seconds

    • Motor: 208–240V, 50/60Hz, 1-Ph., 4 HP, 22 Amps

    • Operating Temperature and Humidity: +41° to +104°F / +5° to +40°C, 50% RH

    BendPak PL6000DCX 6,000lb Vehicle Storage Lift Special Features

    • Ganged column design allows multiple installations in a minimum space.
    • Commercial grade design and construction
    • Galvanized and corrugated anti-slip platform
    • Freestanding design
    • Overhead power unit provides smooth quiet hydraulic operation.
    • Designed for installation on concrete surfaces
    • Platform can be stopped at different heights to fit various vehicles and ceiling heights.
    • Full width channel-locked center panels protect lower vehicle
    • Wide deck platform accommodates pickups, vans, and cars.
    • Single dual telescoping direct-drive cylinder
    • Manual safety lock holds platforms securely in place
    • Maintenance free composite carriage bearings

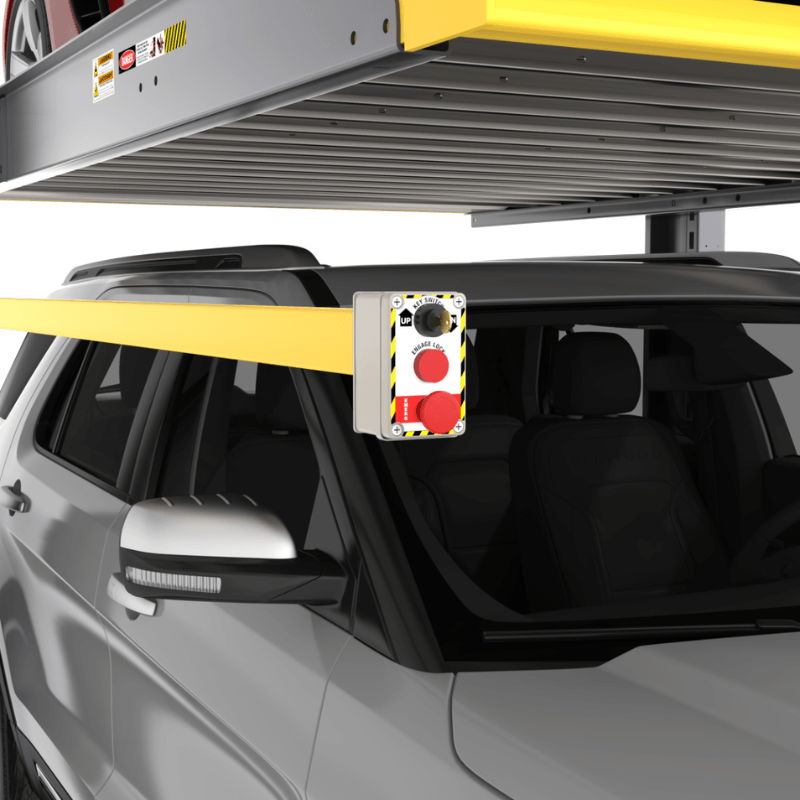

    • Electric key switch for security and safety
    • Automatic shut-off when operator releases key switch
    • Manual safety lock release
    • Hydraulic overloading protection

    PL6000DCX Manual

    BendPak PL6000DCX Installation Operations Manual   BendPak PL6000DCX Installation Operations Manual
    BendPak PL6000DCX Sales Sheet   BendPak PL6000DCX Sales Sheet

    Warehouse Pickup Location: $500 Pickup Discount Available - Contact Us for more Information!

    • Santa Paula, CA 93060
    • Theodore, AL 36582
    BendPak PL6000DCX Diagram 1
    BendPak PL6000DCX Diagram 2
