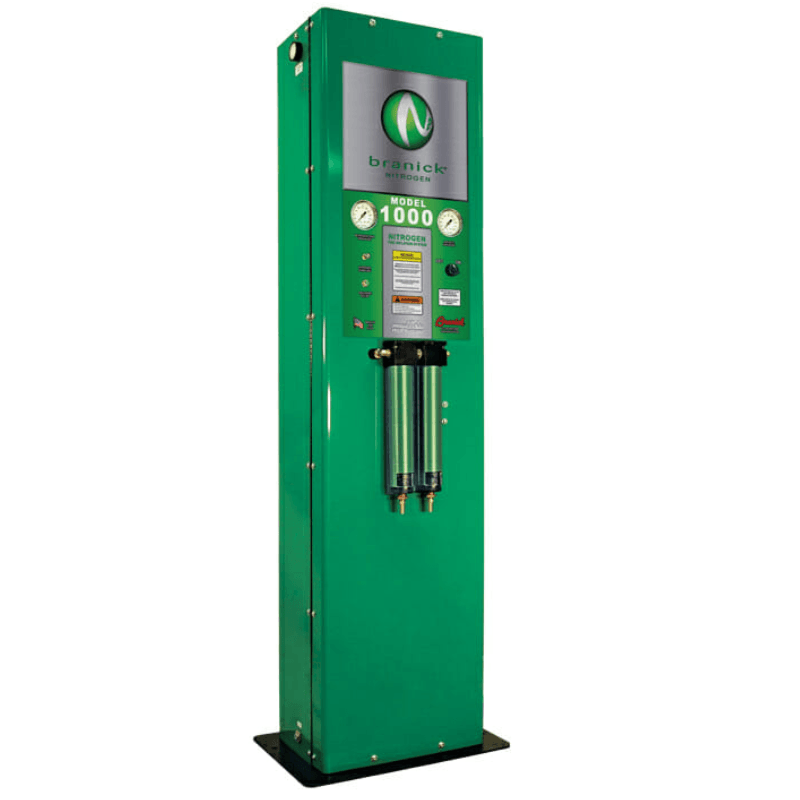

Branick 1000 Tower Nitrogen Inflation System

1000 Tower Nitrogen Inflation System

The Branick 1000 Tower Nitrogen Inflation System is designed for moderate- to high-volume tire service facilities that need higher nitrogen output for efficient tire inflation and service. Producing 14.2 CFM of nitrogen with adjustable purity from 95% to 99.5%, the Model 1000 provides a continuous nitrogen supply for shops handling a large number of vehicles. Its 1.9:1 air-to-nitrogen ratio helps maximize compressed-air efficiency during operation.

The Model 1000 uses PRISM membrane technology and includes a compressor-saving automatic shut-off to help reduce unnecessary compressor operation. Front-mounted controls, air input and nitrogen output pressure gauges, and an inline nitrogen purity test port make it easy to monitor system performance and verify nitrogen purity. Two pre-filters help support clean operation, while 5 years of free filters are included for convenient maintenance.

A compact 19" × 19" footprint allows the tower to provide high output without taking up excessive shop space. The durable all-steel enclosure is designed for demanding service environments, while the unit operates from a standard 110/120V outlet. Manufactured at Branick's facility in Fargo, North Dakota, the Model 1000 is a practical choice for professional tire shops and automotive service facilities requiring higher nitrogen production.

Tower Nitrogen Inflation System 1000 Specification

• Air Input Range: 100–175 PSI
• Air Input: 27.6 CFM
• Nitrogen Output: 14.2 CFM
• Nitrogen Purity: Adjustable, 95%–99.5%
• Operating Temperature: 40°F–150°F
• Inlet Port (Female): 3/8" NPT
• Outlet Port (Female): 3/8" NPT
• Nitrogen Purity Port: Yes
• Auto Shut-Off: Yes
• Pre-Filters: 2
• N2 Outlet Pressure Gauge: Yes
• Air Inlet Pressure Gauge: Yes
• Weight: 220 lbs.
• Dimensions: 19" D × 19" W × 72" H

1000 Tower Nitrogen Inflation System Special Features

• Designed for moderate- to high-volume tire service facilities
• 14.2 CFM nitrogen output
• Adjustable nitrogen purity from 95% to 99.5%
• 1.9:1 air-to-nitrogen ratio
• PRISM membrane technology
• Compressor-saving automatic shut-off
• Adjustable nitrogen purity test port
• Air input and nitrogen output pressure gauges
• Two pre-filters
• 5 years of free filters included
• Compact tower design minimizes floor space
• Standard 110/120V electrical connection
• Durable all-steel construction
• Manufactured in the USA

Branick 1000 Manuals

  Branick 1000 Tower Installation and Operations Manual

  Branick 1000 Tower Spec Sheet
