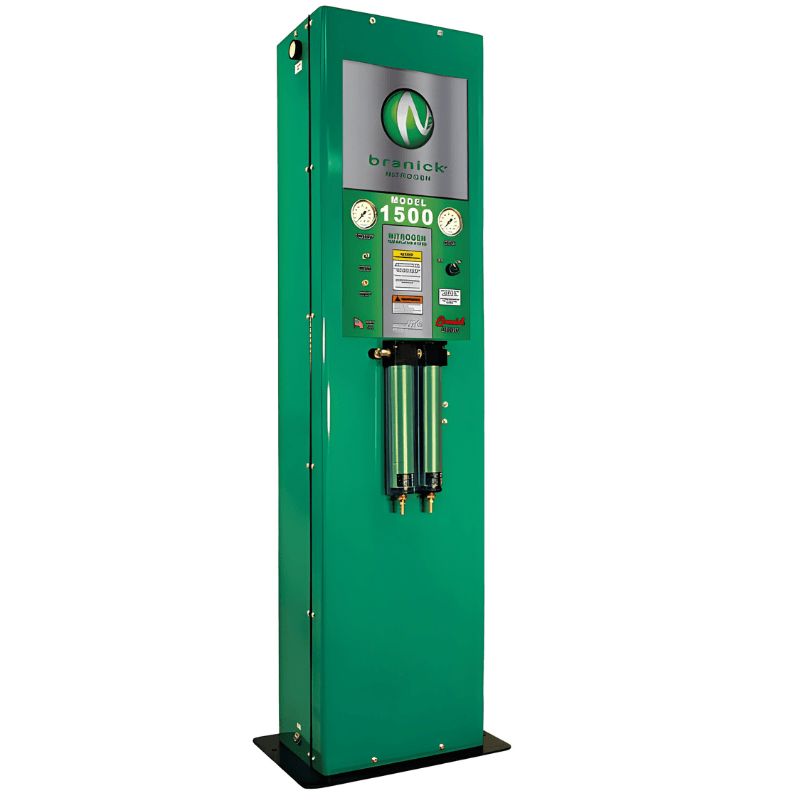

Branick 1500 Tower Nitrogen Inflation System

1500 Tower Nitrogen Inflation System

The Branick 1500 Tower Nitrogen Inflation System is the largest generator in the Branick tower lineup, built for high-volume commercial tire shops, fleet operations, and OTR applications. Its triple-membrane design produces up to 21.3 CFM of nitrogen, providing the output needed for facilities servicing multiple bays, commercial truck tires, and other high-demand tire applications. Nitrogen purity is adjustable from 95% to 99.5% to accommodate different service requirements.

The Model 1500 uses PRISM membrane technology, which also helps remove moisture from the compressed air supply and supports more consistent nitrogen purity throughout the operating life of the system. An automatic shut-off helps reduce unnecessary compressor use, while front-mounted controls and air input and nitrogen output pressure gauges allow technicians to monitor system operation at a glance. The integrated nitrogen purity test port also provides a convenient way to verify output purity.

Built with a durable all-steel enclosure, the Branick 1500 combines high output with a compact 19" × 19" footprint to help conserve valuable shop space. The system operates from a standard 110/120V outlet and includes two pre-filters, with 5 years of free filters included for maintenance.

Tower Nitrogen Inflation System 1500 Specification

• Air Input Range: 100–175 PSI
• Air Input: 41.4 CFM
• Nitrogen Output: 21.3 CFM
• Nitrogen Purity: Adjustable, 95%–99.5%
• Operating Temperature: 40°F–150°F
• Inlet Port (Female): 3/8" NPT
• Outlet Port (Female): 3/8" NPT
• Nitrogen Purity Port: Yes
• Auto Shut-Off: Yes
• Pre-Filters: 2
• N2 Outlet Pressure Gauge: Yes
• Air Inlet Pressure Gauge: Yes
• Weight: 230 lbs.
• Dimensions: 19" D × 19" W × 72" H

1500 Tower Nitrogen Inflation System Special Features

• Largest nitrogen generator in the Branick tower lineup
• Designed for high-volume commercial shops and OTR applications
• 21.3 CFM nitrogen output
• Triple-membrane nitrogen generation system
• Adjustable nitrogen purity from 95% to 99.5%
• 1.9:1 air-to-nitrogen ratio
• PRISM membrane technology
• Helps remove moisture from compressed air
• Compressor-saving automatic shut-off
• Adjustable nitrogen purity test port
• Air input and nitrogen output pressure gauges
• Two pre-filters
• 5 years of free filters included
• Compact tower design minimizes floor space
• Standard 110/120V electrical connection
• Durable all-steel construction
• Made in the USA

Branick 1500 Manuals

  Branick 1500 Tower Installation and Operations Manual

  Branick 1500 Tower Spec Sheet
