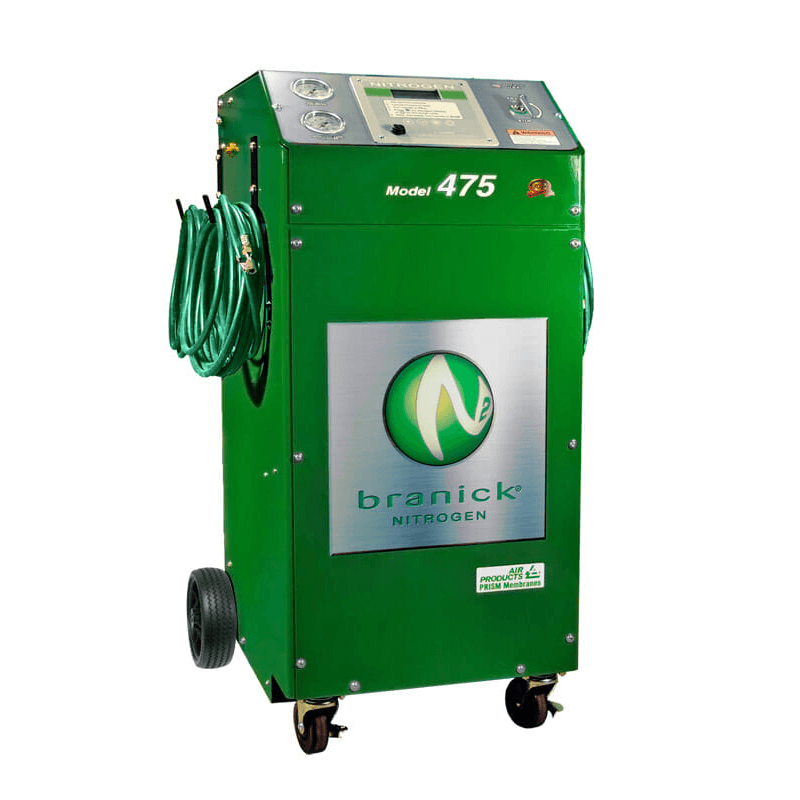

Branick 475 Mobile Nitrogen Inflation System

475 Mobile Nitrogen Inflation System

The Branick 475 Mobile Nitrogen Inflation System is designed for technicians who need dependable nitrogen service without being tied to a fixed air source. When mobility and fast tire service are priorities, the built-in 30-gallon tank lets the system operate independently for passenger vehicle conversions, while four standard hoses make routine tire service convenient.

The 475 uses PRISM Membrane technology to generate consistent nitrogen while also helping dry the compressed air supply. Its 4.0 CFM nitrogen output, adjustable 95%–99.5% purity, hands-free automatic inflator, and six available conversion ports provide flexibility for passenger and light truck applications, including dual tires and spares. An auxiliary outlet on the back can also be used to fill an external storage tank, giving shops additional nitrogen capacity when needed.

Mobile Inflation System 475 Specification

• Model: 475
• Product Type: Mobile Nitrogen Inflation System
• Air Input Range: 100–175 PSI
• Air Input: 7.8 CFM
• Nitrogen Output: 4.0 CFM
• Nitrogen Purity: Adjustable, 95%–99.5%
• Operating Temperature: 40°–150°F
• Inlet Port: 3/8" NPT Female
• Outlet Port: 3/8" NPT Female
• Nitrogen Purity Port: Yes
• Auto Shut-Off: Yes
• Pre-Filters: 2
• N2 Outlet Pressure Gauge: Yes
• Air Inlet Pressure Gauge: Yes
• Internal Tank: 30 Gallons
• Hoses: 4 Hooks
• Inflator Set Pressure Range: 5–145 PSI
• Inflator Accuracy: ±0.5% Full Scale
• Display Increments: 1 PSI
• Power Supply: 12V DC SLA
• Rechargeable: Yes
• Dimensions: 29" D × 29" W × 48" H
• Listed Weight: 350 lbs. / 380 lbs. (source provides both figures)
• Application: Passenger and light truck tire service

475 Mobile Nitrogen Inflation System Special Features

• PRISM Membrane technology
• 1.9:1 air-to-nitrogen ratio
• Mobile design with rechargeable 12V DC power
• Internal 30-gallon nitrogen tank
• Hands-free automatic tire inflator
• Converts up to 6 tires with optional hoses
• Four hoses with clip hooks included
• Adjustable nitrogen purity from 95%–99.5%
• Nitrogen purity test port
• Automatic shut-off
• Air inlet and N2 outlet pressure gauges
• Auxiliary outlet for filling external storage tanks
• Two pre-filters
• 5 years of free filters
• Made in the USA

Branick 475 Manuals

  Branick 475 Mobile Installation and Operations Manual

  Branick 475 Mobile Spec Sheet
