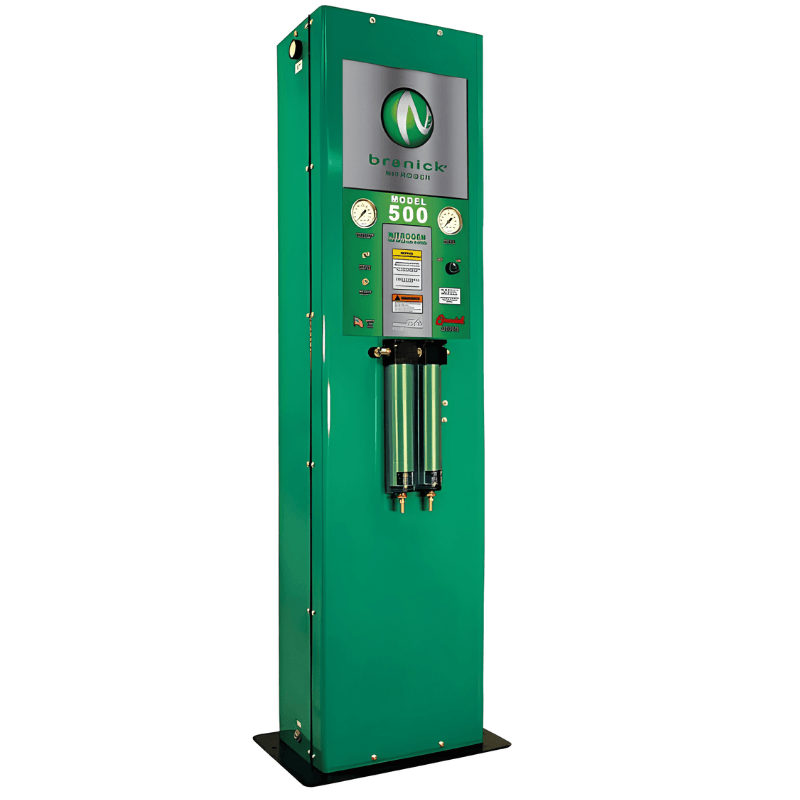

Branick 500 Tower Nitrogen Inflation System

500 Tower Nitrogen Inflation System

The Branick 500 Tower Nitrogen Inflation System is designed for moderate- to high-volume tire service facilities that need a dependable source of high-purity nitrogen. With a 7.1 CFM nitrogen output and adjustable purity from 95% to 99.5%, the Model 500 provides a practical solution for shops performing regular nitrogen tire inflation and service. Its 1.9:1 air-to-nitrogen ratio helps make efficient use of compressed air while maintaining consistent nitrogen production.

Built for daily shop use, the Branick 500 features durable PRISM membrane technology and an automatic shut-off that helps reduce unnecessary compressor operation. Front-mounted controls, air input and nitrogen output pressure gauges, and an inline nitrogen purity test port make the system straightforward to monitor and operate. Two pre-filters are included to support proper system performance and simplify routine maintenance.

The compact tower-style design helps minimize floor space while providing the output needed for busy tire service environments. The unit plugs into a standard 110/120V outlet and uses a durable all-steel enclosure designed for shop conditions. Manufactured at Branick's facility in Fargo, North Dakota, the Model 500 combines practical operation, adjustable nitrogen purity, and high-output performance in a space-saving system.

Tower Nitrogen Inflation System 500 Specification

• Air Input Range: 100–175 PSI
• Air Input: 13.8 CFM
• Nitrogen Output: 7.1 CFM
• Nitrogen Purity: Adjustable, 95%–99.5%
• Operating Temperature: 40°F–150°F
• Inlet Port (Female): 3/8" NPT
• Outlet Port (Female): 3/8" NPT
• Nitrogen Purity Port: Yes
• Auto Shut-Off: Yes
• Pre-Filters: 2
• N2 Outlet Pressure Gauge: Yes
• Air Inlet Pressure Gauge: Yes
• Weight: 210 lbs.
• Dimensions: 19" D × 19" W × 72" H

500 Tower Nitrogen Inflation System Special Features

• Designed for moderate- to high-volume tire service facilities
• 7.1 CFM nitrogen output
• Adjustable nitrogen purity from 95% to 99.5%
• 1.9:1 air-to-nitrogen input/output ratio
• PRISM membrane technology
• Compressor-saving automatic shut-off
• Adjustable nitrogen purity test port
• Air input and nitrogen output pressure gauges
• Two pre-filters
• Compact tower design minimizes floor space
• Standard 110/120V electrical connection
• Durable all-steel construction
• Manufactured in the USA

Branick 500 Manuals

  Branick 500 Tower Installation and Operations Manual

  Branick 500 Tower Spec Sheet
