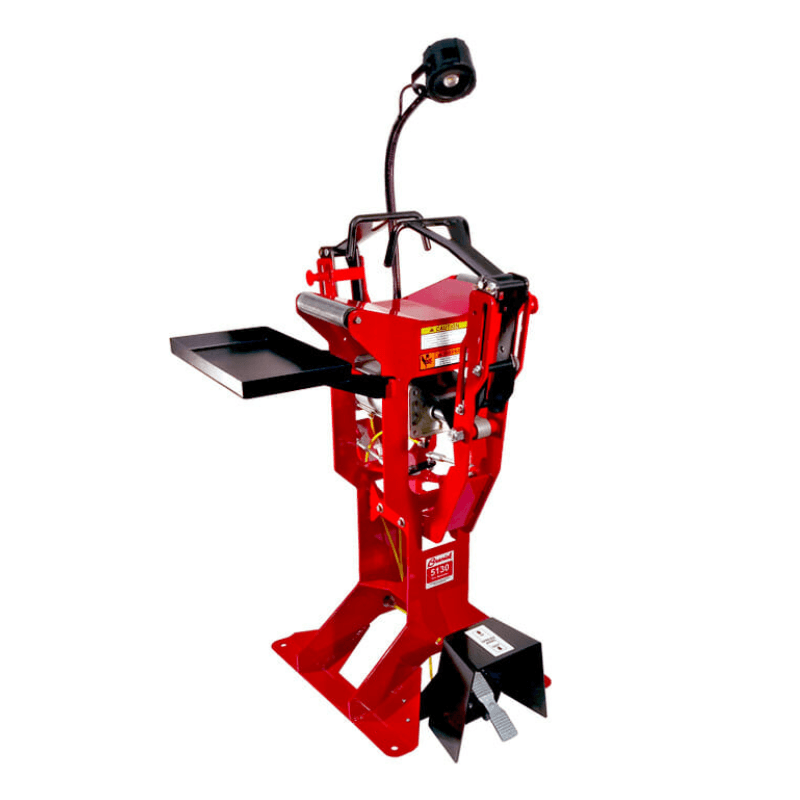

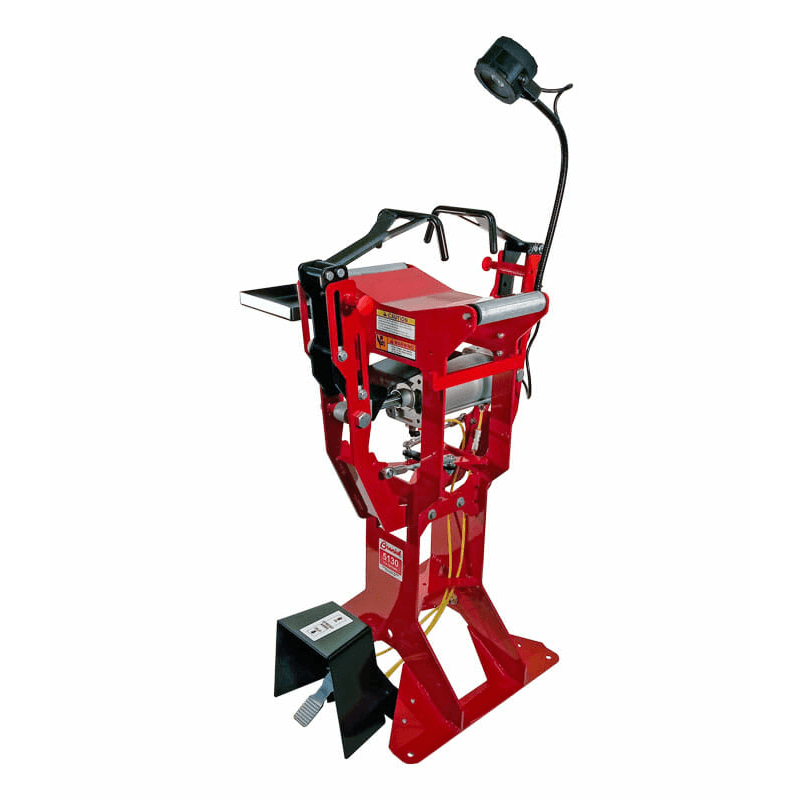

Branick 5130 Tire Spreader Machine - Air Powered

5130 Tire Spreader Machine

The Branick 5130 Tire Spreader is designed for passenger and light truck tire inspection and repair, providing air-powered spreading that reduces the effort required from the technician. Its foot-operated controls keep both hands available for working on the tire, while the stable base can be bolted to the floor for added support during service. The machine handles tires up to 14 inches in cross-section and 22.5 inches in bead diameter.

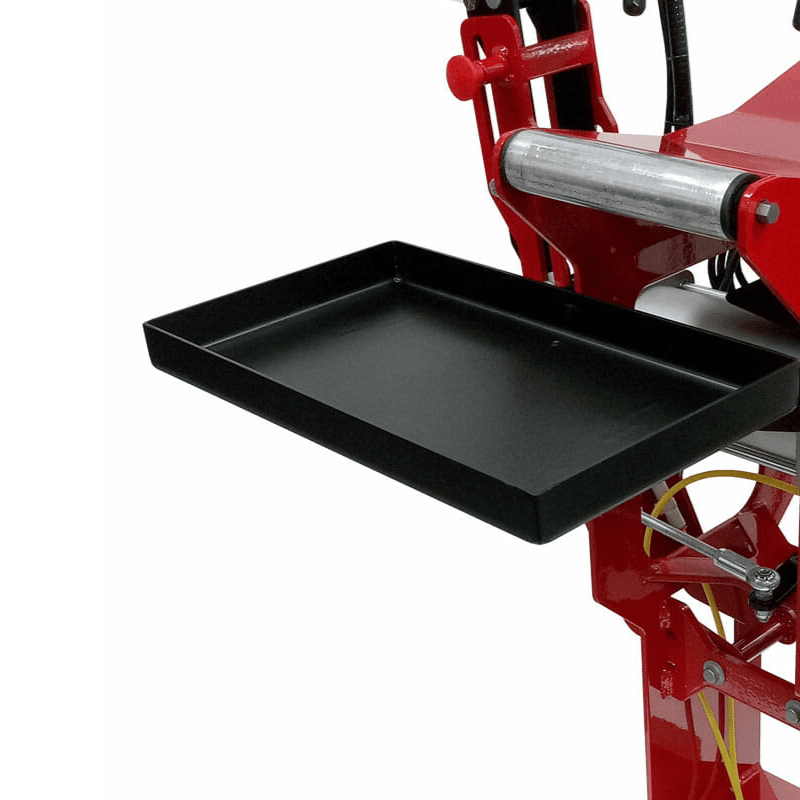

The 5130 includes a spring-locking pin adjustment for quick spread-arm positioning and zinc-plated rollers that allow the tire to rotate smoothly during inspection. A built-in tool tray keeps frequently used tools and accessories close at hand, helping maintain an organized work area. Its 36-inch working height provides a practical position for routine tire service.

For improved visibility, the Branick 5130 features a high-impact industrial LED light mounted on a flexible arm. The RMA-compliant LED bulb provides a minimum of 200 foot-candles of illumination, making it easier to inspect and repair tires. With its air-powered operation, integrated lighting, rollers, and tool storage, the 5130 is suited for busy tire service applications.

Tire Spreader Machine 5130 Specification

• Maximum Bead Diameter: 22.5"
• Maximum Tire X-Section: 14" / 356 mm
• Spread Arm Type: Air Powered

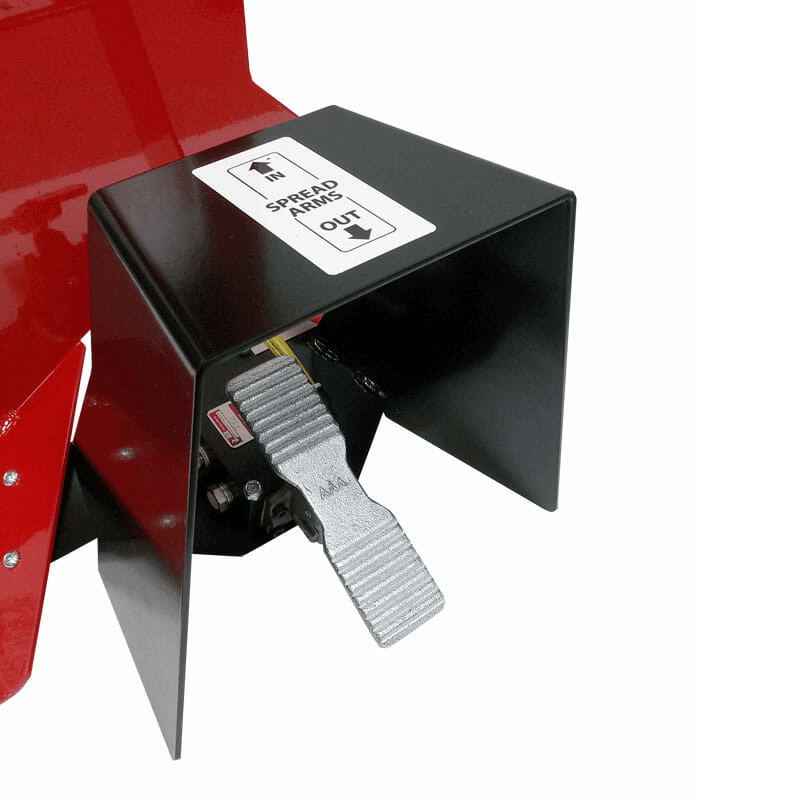

• Spread Arm Operation: Foot
• Working Height: 36"
• Light: LED
• Roller: Yes
• Hook Adjustment: Spring Locking Pin
• Tool Tray: Yes
• Shipping Weight: 150 lbs.
• Dimensions: 27" W × 25" D × 40" L

5130 Tire Spreader Machine Special Features

• Designed for passenger and light truck tires
• Air-powered spread arms for easier tire service
• Foot-operated spreading controls
• Handles tires up to 22.5" bead diameter
• Supports tire cross-sections up to 14"
• Spring-locking pin for spread-arm adjustment
• Zinc-plated rollers for smooth tire rotation
• Flexible-arm industrial LED inspection light
• RMA-compliant LED bulb with minimum 200 foot-candles
• Integrated tool tray for convenient accessory storage
• Stable base can be bolted to the floor
• 36" working height
• Made in USA

Branick 5130 Manuals

  Branick 5130 Installation and Operations Manual

  Branick 5130 Spec Sheet
