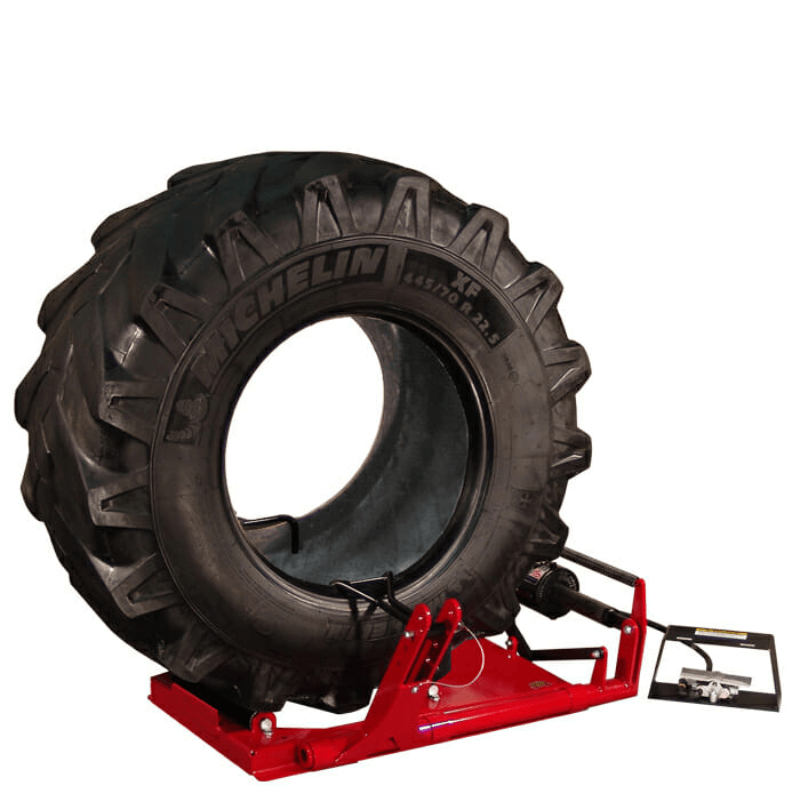

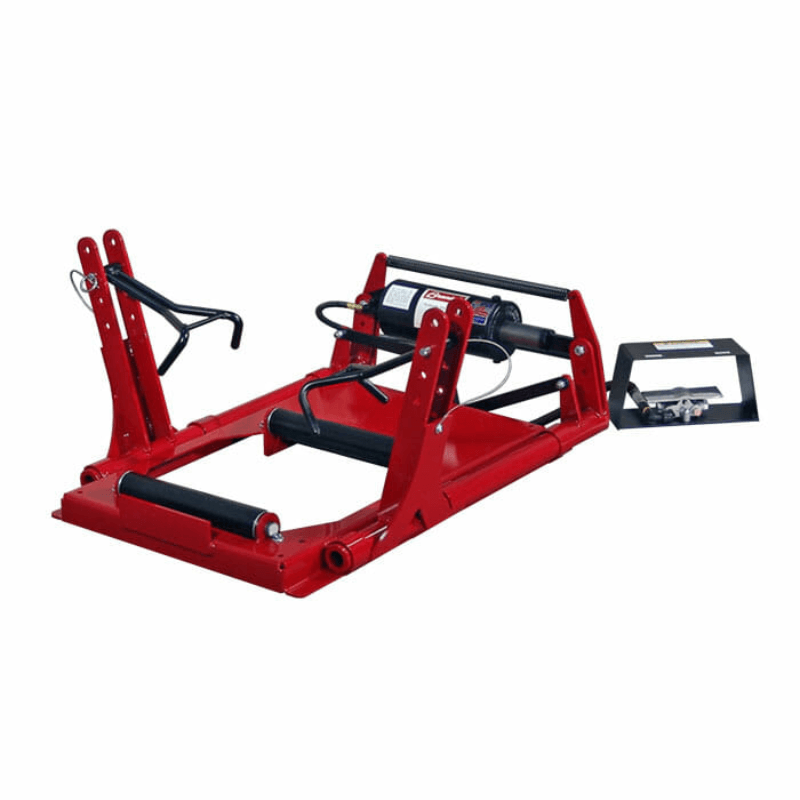

Branick 5200 Heavy-Duty Tire Spreader Machine

5200 Heavy-Duty Tire Spreader Machine

Tire repairs in the field can be difficult when you need to work with limited space and heavy tires. The Branick 5200 Heavy-Duty Tire Spreader provides a convenient ground-level solution for servicing tires from 15" through standard truck tire applications, helping technicians access the tire without relying on bulky shop equipment.

Designed with air-powered, foot-operated spread arms and adjustable hooks, the 5200 makes tire positioning and spreading easier during repairs. Its 4" working height and roll-on design allow tires to be positioned at ground level, while the lock-pin hook adjustment helps accommodate different tire sizes and cross-sections up to 24".

Compact and portable, the Branick 5200 is especially well suited for service trucks and mobile tire repair operations. With its durable design, 160-lb. shipping weight, and compact footprint, it provides a practical tire spreading solution for technicians who need reliable equipment in the field.

Tire Spreader Machine 5200 Specification

• Maximum Bead Diameter: OTR/AG
• Maximum Cross-Section: 24" / 610 mm
• Spread Arm Type: Air Powered
• Spread Arm Operation: Foot
• Working Height: 4"
• Tire Lift/Roll On: Roll On
• Light: None
• Hook Adjustment: Lock Pin
• Shipping Weight: 160 lbs.
• Dimensions: 38.5" W × 25" D × 18" L
• Application: Service truck ground-level spreader

5200 Heavy-Duty Tire Spreader Machine Special Features

• Air-powered spread arms
• Foot-operated spread arm control
• Ground-level 4" working height
• Adjustable spread hooks with lock-pin adjustment
• Roll-on tire loading
• Handles tires from 15" through standard truck tire applications
• Maximum cross-section of 24" / 610 mm
• Ideal for service trucks and field repairs
• Compact design for mobile tire service
• Made in USA

Branick 5200 Manuals

  Branick 5200 Installation and Operations Manual

  Branick 5200 Spec Sheet
