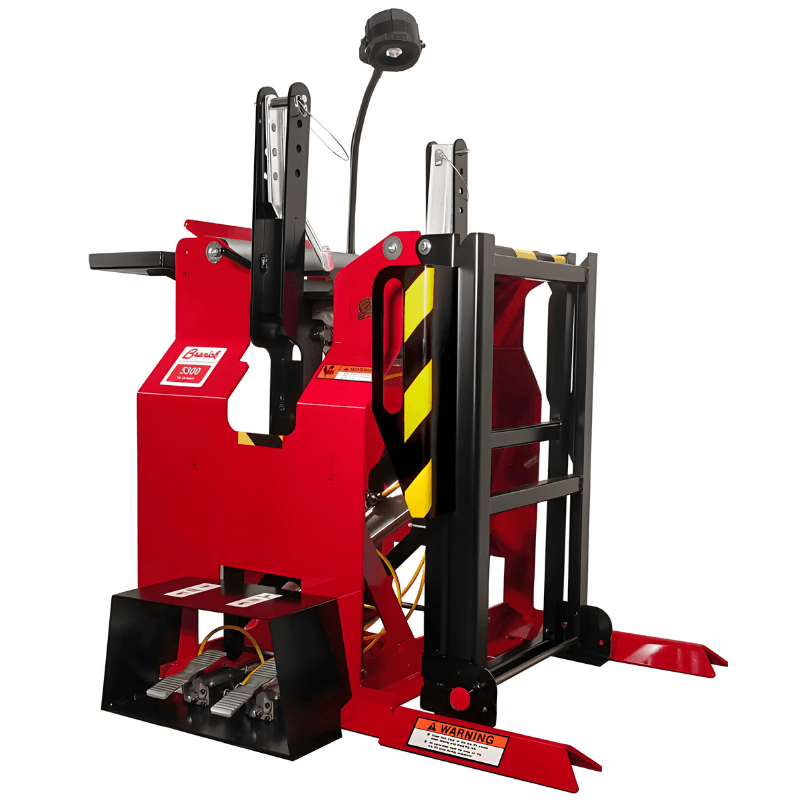

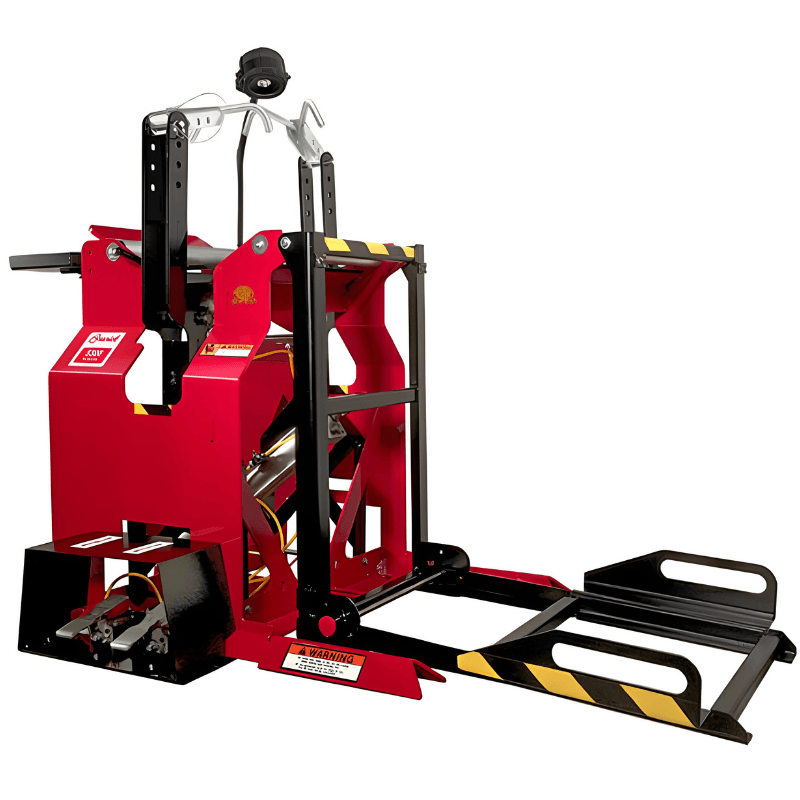

Branick 5300 Heavy-Duty Tire Spreader Machine

5300 Heavy-Duty Tire Spreader Machine

Tire inspection and repair can become physically demanding when technicians have to lift and position heavy tires by hand. The Branick 5300 Heavy-Duty Tire Spreader combines air-powered tire spreading and lifting to reduce manual handling and make tire service more efficient. Its foot-operated controls keep both hands free, allowing technicians to focus on inspection and repair.

Working at a comfortable 31" height, the 5300 features zinc-plated rollers that make rotating the tire easier during service. An included RMA-compliant LED light provides improved visibility, while the detent lock-pin hook adjustment helps accommodate different tire sizes. The lift can also be locked in the up or down position when not in use.

Built for professional tire service, the Branick 5300 includes a convenient tool tray for keeping equipment within reach and a lift-out debris tray for easier cleanup. With super single capability and a maximum 18" tire cross-section, it is a practical choice for commercial tire shops, inspection areas, and service facilities.

Tire Spreader Machine 5300 Specification

• Maximum Bead Diameter: 24.5"
• Maximum Cross-Section: 18" / 458 mm
• Spread Arm Type: Air Powered
• Spread Arm Operation: Foot
• Working Height: 31"
• Tire Lift/Roll On: Lift
• Light: Included
• Hook Adjustment: Detent Lock Pin
• Shipping Weight: 350 lbs.
• Dimensions: 34" W × 35" D × 38" L
• Additional Information: Super single capable; locking lift; tool tray
• Made in USA

5300 Heavy-Duty Tire Spreader Machine Special Features

• Air-powered tire spreading and lifting
• Foot-operated controls keep both hands free
• 31" working height
• RMA-compliant LED work light included
• Zinc-plated rollers for easy tire rotation
• Detent lock-pin hook adjustment
• Locking tire lift
• Lift-out debris tray for easy cleanup
• Attached tool tray keeps tools within reach
• Super single capable

Branick 5300 Manuals

  Branick 5300 Installation and Operations Manual

  Branick 5300 Brochure
