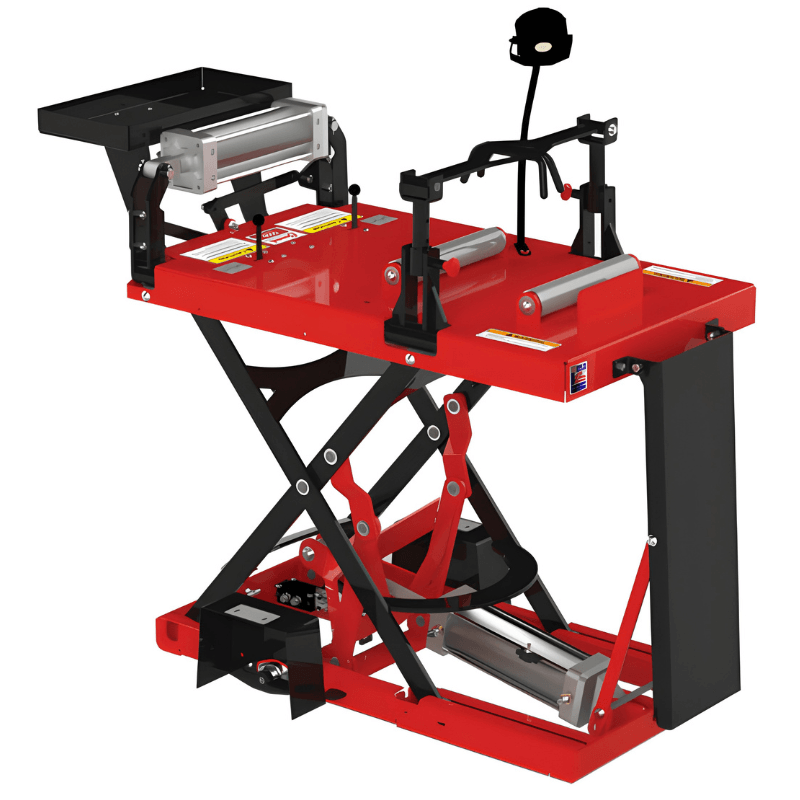

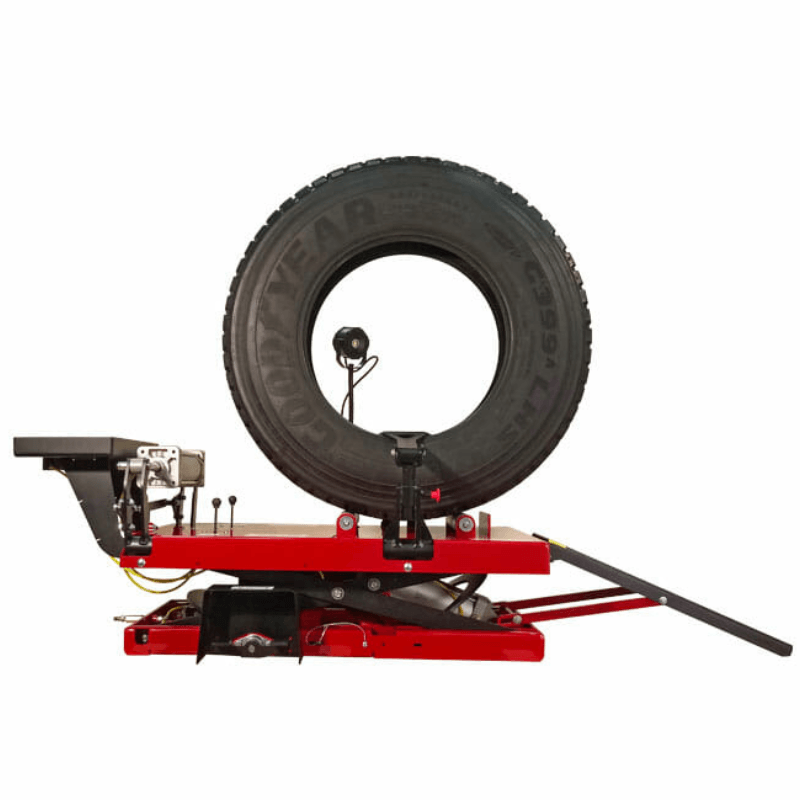

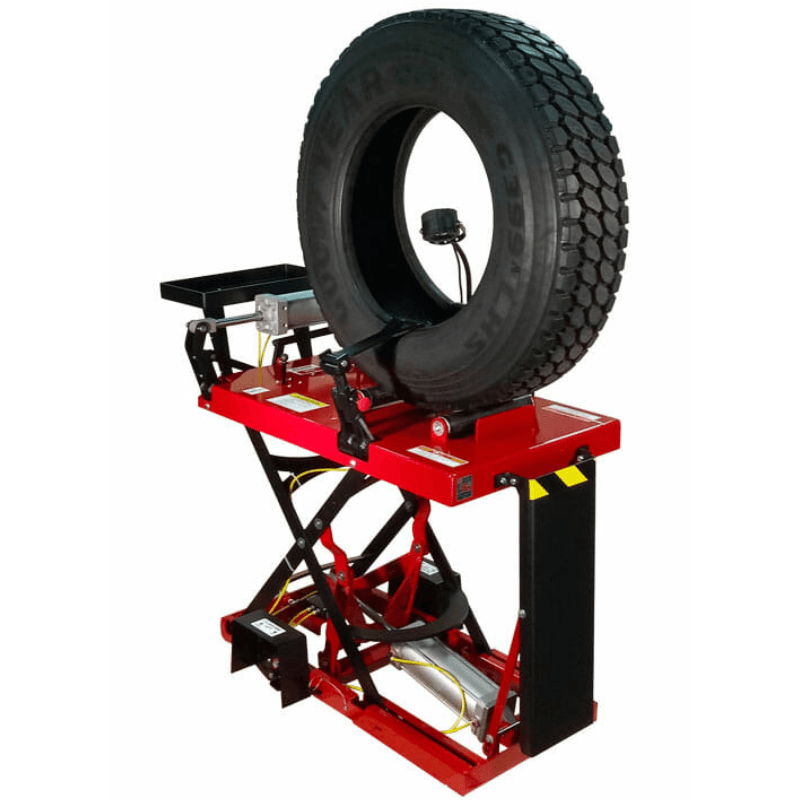

Branick 5550 Heavy-Duty Tire Spreader Machine

5550 Heavy-Duty Tire Spreader Machine

Tire inspection and repair can become difficult when limited access, heavy lifting, and awkward working positions slow down the technician. The Branick 5550 Heavy-Duty Tire Spreader is designed with an open, ergonomic work area that provides improved access around the tire while reducing the need for stooping or manual lifting. Its auto ramp allows the tire to be rolled directly into position, while the foot-operated lift makes height adjustments easier.

The 5550 features an adjustable working height from 14" to 35.5", allowing technicians to position the tire at a comfortable level for inspection and repair. Hand-operated spreading provides direct control, while the low-profile spread arms and wide rollers provide better access and support for wider tires. An RMA-compliant LED light is included as standard to provide clear visibility during service.

Built for efficient tire repair stations, the Branick 5550 also includes an attached tool tray and four air tool ports for keeping frequently used equipment close at hand. Foot controls on both sides operate the lift, while the anti-pinch ramp linkage adds an additional safety feature during loading. Its compact 28" × 58" footprint makes the 5550 a practical choice for professional tire facilities where workspace is limited.

Tire Spreader Machine 5550 Specification

• Maximum Cross-Section: Up to 18" / 455 mm
• Working Height: Adjustable, 14"–35.5"
• Maximum Bead Diameter: Up to 24.5"
• Footprint: 28" × 58"
• Shipping Size: 32" × 29" × 62"
• Shipping Weight: 440 lbs.
• Spread Operation: Hand Operated

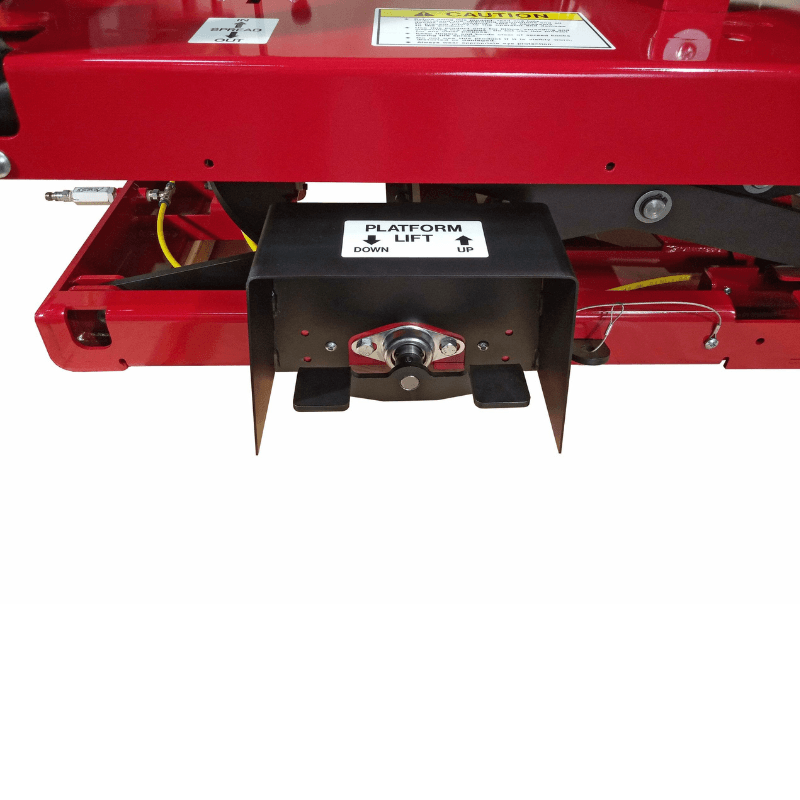

• Lift Operation: Foot Operated

5550 Heavy-Duty Tire Spreader Machine Special Features

• Ergonomic open work area for improved tire access
• Hand-operated spread arms
• Foot-operated tire lift
• Adjustable working height from 14"–35.5"
• Auto ramp for easy tire loading
• Anti-pinch ramp linkage
• Low-profile spread arms
• Wide rollers for wider tires
• RMA-compliant LED work light
• Attached tool tray
• 4 air tool ports for accessories
• Compact, space-saving design
• Made in the USA

Branick 5550 Manuals

  Branick 5550 Installation and Operations Manual

  Branick 5550 Spec Sheet
