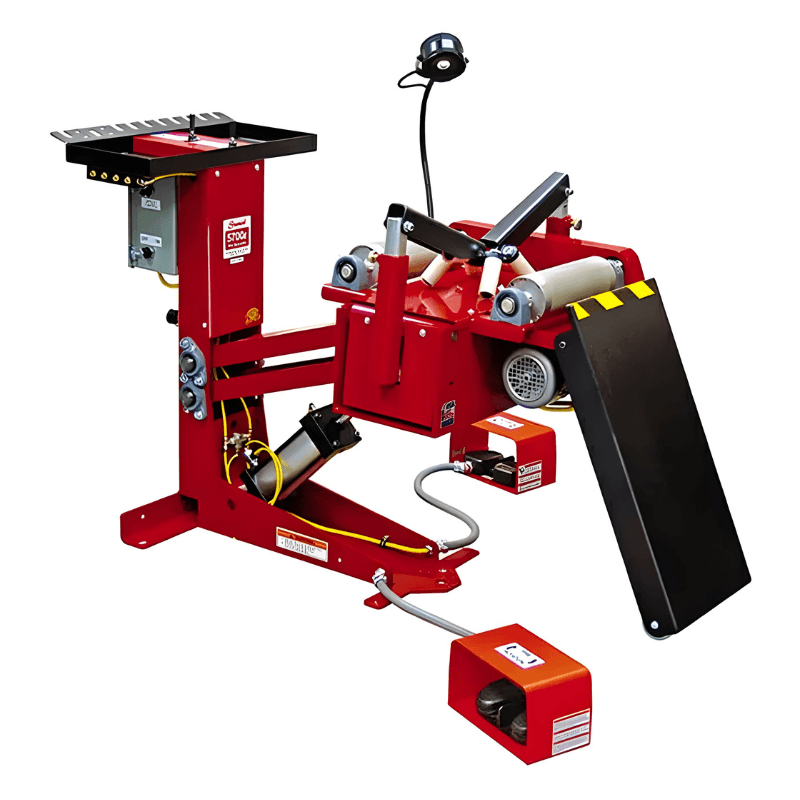

Branick 5700 Heavy-Duty Tire Spreader Machine

5700 Heavy-Duty Tire Spreader Machine

Tire inspection can become difficult when technicians have to repeatedly bend, lift, and reposition heavy tires. The Branick 5700 Heavy-Duty Tire Spreader provides an adjustable working height and powered tire handling to make inspection more convenient while reducing unnecessary lifting and stooping. Its roll-on lifting platform and auto-ramp help position tires with less manual effort.

The 5700 features sure-grip rollers with adjustable bi-directional rotation, allowing technicians to rotate the tire in either direction during inspection. Electric motor operation provides variable-speed rotation with reduced operating noise, while foot controls on both sides of the machine allow convenient operation from either position. A powerful RMA-compliant LED light provides added visibility around the tire.

Designed for professional tire inspection areas, the Branick 5700 also provides convenient access to tools and shop utilities. Its integrated tool tray includes four air ports and two electrical outlets, keeping frequently used equipment close at hand. With an adjustable 15"–32" working height and support for tires up to 24.5" bead diameter, it is well suited for commercial tire service facilities.

Tire Spreader Machine 5700 Specification

• Maximum Bead Diameter: 24.5"
• Maximum Cross-Section: 18" / 458 mm
• Spread Arm Type: Air Powered
• Spread Arm Operation: Hand
• Working Height: Adjustable, 15"–32"
• Tire Lift/Roll On: Roll-On Lifting Platform
• Light: Included
• Hook Adjustment: Lock Pin
• Shipping Weight: 660 lbs.
• Dimensions: 47" W × 29" D × 65" L
• Additional Information: Electric reversible rotation; tool tray with 4 air ports; 2 electrical outlets

5700 Heavy-Duty Tire Spreader Machine Special Features

• Air-powered tire spreading
• Adjustable working height from 15"–32"
• Roll-on lifting platform with auto-ramp
• Electric reversible tire rotation
• Variable-speed electric motor
• Sure-grip rollers with adjustable bi-directional rotation
• Foot controls on both sides
• RMA-compliant LED work light
• Lock-pin hook adjustment
• Tool tray with 4 air ports
• 2 electrical outlets
• Designed for tire inspection and service
• Made in USA


Branick 5700 Manuals

  Branick 5700 Installation and Operations Manual

  Branick 5700 Spec Sheet
