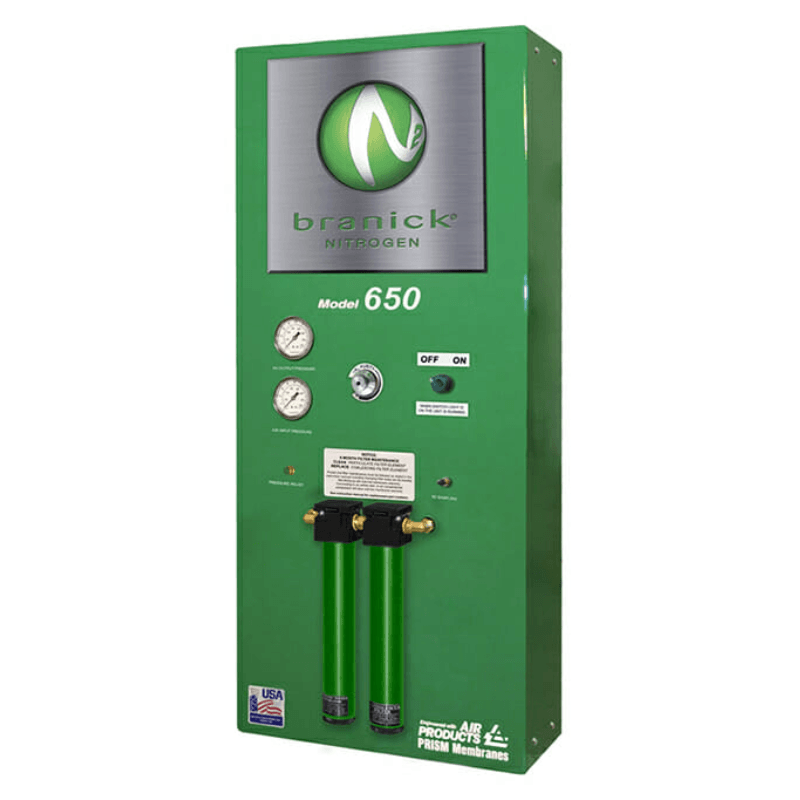

Branick 650 Wall Mount Nitrogen Inflation System

650 Wall Mount Nitrogen Inflation System

The Branick 650 Wall Mount Nitrogen Inflation System is built for shops that need more nitrogen output but do not have room for a floor-standing generator. When limited floor space makes larger systems difficult to install, the wall-mounted design provides a practical solution while supporting passenger, light truck, and light-volume commercial truck tire service.

PRISM membrane technology helps the 650 produce consistent nitrogen while also acting as an air dryer. With 8.6 CFM nitrogen output, adjustable purity from 95% to 99.5%, and a 1.9:1 air-to-nitrogen ratio, the Model 650 provides higher output in a compact package. Front-mounted controls, pressure gauges, an adjustable purity setting, automatic shut-off, and a nitrogen purity test port make the system simple to monitor and operate.

Wall Mount Inflation System 650 Specification

• Model: 650
• Product Type: Wall Mount Nitrogen Inflation System
• Air Input Range: 100–175 PSI
• Air Input: 16.8 CFM
• Nitrogen Output: 8.6 CFM
• Nitrogen Purity: Adjustable, 95%–99.5%
• Operating Temperature: 40°–150°F
• Inlet Port: 3/8" NPT Female
• Outlet Port: 3/8" NPT Female
• Nitrogen Purity Port: Yes
• Auto Shut-Off: Yes
• Pre-Filters: 2
• N2 Outlet Pressure Gauge: Yes
• Air Inlet Pressure Gauge: Yes
• Mounting: Wall Mount
• Shipping Weight: 135 lbs.
• Dimensions: 8" D × 20" W × 47" H

650 Wall Mount Nitrogen Inflation System Special Features

• PRISM membrane technology
• 1.9:1 air-to-nitrogen ratio
• Wall-mounted, space-saving design
• 8.6 CFM nitrogen output
• Adjustable nitrogen purity from 95%–99.5%
• Fully front-mounted controls
• Automatic compressor-saving shut-off
• Air inlet and nitrogen outlet pressure gauges
• Nitrogen purity test port
• Two pre-filters
• Compatible with Branick auto-inflators
• 5 years of free filters
• Suitable for passenger, light truck, and light-volume commercial truck applications

Branick 650 Manuals

  Branick 650 Wall Mount Installation and Operations Manual

  Branick 650 Wall Mount Spec Sheet
