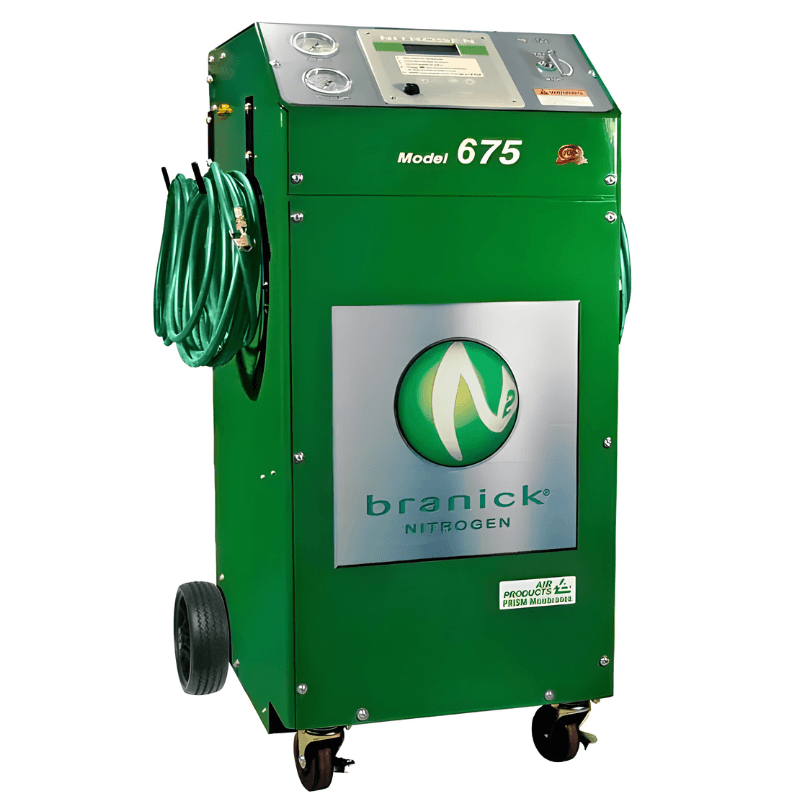

Branick 675 Mobile Nitrogen Inflation System

675 Mobile Nitrogen Inflation System

The Branick 675 Mobile Nitrogen Inflation System is designed for large passenger and light truck facilities that need higher nitrogen output without sacrificing mobility. When a fixed nitrogen generator is not practical, the built-in 30-gallon tank allows technicians to perform passenger vehicle conversions without being tethered to an air source, while the mobile design makes it easy to move between service areas.

The 675 uses PRISM Membrane technology, which also helps dry the incoming air for more consistent nitrogen purity. With 8.0 CFM nitrogen output, adjustable purity from 95% to 99.5%, a hands-free automatic inflator, and four standard hoses, the system is equipped for frequent tire service. Six conversion ports can accommodate dual tires or spares, while the rear auxiliary port can fill an external storage tank for additional nitrogen capacity.

Mobile Inflation System 675 Specification

• Model: 675
• Product Type: Mobile Nitrogen Inflation System
• Air Input Range: 100–175 PSI
• Air Input: 15.6 CFM
• Nitrogen Output: 8.0 CFM
• Nitrogen Purity: Adjustable, 95%–99.5%
• Operating Temperature: 40°–150°F
• Inlet Port: 3/8" NPT Female
• Outlet Port: 3/8" NPT Female
• Nitrogen Purity Port: Yes
• Auto Shut-Off: Yes
• Pre-Filters: 2
• N2 Outlet Pressure Gauge: Yes
• Air Inlet Pressure Gauge: Yes
• Internal Tank: 30 Gallons
• Hoses: 4 Hooks
• Inflator Set Pressure Range: 5–145 PSI
• Inflator Accuracy: ±0.5% Full Scale
• Display Increments: 1 PSI
• Power Supply: 12V DC SLA
• Rechargeable: Yes
• Dimensions: 29" D × 29" W × 48" H
• Weight: 400 lbs.

675 Mobile Nitrogen Inflation System Special Features

• PRISM Membrane technology
• 1.9:1 air-to-nitrogen ratio
• Mobile design with rechargeable 12V DC power
• Internal 30-gallon nitrogen tank
• 8.0 CFM nitrogen output
• Hands-free automatic tire inflator
• Four hoses with clip hooks included
• Six conversion ports for dual tires and spares
• Adjustable nitrogen purity from 95%–99.5%
• Nitrogen purity test port
• Automatic shut-off
• Air inlet and N2 outlet pressure gauges
• Auxiliary port for filling external storage tanks
• Two pre-filters
• 5 years of free filters

Branick 675 Manuals

  Branick 675 Mobile Installation and Operations Manual

  Branick 675 Mobile Spec Sheet
