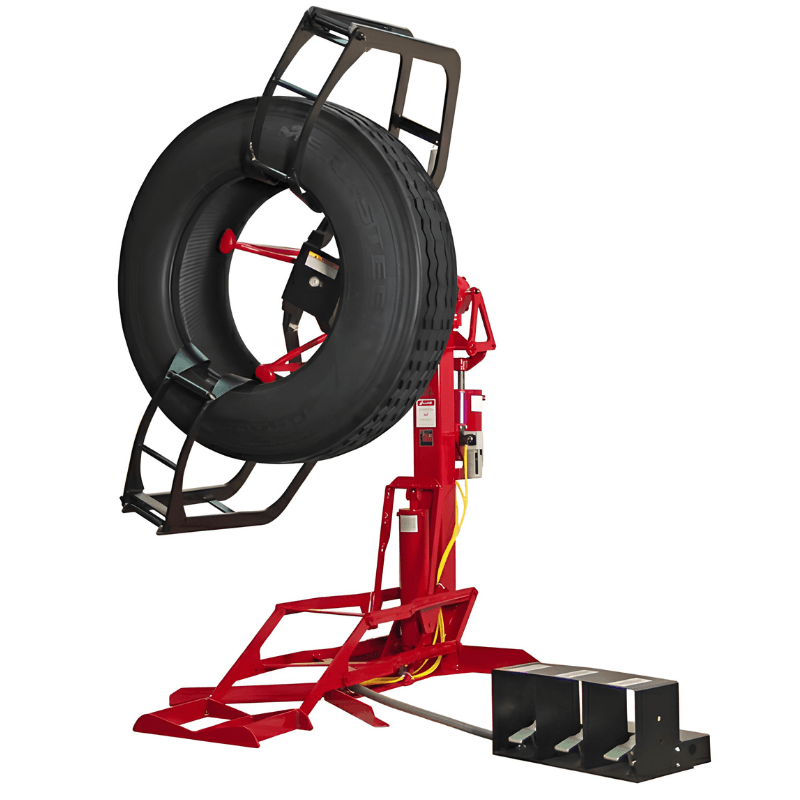

Branick EF Full Circle Tire Spreader Machine

EF Full Circle Tire Spreader Machine

Inspecting and repairing large tires can be difficult when technicians need to repeatedly reposition the tire for access. The Branick EF Full Circle Tire Spreader provides a powered solution for passenger, bus, truck, super-single, and tractor tires, allowing the tire to rotate a full 360° for inspection, repair, or buffing. Its air-powered design helps reduce manual handling during tire service.

The EF uses floor-mounted foot controls to operate the tire lift and spread functions, keeping operation convenient while working around the machine. The spread arms pivot directly into the tire beads, providing access to the tire interior for inspection and repair. With a 47.75" working height and lift-style tire loading, the machine provides a practical working position for professional tire service.

Designed to handle road tires through 24.5" cross-sections, the Branick EF is suited for applications ranging from passenger and commercial tires to super singles and tractor tires. Its semi-automatic hook adjustment and 360° rotation make it a versatile choice for tire inspection, repair, and buffing operations.

Tire Spreader Machine EF Specification

• Maximum Bead Diameter: OTR/AG
• Maximum Cross-Section: Up to and including 24.5"
• Spread Arm Type: Air Powered
• Spread Arm Operation: Foot
• Working Height: 47.75"
• Tire Lift/Roll On: Lift
• Light: None
• Hook Adjustment: Semi-Automatic
• Shipping Weight: 500 lbs.
• Dimensions: 60" W × 29" D × 78" L
• Additional Information: Handles any road tire; 360° tire rotation

EF Full Circle Tire Spreader Machine Special Features

• Air-powered tire spreading system
• 360° tire rotation for complete inspection
• Handles passenger, bus, truck, super-single, and tractor tires
• Floor-mounted foot controls
• Lift-style tire loading
• Spread arms pivot into the tire beads
• Semi-automatic hook adjustment
• 47.75" working height
• Handles road tires through 24.5" cross-section
• Suitable for inspection, repair, and buffing
• Made in USA

Branick EF Manuals

  Branick EF Installation and Operations Manual

  Branick EF Spec Sheet
