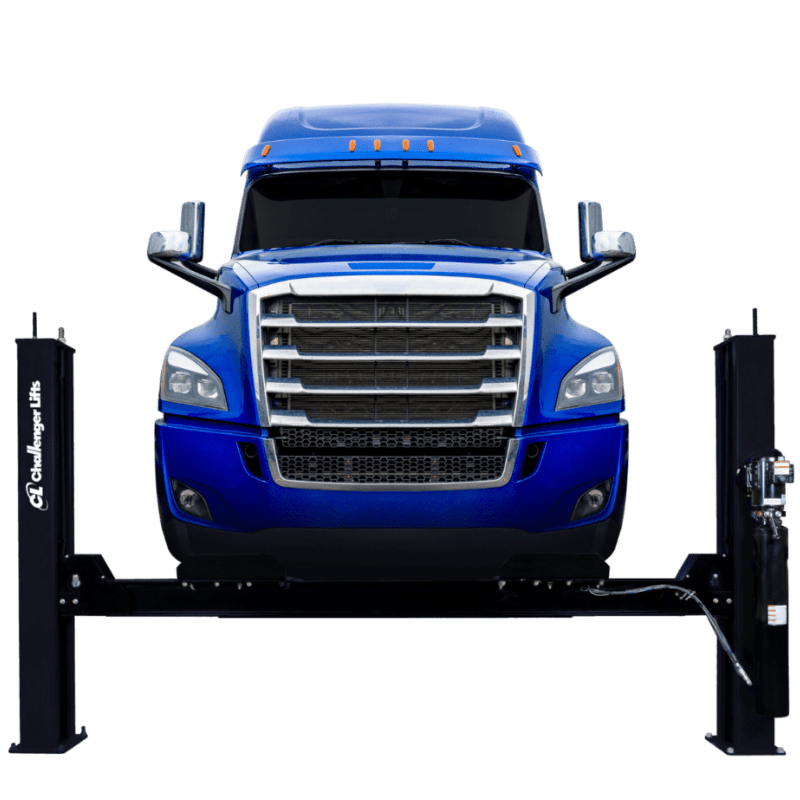

Challenger 4030 Series 30K Alignment 4 Post Lift - ALI Certified

4030 Series 30K Alignment Lift

For shops servicing heavy-duty trucks, buses, and long-wheelbase vehicles, having the right alignment lift can make a major difference in productivity. Standard lifts may lack the capacity, runway length, or versatility needed for larger commercial vehicles, making heavy-duty service and alignment jobs more difficult and time-consuming.

The Challenger 4030 Series 4-Post Alignment Lift is built for demanding commercial applications. Its 30,000 lb lifting capacity provides the strength needed for large vehicles.  A rugged cable-driven lifting system, single-point air lock release, and compatibility with modern wheel alignment equipment make this combination a versatile solution for shops performing both general repair and heavy-duty alignment work.

4030 Series Specification

• Capacity: 30,000 lbs

• Style: Alignment Lift

• Max Wheelbase:

  • 4030SAX: 244.5"
  • 4030EAX: 281"
  • 4030XAX: 317"

• Rise Height: 71.75"

• Overall Length:

  • 4030SAX: 308"
  • 4030EAX: 344"
  • 4030XAX: 380"

• Overall Width: 172.75"

• Inside Columns: 152"

• Between Columns:

  • 4030SAX: 246.125"
  • 4030EAX: 282.625"
  • 4030XAX: 318.625"

• Column Height: 92.25"

• Runway Width: 24"

• Runway Height: 8.5"

• Width Between Runways: 46" – 52"


• Air Requirement: 90 – 120 PSI

• Motor: 3HP, 208–230V, Single Phase

• Minimum Bay Size: 336" × 204" to 408" × 204"

• Certification: ALI / ETL Certified

• Color: Black

• Concrete Requirements: Minimum of 4"-3500psi

4030 Series 30K Heavy-Duty 4-Post Alignment Lift Special Features

• 30,000 lb heavy-duty lifting capacity

• Ideal for large trucks, buses, and commercial vehicles

• Closed front design for enhanced stability

• Multiple length configurations for different wheelbases

• Compatible with modern camera alignment systems

• Single-point air-actuated lock release system

• Adjustable lock ladders for uneven floor installations

• Recessed turn plate pockets (alignment models)

• Diamond-plate approach ramps for traction

• Built-in runway rail system for rolling jacks and accessories

• Durable cable-driven system with heavy-duty steel sheaves

• ALI/ETL certified for safety and reliability
