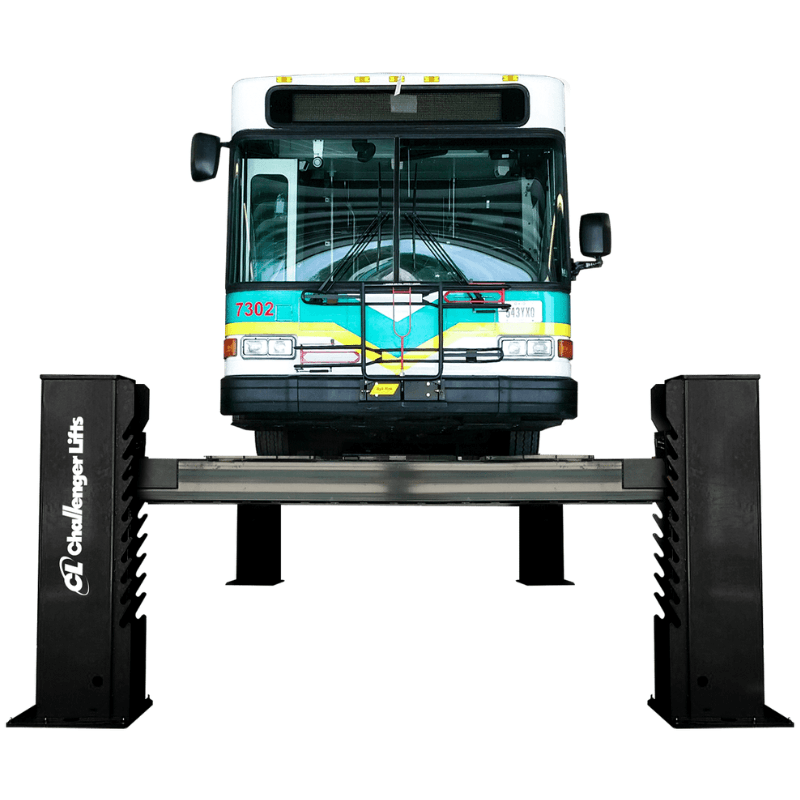

Challenger 44030E 30,000lb 4 Post Lift - Extended Length

44030E 30,000 lb 4-Post Lift - Extended Length

Take on demanding heavy-duty service with the Challenger Lifts 44030E 4-Post Lift. Built for large commercial vehicles and challenging weight distributions, the 44030E provides the strength, stability, and control needed to safely service heavy trucks, including construction, fleet, and waste vehicles.

With a 30,000 lb lifting capacity, the 44030E features a rugged chain-driven lifting system and dual heavy-duty hydraulic cylinders. The front and rear can be operated together or independently, providing greater control when lifting vehicles with uneven axle loads. Wide, diamond-plate runways provide excellent traction and make vehicle positioning easier and more secure.

Designed for demanding commercial shops and fleet facilities, the Challenger 44030E combines heavy-duty construction, dependable performance, and versatile lifting capability for servicing today's larger work trucks and commercial vehicles.

Challenger 30,000lb Extended 4 Post Lift Specification

• Model: 44030E- Extended Model

• Capacity: 30,000 lbs

• Max Wheelbase: 290"

• Rise Height: 68"

• Overall Length: 355.5"

• Overall Width: 149.5"

• Inside Columns: 132.5"

• Between Columns (front to back): 293.75"

• Overall Height: 92"

• Runway Width: 24"

• Runway Height: 9"

• Width Between Runways: 54" – 75"

• Motor: 3HP, 208–230V, Single Phase

• Amps: 30A

• Rise Time: 105 seconds

• Color: Black

• Concrete Requirements: Minimum of 4"-3000psi

44030E Heavy-Duty Chain-Driven 4-Post Lift Special Features

• 30,000 lb heavy-duty lifting capacity

• Chain-driven system with dual heavy-duty lift cylinders

• Synchro-power system for variable or synchronized lifting

• Ideal for trucks, buses, and heavy axle vehicles

• Wide runways for improved drive-on safety

• Diamond-plate runways and ramps for superior traction

• Single-point air-actuated lock release system

• Designed for handling uneven weight distribution

• Compatible with optional heavy-duty rolling jacks

• Durable construction for long-term industrial use

Challenger 44030 Manual

  Challenger 44030 Installation and Operations Manual

  Challenger 44030 Spec Sheet
