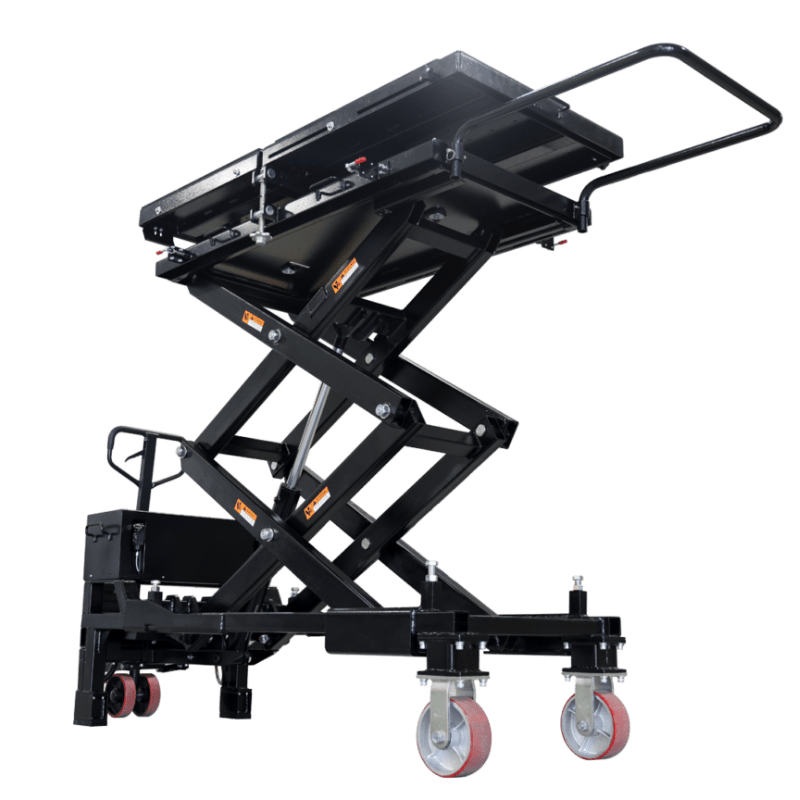

Challenger BT3300 3.3K Lifting Table

BT3300 3,300 lb Lift Table – EV Battery & Drivetrain

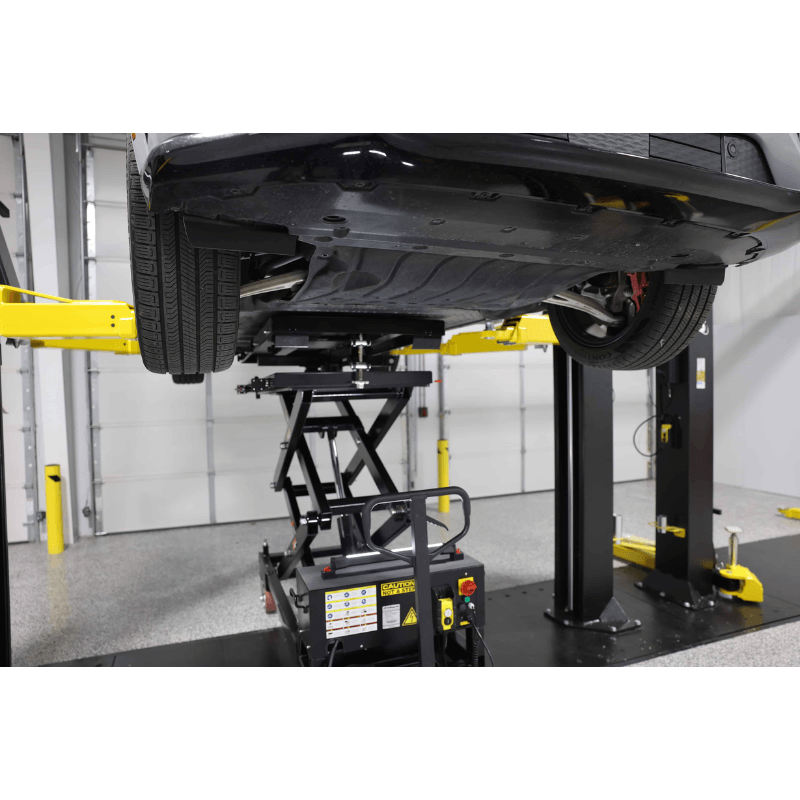

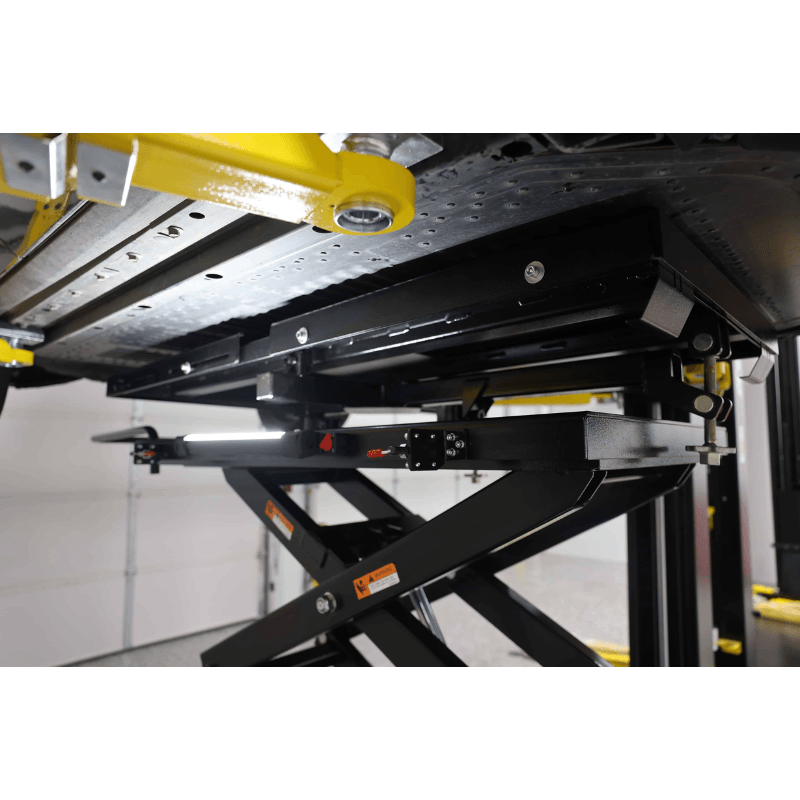

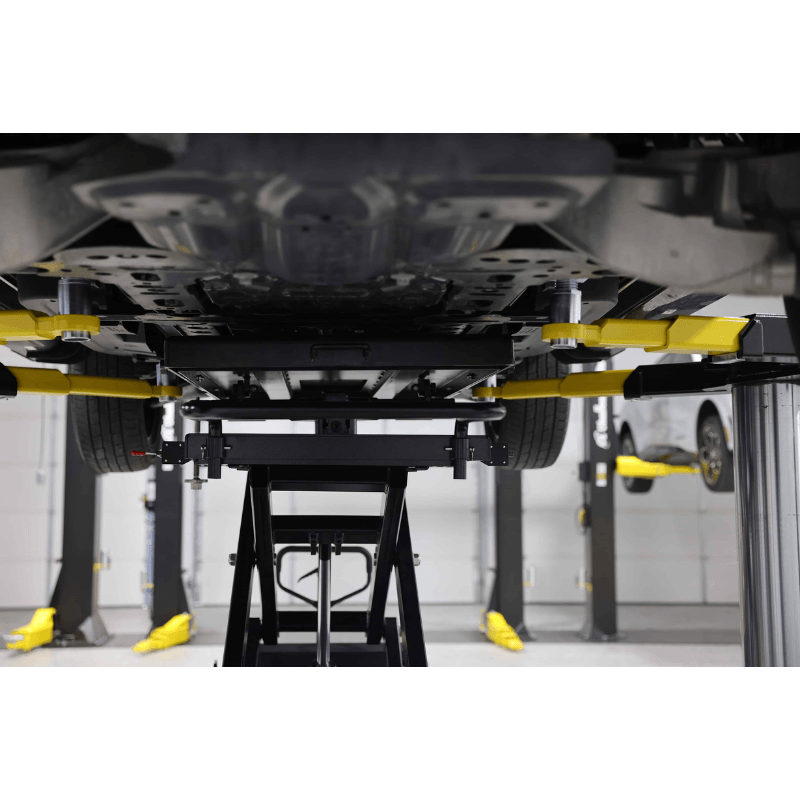

Upgrade your shop’s capability with the Challenger Lifts BT3300 Lift Table, engineered specifically for electric vehicle service and heavy component handling. With a 3,300 lb capacity and an impressive rise height of over 76 inches, this scissor-style lift table gives technicians the reach and control needed to safely remove and install EV batteries, engines, and drivetrains.

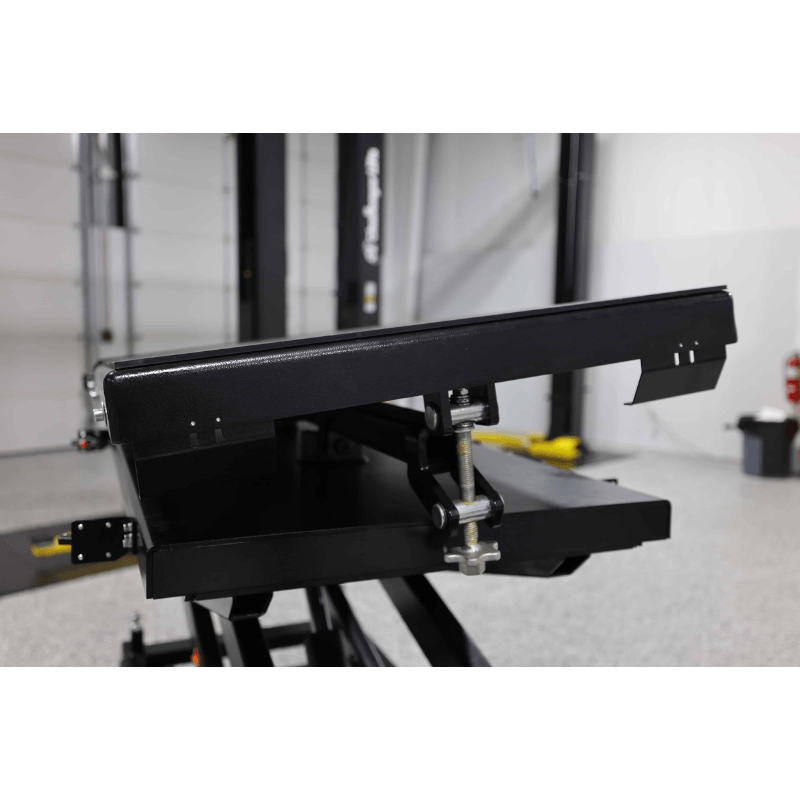

Designed for precision and efficiency, the BT3300 features a tilting and side-shifting top plate with 6° of angle adjustment making alignment of high-voltage batteries and components faster and more accurate. Its pallet-jack style handle ensures smooth maneuverability across the shop, while the simple pendant control keeps operation easy and intuitive. Whether you're servicing EVs or traditional vehicles, this lift table delivers versatility, safety, and performance.

BT-3300 Specification

• Model: BT3300

• Capacity: 3,300 lbs

• Rise Height: 76.77"

• Collapsed Height: 29.53"

• Platform Adjustment Height: 1.77"

• Platform Length: 68.54" – 81.34"

• Platform Width: 31.50"

• Platform Height: 9.02" (±1.77")

• Base Height: 8.07"

• Wheel Diameter: 7.87"

• Overall Length: 116.38"

• Motor: 2 HP

• Power Supply: 110V / 1 Phase / 60 Hz

• Current Draw: 14 Amps

• Control Voltage: 24V

• Hydraulic Pressure: 3625 PSI

• Safety Limit Switch: Yes

• Full Stroke Time (Rated Load): 45s / 70s

• Full Descent Time (Rated Load): 55s

Challenger Lifting Table Special Features

• 3,300 lb lifting capacity for EV batteries and components

• Scissor-style lifting mechanism for stability and strength

• Maximum lift height of 76.77" for extended reach

• 6° tilting capability for precise alignment

• Side-shift top plate for easier installation and removal

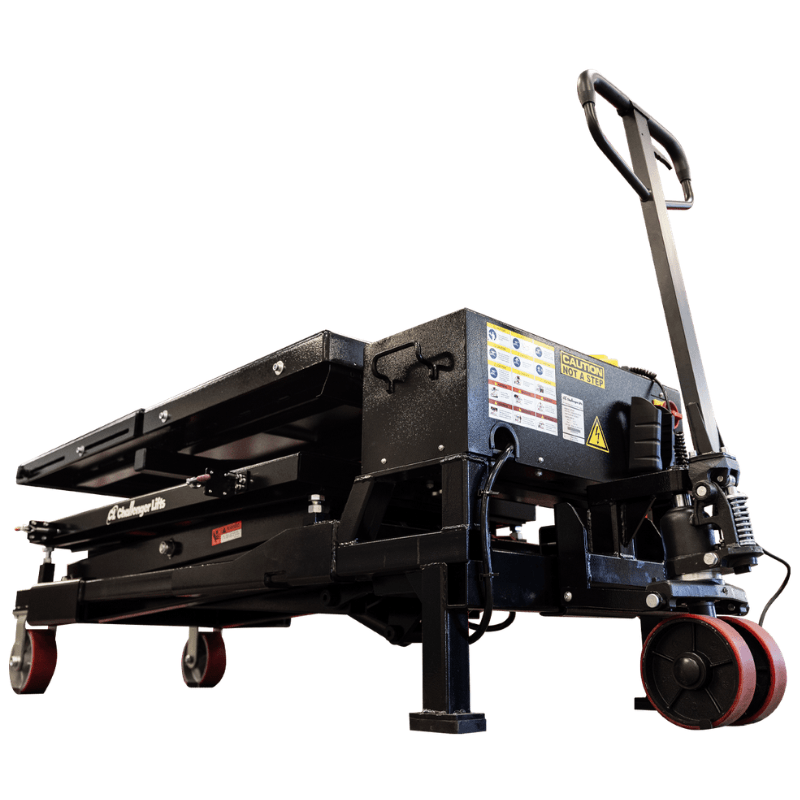

• Pallet-jack style handle for smooth maneuverability

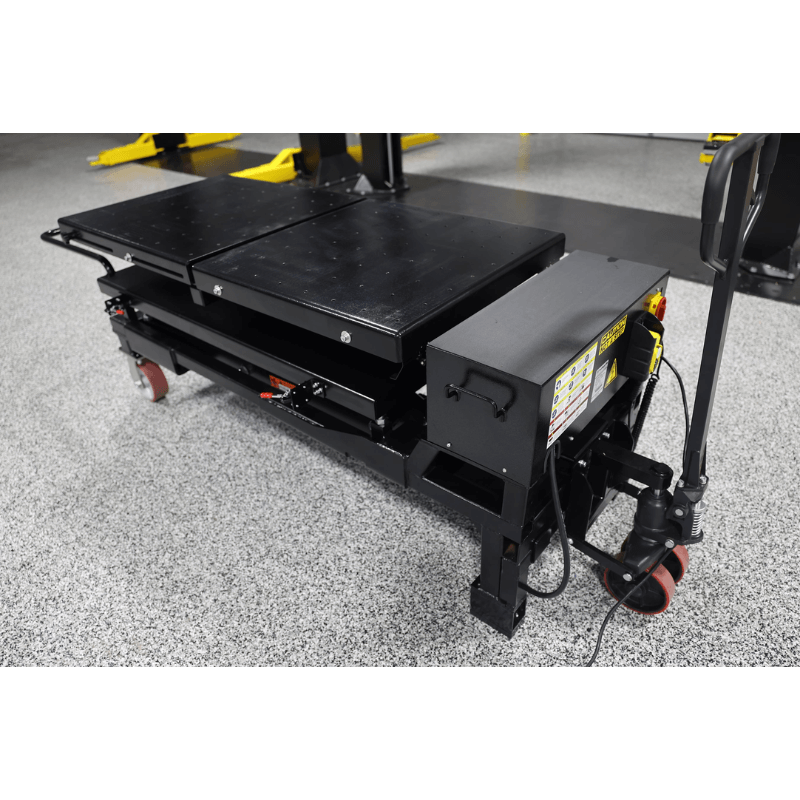

• Adjustable and extendable platform design

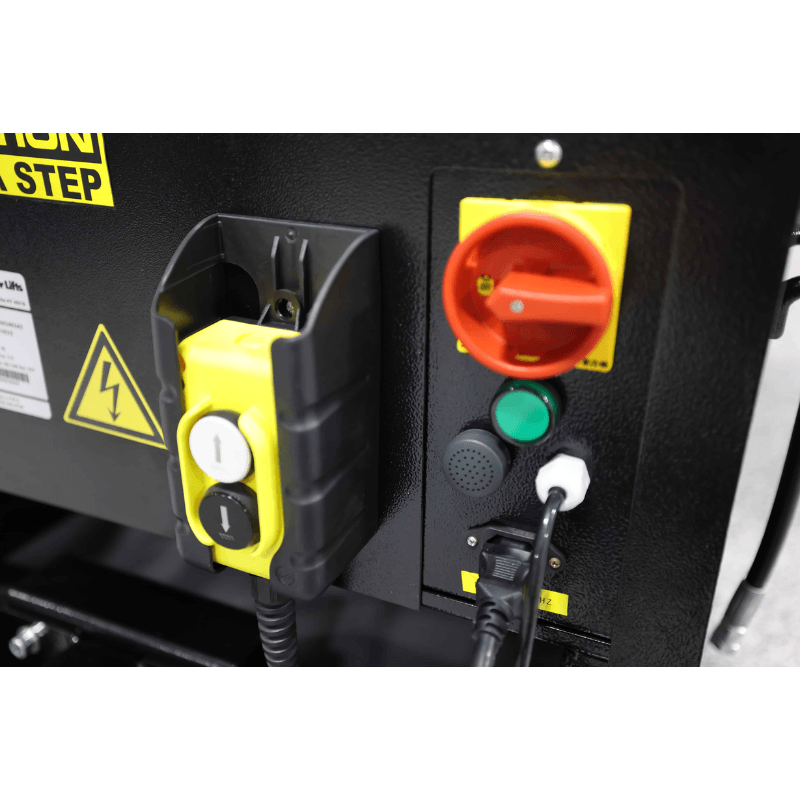

• Pendant control for simple operation

• Plugs into standard 110V outlet

• Meets ASME PASE-2019 safety standards

Challenger BT3300 Manual

  Challenger BT3300 Installation and Operations Manual

  Challenger BT3300 Spec Sheet
