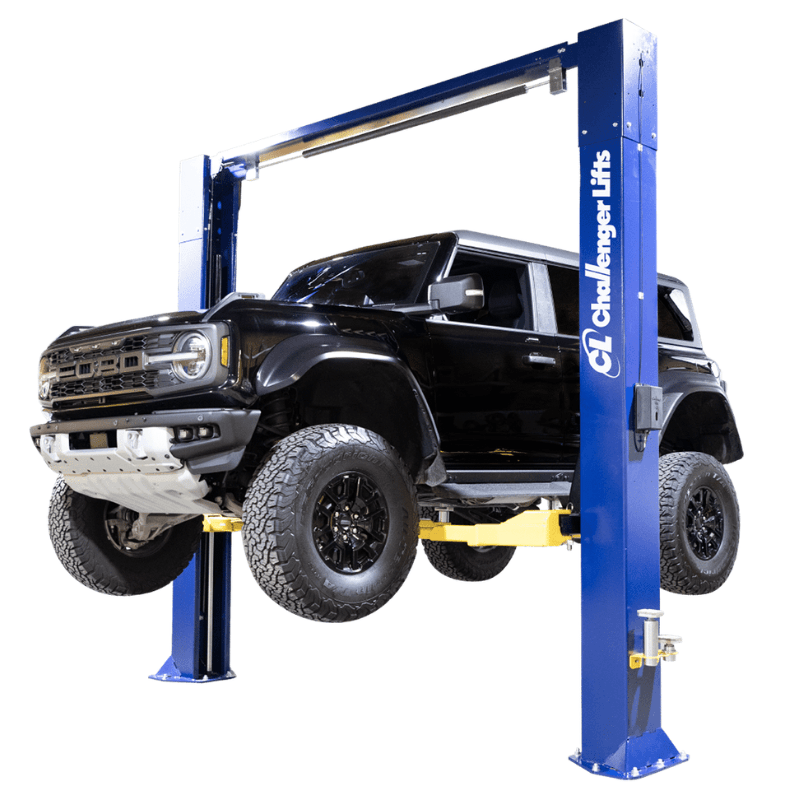

Challenger CL10AV3 10K Versymmetric 2 Post Lift - ALI Certified

CL10AV3 Series 10K Ver symmetric Two-Post Adjustable Lift

Upgrade your shop’s capabilities with the Challenger CL10AV3 Series 10K Versymmetric® Two-Post Adjustable Lift. Designed with industry-first directSPOT™ technology, this lift ensures precise first-try vehicle spotting, maximizing productivity and reducing frustration. Its 3-stage front and rear arms, combined with adjustable height and width options, provide unmatched versatility for servicing a wide range of vehicles.

For faster operations, select the Quick Cycle™ model to rise in just 27 seconds and lower in 17 seconds, increasing your service throughput. Complete your setup with optional drive-on pads and accessories to meet any service requirement. Built for durability, safety, and efficiency, the CL10AV3 is the ultimate choice for any professional garage. Order Online Today.

Two-Post Lift CL10AV3 Specification

• Lifting Capacity: 10,000 lb

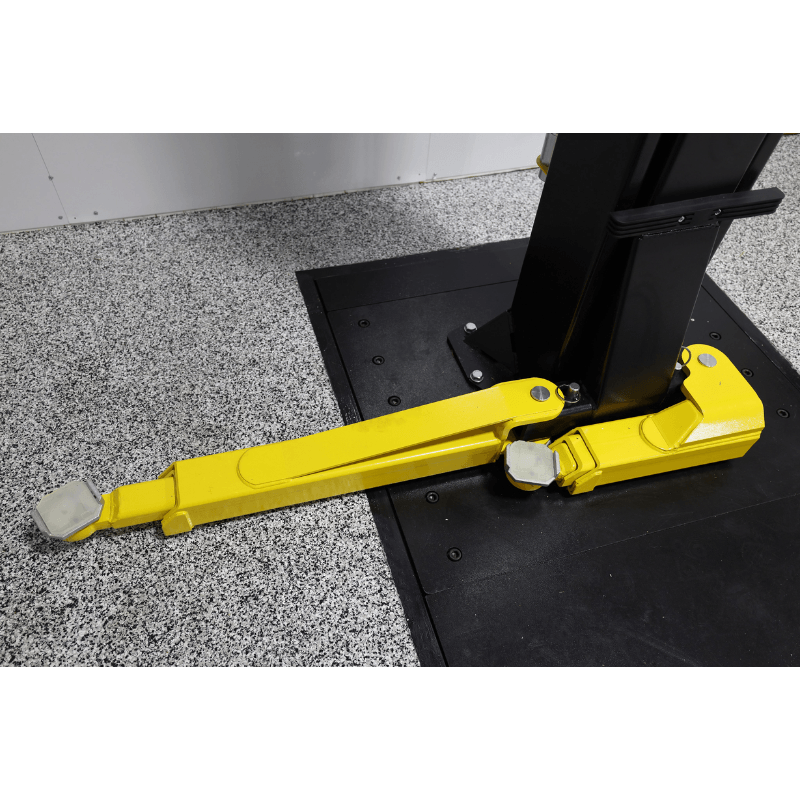

• Arms: 3-stage front / 3-stage rear

• Max Lift Height: 74.125″

• Column Height:
  • CL10A: 134"/140"
  • CL10A-2: 158"/164
  • CL10A-3: 170"/176"

• Floor to Overhead Switch:
  • CL10A: 128"/134.5"
  • CL10A-2: 152.5"/158.5"
  • CL10A-3: 164.5"/170.5"

• Overall Width
  • CL10A: 138.5"
  • CL10A-2: 144.5"
  • CL10A-3: 150.5"

• Overall Width:
  • CL10A: 100"
  • CL10A-2: 106"
  • CL10A-3: 1112"

• Drive-Thru Clearance:
  • CL10A: 100"
  • CL10A-2: 106"
  • CL10A-3: 112"

• Speed of Rise: 38s

• ALI Certified

• Color Options: Red, Blue, & Black

• Motor / Voltage: 2HP, 208–230V, 60Hz, 1Ph

CL10AV3 Series 10K Ver symmetric Two-Post Lift Special Features

• Versymmetric® offset arms with directSPOT™ for precise vehicle lifting


• Fully gusseted base plate for superior column rigidity

• Padded overhead shut-off system to prevent vehicle damage

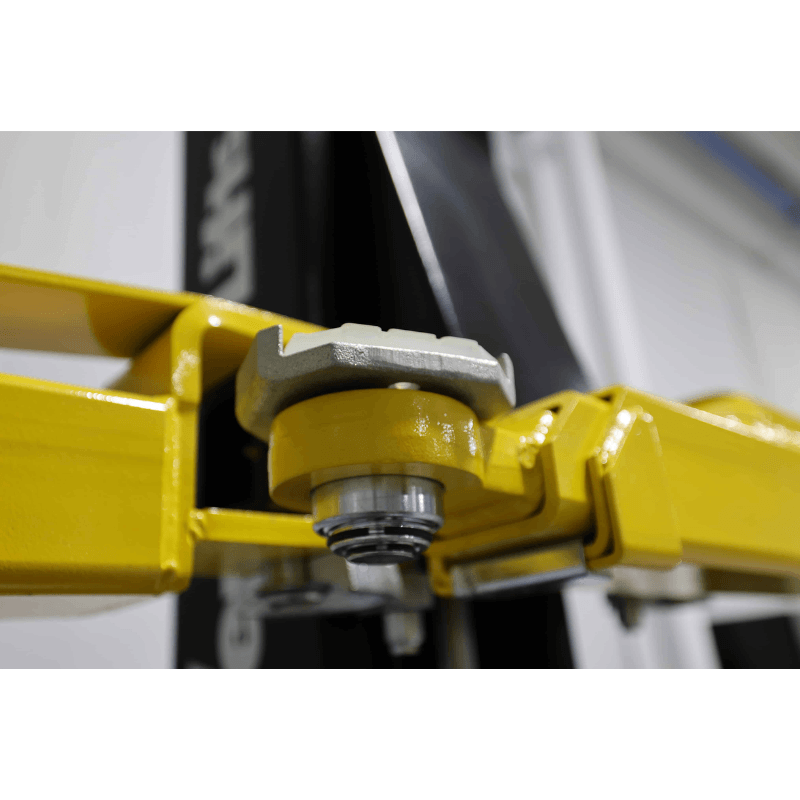

• Premium double telescoping screw pads minimize need for adapters

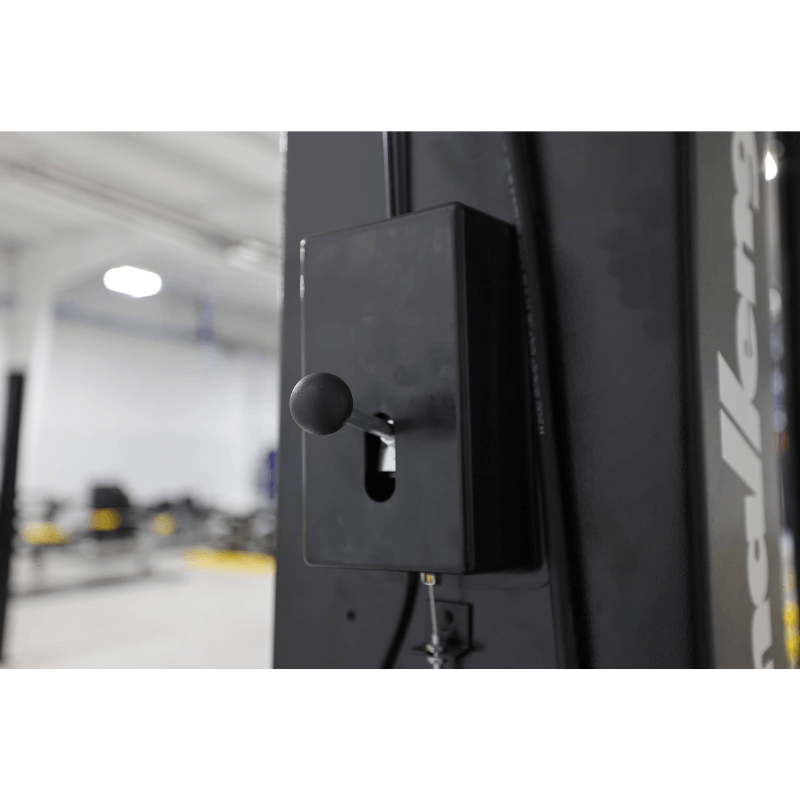

• Pulley-less jacketed single-point lock release for smooth operation

• Dual integrated rubber door guards for panel protection

• Plated arm restraints and pins for rust resistance and durability

• Powder coat finish ensures long-lasting durability

• Optional drive-on pads and EV-ready foot pads included

• Includes 10315 Stack Kit - (4) 3" Adapters; (2) 6" Adapters, (2) Organizer Racks.

Challenger CL10AV3 Manual

  Challenger CL10AV3 Series Installation and Operations Manual

  Challenger CL10AV3 Series Dual Pendant Installation and Operations Manual

  Challenger CL10AV3 Series Spec Sheet
