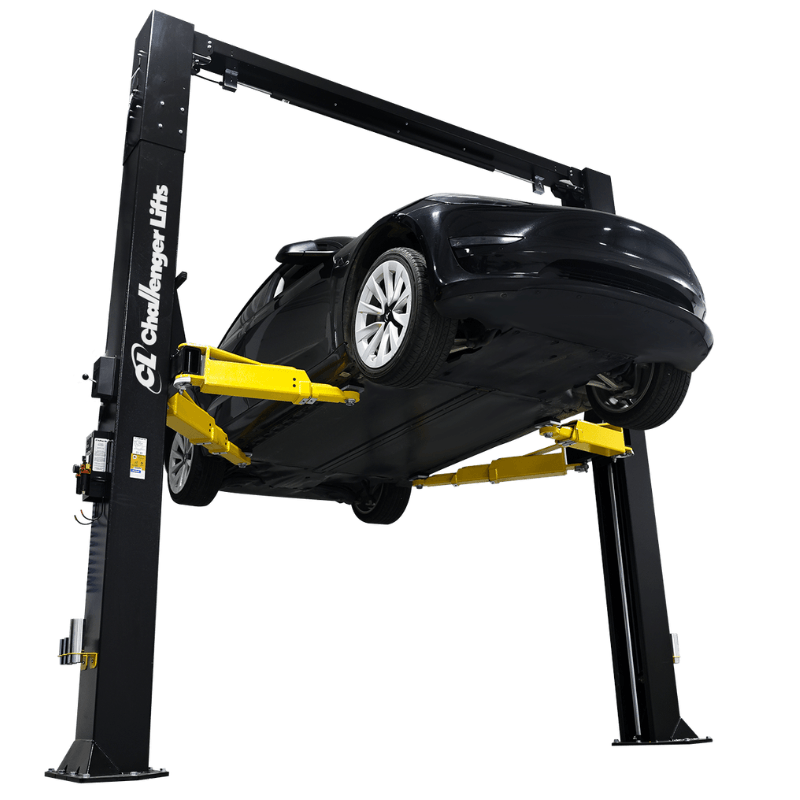

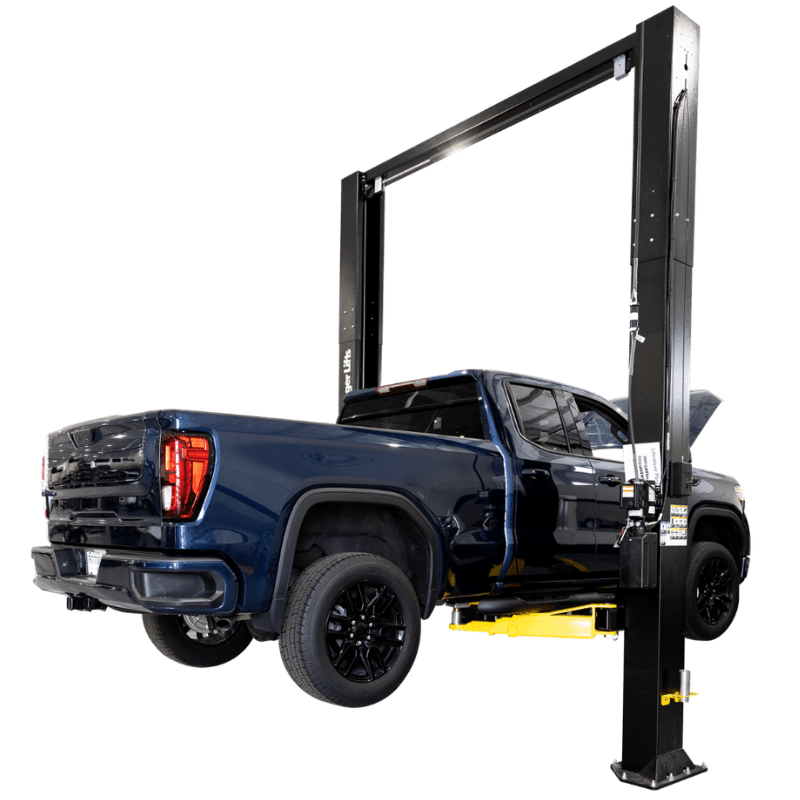

Challenger CL12A Series 12K Heavy-Duty Two-Post Adjustable Lift

CL12A 2-Post Lift

Revolutionize your automotive service bay with the Challenger CL12A 12K Two-Post Adjustable Lift. Engineered for versatility and strength, this lift empowers your workshop to efficiently handle a wide range of vehicles, including cars, trucks, SUVs, vans, and electric vehicles all in one service bay. With its multiple height and width adjustments, the CL12A adapts seamlessly to your shop layout, offering unmatched flexibility without compromising performance.

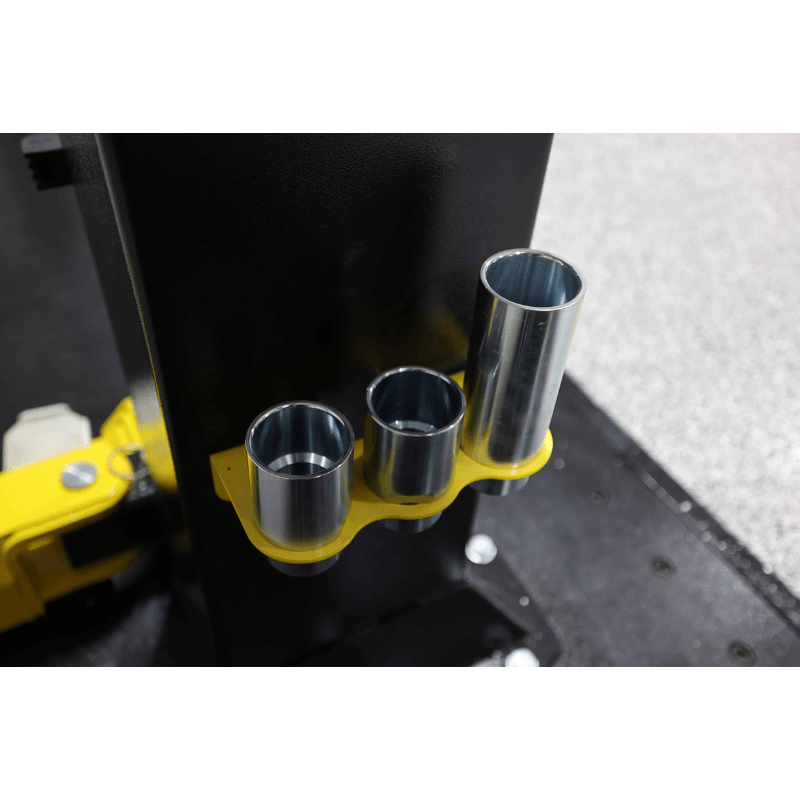

Designed with precision, the CL12A features 3-stage front and rear arms, premium telescoping footpads, and standard Stack Adapter Kits (P/N 10315) for smooth adjustments across diverse vehicle lifting points. For low-ceiling shops, the CL12A-LC delivers the same powerful lifting performance with a compact column height of 143″, making it an ideal solution for maximizing space. ALI® Certified for safety and reliability, the CL12A series ensures peace of mind while elevating your service capabilities to industry-leading standards.

Two-Post Lift CL12A Series Specification

• Model Numbers: CL12A, CL12A-1, CL12A-2, CL12A-LC

• Lifting Capacity: 12,000 lbs (all models)

• Lifting Configuration: Symmetric

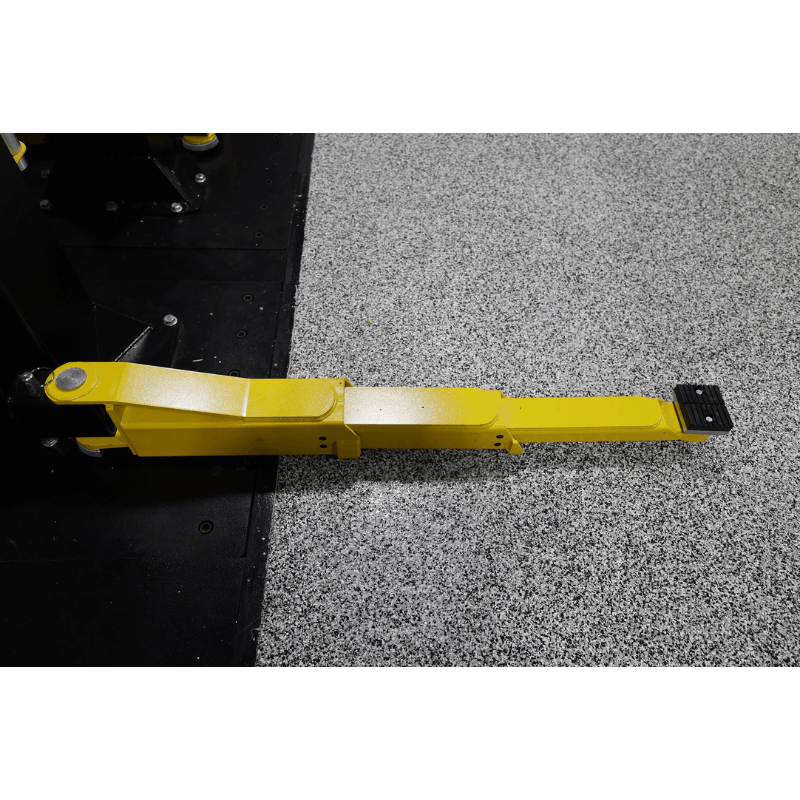

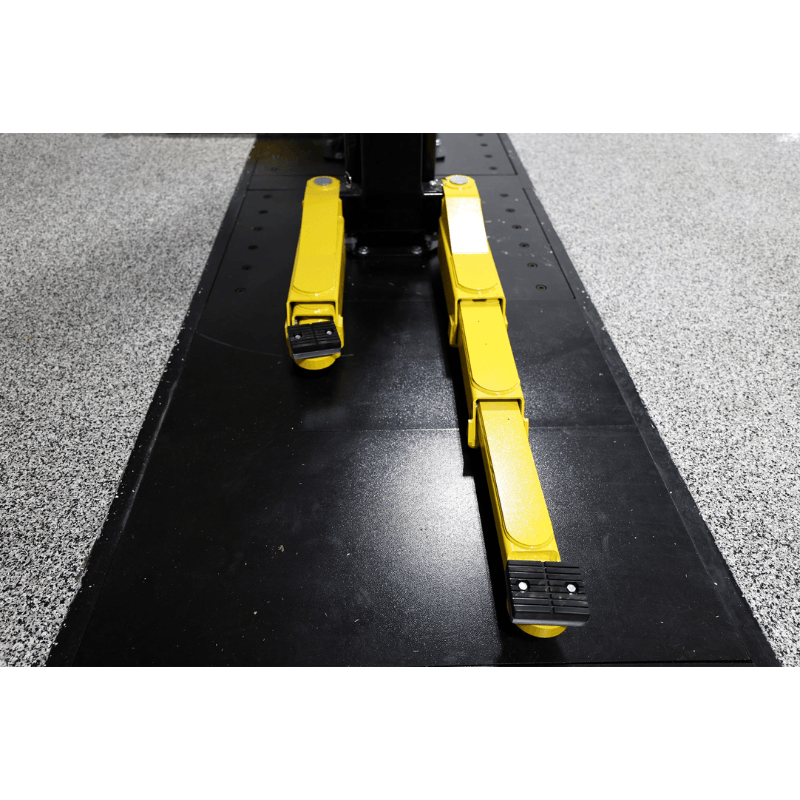

• Arms: 3-stage front / 3-stage rear

• Rise Height:

  • CL12A / CL12A-1 / CL12A-2: 84.75″

  • CL12A-LC: 80.75″

• Overall Height:

  • CL12A: 158″ / 164″;

  • CL12A-1: 170″ / 176″

  • CL12A-2: 182″ / 188″

  • CL12A-LC: 143″

• Adjustable Width Overall: 142″ / 148″ / 154″

• Drive-Thru Clearance: 103.5″ / 109.5″ / 115.5″

• Floor to Overhead Switch:

  • CL12A: 152″ / 158″

  • CL12A-1: 164″ / 170″

  • CL12A-2: 176″ / 182″;

  • CL12A-LC: 136.5″

• Arm Reach: Min 27.5″ / Max 59″

• Screw Pad Height: 4.75″ – 6.625″

• Inside Columns: 114.5″ / 120.5″ / 126.5″

• Motor / Voltage: 2HP, 208v–230v, 60Hz, 1Ph

• Speed of Rise: CL12A / CL12A-1 / CL12A-2: 63 s; CL12A-LC: 60 s

• Ceiling Height Required:

  • CL12A: 171″ minimum;

  • CL12A-1: 183″ minimum;

  • CL12A-2: 195″ minimum;

  • CL12A-LC: 144″ minimum

• Colors Available: Red, Blue, Black

• ALI® Certified: Yes

• Concrete Requirements: Minimum of 4"-3500psi

CL12A Series Two-Post Lift Special Features

• 3-stage front and rear arms for maximum reach

• Adjustable width: 142″ – 154″ overall

• Compatible with electric and wider vehicles using TFPK footpad kit

• Optional 12″ and 24″ column extensions

• Low-Ceiling model available at 143″ column height

• ALI® Certified for industry-standard safety and performance

Challenger CL12A Series Manual

  Challenger CL12A Series Installation and Operations Manual

  Challenger CL12A Series Dual Installation and Operations Manual

  Challenger CL12A Series Spec Sheet
