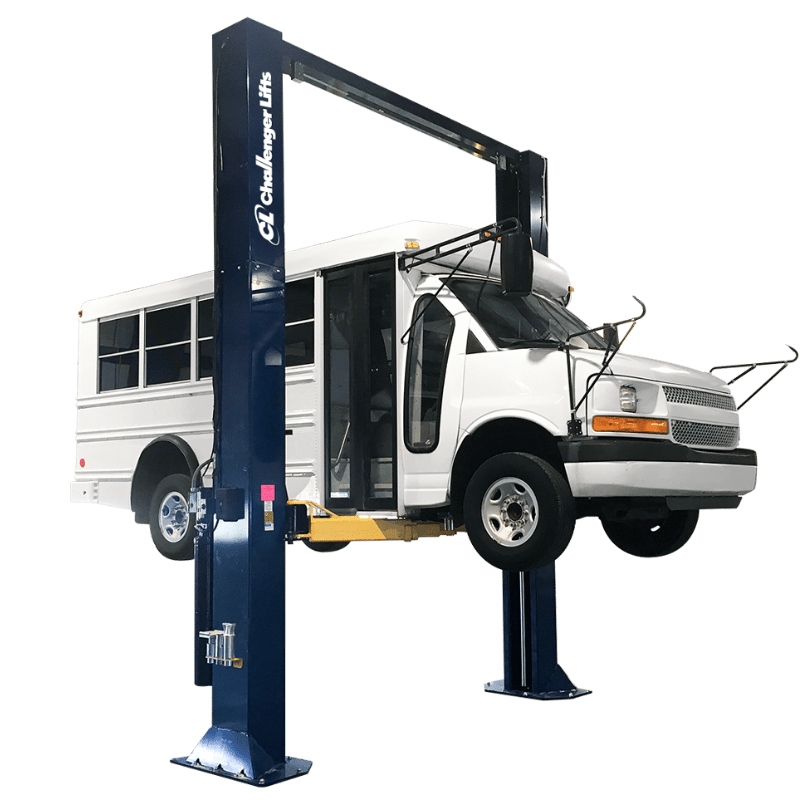

Challenger CL16 16,000lb 2 Post Lift - Adjustable Height & Width; ALI Certified

CL16 Series 16K 2 Post Lift

Take your shop to the next level with the Challenger CL16 Series 16K Heavy-Duty Two-Post Lift, engineered to handle the toughest lifting demands with unmatched strength and flexibility. With a powerful 16,000 lb capacity and advanced 3-stage arm configuration, this lift is built to service everything from passenger vehicles to electric and commercial fleet vehicles. Its adjustable width and height options ensure seamless integration into your workspace while maximizing efficiency across a wide range of applications.

Built for durability and long-term performance, the CL16 Series features a robust equalization system with oversized 5″ pulleys and heavy-duty 3/8″ cables to reduce wear and extend service life. A single-point air-actuated lock release enhances technician convenience and safety, while low-profile pickup pads and dual rubber door guards ensure vehicle protection at every stage. Backed by ALI® Certification and equipped with a standard Stack Adapter Kit, this lift delivers the reliability, safety, and performance your business demands.

CL 16 Series Specification

• Lifting Capacity: 16,000 lbs

• Lift Configuration: Symmetric

• Arm Configuration: 3-stage front / 3-stage rear

• Maximum Load Per Arm: 4,000 lbs

• Rise Height (with Stack Adapters): 75.5″ – 81.5″

• Overall Height Options:

  • Standard: 162″ / 168″ / 174″;

    • 2' Extension: (Add 24" to above)

  • Extended: 186″ / 192″ / 198″

    • 2' Extension: (Add 24" to above)


• Overall Width Options: 166.75″ / 160.75″ / 154.75″

• Drive-Thru Clearance: 104.25″ / 110.25″ / 116.25″

• Floor to Overhead Switch:

  • Standard: 155″ / 161″ / 167″

    • 2' Extension: (Add 24" to above)

  • Extended: 179″ / 185″ / 191″

    • 2' Extension: (Add 24" to above)

• Arm Reach: 36.625″ – 75″

• Screw Pad Height: 5″ – 6.5″

• Between Columns: 120″ / 126″ / 132″

• Motor / Voltage: 3HP, 208–230V, 60Hz, 1Ph

• Air Supply Required: 90–120 PSI

• Rise Time: 62 seconds

• Ceiling Height Required:

  • Standard: 164″ / 170″ / 176″

    • 2' Extension: (Add 24" to above)

  • Extended: 188″ / 194″ / 200″

    • 2' Extension: (Add 24" to above)
• Concrete Requirements: Minimum of 4"-3500psi

Challenger 16,000lb 2Post Lift Special Features

• 16,000 lb heavy-duty lifting capacity

• 3-stage front and rear arms for extended reach

• Single-point air-actuated lock release system

• Oversized 5″ steel pulleys and 3/8″ cables for durability

• 60″ lifting carriage design for longer lift lifespan

• Adjustable width and symmetric configuration

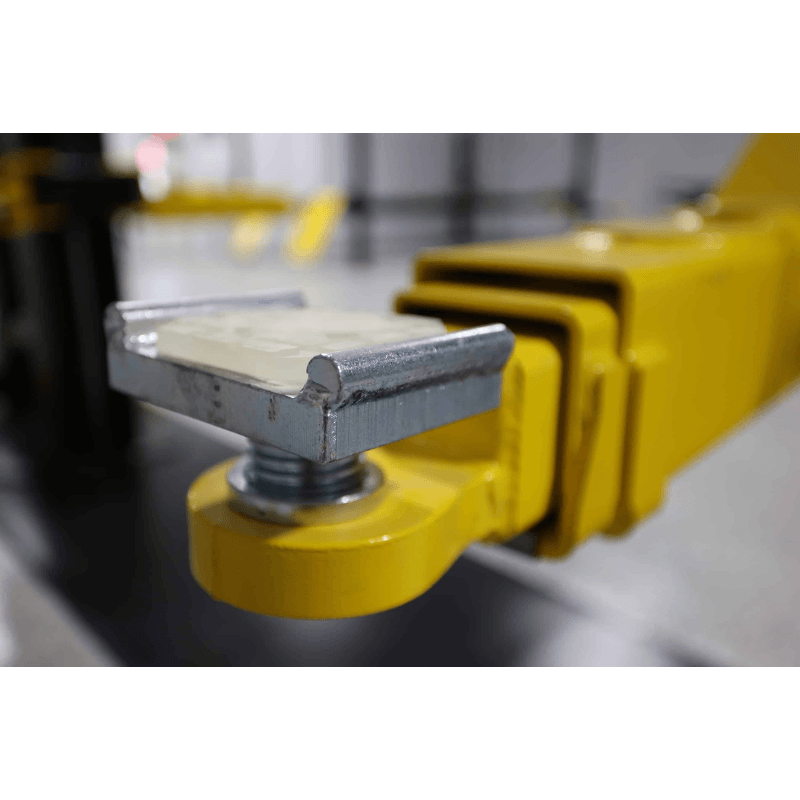

• Low-profile pickup pads for wider vehicle compatibility

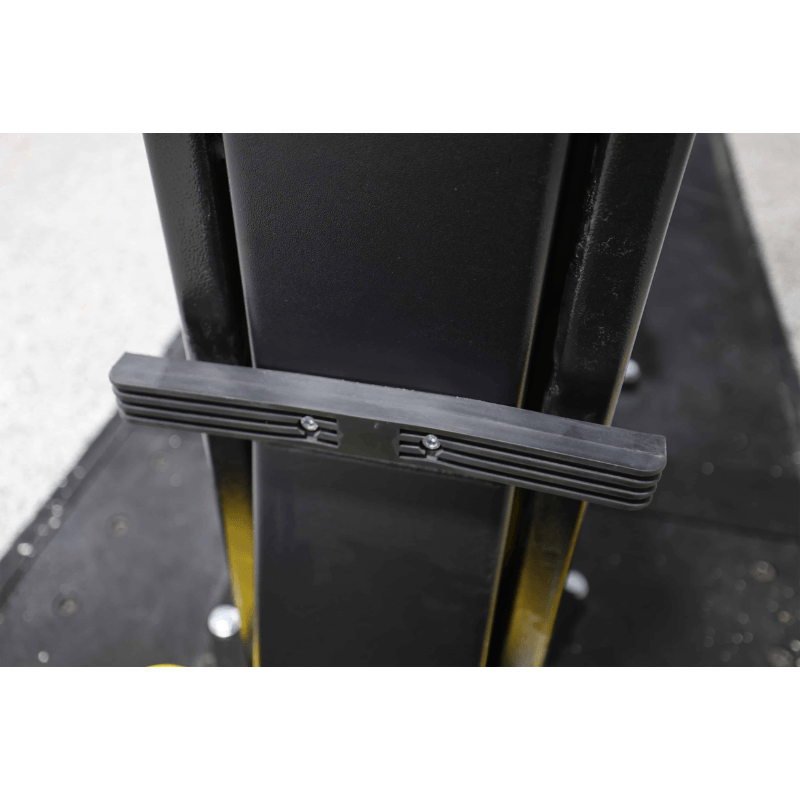

• Dual integrated rubber door guards for protection

• Colors: Red, Black, Blue

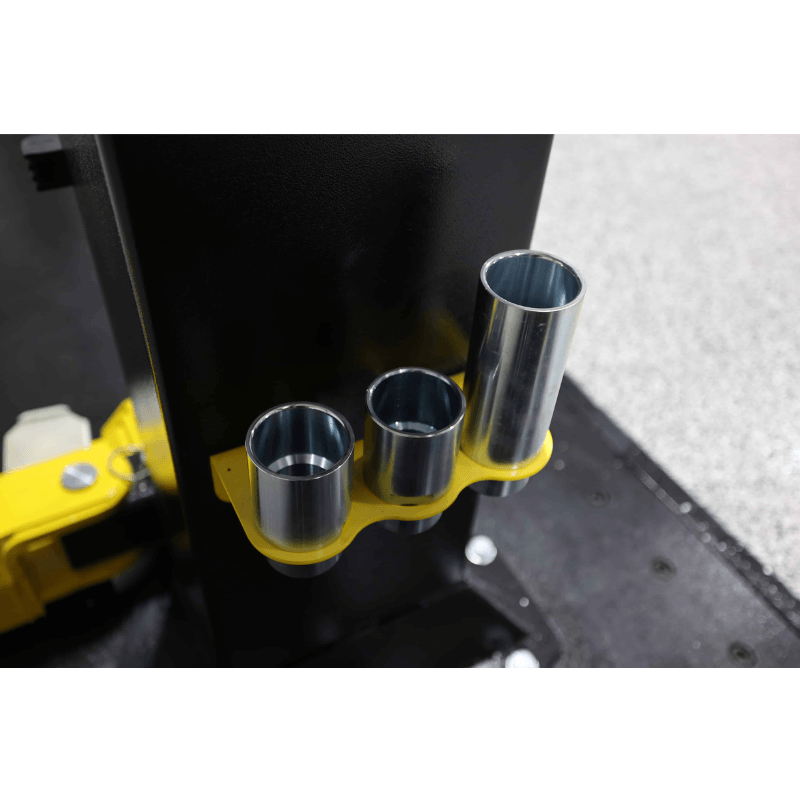

• Includes Stack Adapter Kit (P/N 10315)

  • 4" and 8" Stack Adapters

• ALI Certified

Challenger CL16 Series Manual

  Challenger CL16 Series Installation and Operations Manual

  Challenger CL16 Series Spec Sheet
