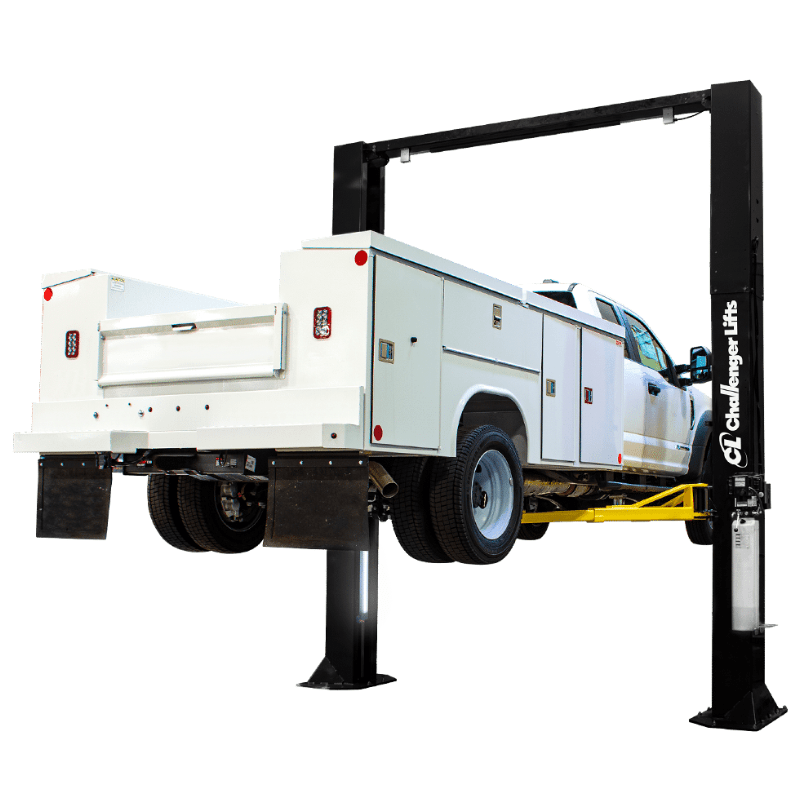

Challenger CL20 Series 20,000lb 2 Post Lift - Adjustable With & Height - ALI Certified

CL20 2 Post Lift – ALI Certified

Handle the toughest lifting jobs with confidence using the Challenger CL20 Series 20K Heavy-Duty Two-Post Lift. Designed for maximum strength and durability, this lift delivers an impressive 20,000 lb lifting capacity, making it the perfect solution for fleet maintenance, commercial vehicles, and heavy-duty applications. Its wider and taller design, combined with 2-stage front and rear arms, ensures stable and secure lifting for even the largest vehicles in your shop.

Built for flexibility and long-term performance, the CL20 features adjustable width configurations and optional 24″ column extensions to accommodate taller vehicles with ease. Whether you're servicing work trucks or heavy fleet vehicles, this lift provides the power, reliability, and adaptability your operation demands. Backed by ALI® Certification, the CL20 guarantees industry-leading safety standards, giving you peace of mind while maximizing productivity in your service bay.

Challenger 20,000lb 2 Post Lift Specifications

• Model Numbers:

  • CL20-0 (Standard)

  • CL20-2 (2' Extended Height)

• Lifting Capacity: 20,000 lbs

• Lift Configuration: Symmetric

• Arm Configuration: 2-stage front / 2-stage rear

• Maximum Load Per Arm: 5,000 lbs

• Rise Height: 76.6″ – 84.6″

• Overall Height:

  • CL20-0: 162″ / 168″ / 174″

  • CL20-2: 186″ / 192″ / 198″

• Overall Width Options: 154.75″ / 160.75″ / 166.75″

• Drive-Thru Clearance: 104.25″ / 110.25″ / 116.25″

• Floor to Overhead Switch:

  • CL20-0: 155″ / 161″ / 167″

  • CL20-2: 179″ / 185″ / 191″

• Arm Reach: 38.5″ – 62″

• Screw Pad Height: 6.2″ – 7.6″

• Between Columns: 120″ / 126″ / 132″

• Motor / Voltage: 3HP, 208–230V, 60Hz, 1Ph

• Air Supply Required: 90–120 psi

• Rise Time: 62 seconds

• Minimum Ceiling Height:

  • CL20-0: 164″ / 170″ / 176″

  • CL20-2: 188″ / 194″ / 200″

• Concrete Requirements: Minimum of 4"-3500psi

CL20 Series Two-Post Lift Special Features

• 20,000 lb heavy-duty lifting capacity for fleet and commercial vehicles

• 2-stage front and rear arms for stable and secure lifting

• Engineered wider and taller to handle large vehicles

• Adjustable width and symmetric design for easy vehicle access

• Single-point air-actuated lock release system for simultaneous column disengagement

• Oversized 5″ steel pulleys with heavy-duty 3/8″ cables for extended durability

• 60″ lifting carriage design increases overall lift lifespan

• Dual integrated rubber door guards help prevent vehicle damage


• Includes stack adapters for added lifting versatility (4" & 8")

• ALI® Certified for safety and industry compliance

Challenger CL20 Series Manual

  Challenger CL20 Series Installation and Operations Manual

  Challenger CL20 Series Spec Sheet
