Challenger CLFP9 9,000lb 2 post lift

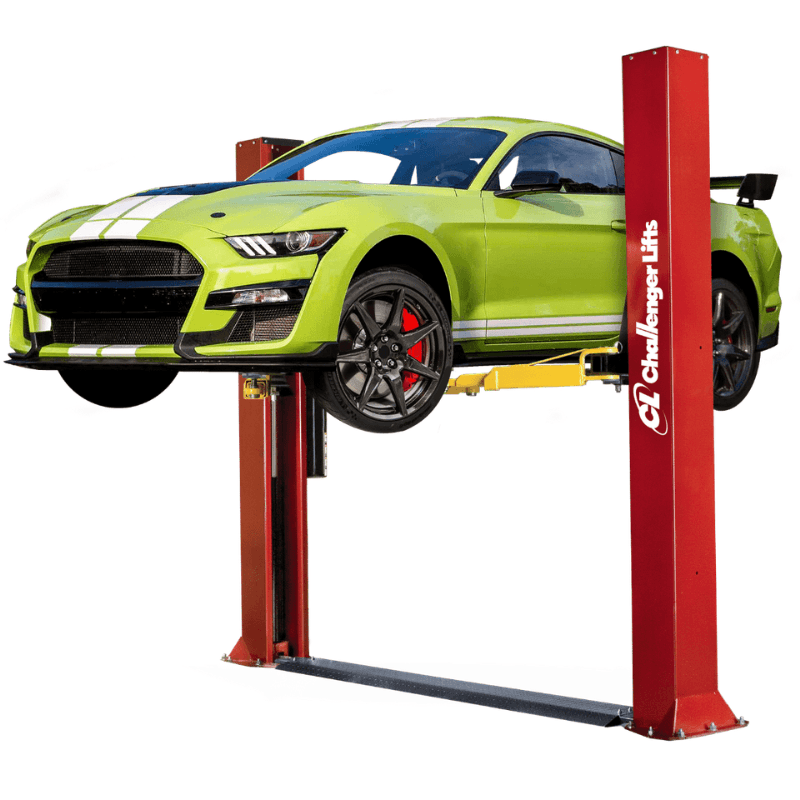

CLFP9 9K Two-Post Lift Open Top – Floor Plate Design

Maximize your workspace with the Challenger CLFP9 9K Two-Post Lift – Open Top, specifically engineered for low ceiling environments without sacrificing performance. With a compact column height of just 120.875″, this lift is ideal for garages with limited overhead clearance while still delivering a powerful 9,000 lb lifting capacity. Its open-top, floor plate design eliminates the need for overhead crossbars, making it a versatile solution for both home enthusiasts and professional service shops.

Built for reliability and flexibility, the CLFP9 features 3-stage front and rear arms for extended reach and superior vehicle coverage. The low-profile drive-over floor plate ensures easy vehicle positioning, while premium double telescoping screw pads allow quick adjustments for different lifting points. Designed with durability in mind, this lift includes a powder-coated finish, plated arm pins, and dual rubber door guards delivering long-lasting performance and protection with every use.

Two-Post Lift CLFP9 Specification

• Model Number: CLFP9

• Lifting Capacity: 9,000 lbs

• Lifting Configuration: Symmetric

• Arms: 3-stage front / 3-stage rear

• Rise Height: 78.125″

• Overall Height: 120.875″

• Overall Height (Cylinder Extended): 120.875″

• Overall Width: 137.5″

• Drive-Thru Clearance: 98.187″

• Floor to Overhead Switch: N/A

• Front Arm Reach: 24.5″ – 44.5″

• Rear Arm Reach: 24.5″ – 44.5″

• Screw Pad Height: 4″ – 5.875″

• Inside Columns: 109″

• Motor / Voltage: 2HP, 208–230V, 60Hz, 1Ph

• Speed of Rise: 50 s

• Ceiling Height Required: 122″

• ALI/ETL Certified: Not specified

• Height Extensions Available: None

• Colors Available: Red, Blue

• Concrete Requirements: Minimum of 4"-3500psi

CLFP9 Two-Post Lift Special Features

• 9,000 lb lifting capacity for versatile applications

• Open-top floor plate design ideal for low ceilings

• Compact 120.875″ overall height

• 3-stage front and rear arms for maximum reach

• Low-profile drive-over plate for easy positioning

• Electric/hydraulic chain drive with cable equalization

• Dual-point mechanical pull-lock release system

• Double telescoping screw pads for height flexibility

• Powder-coated finish for durability

• Plated arm restraints and pins resist rust

• Integrated rubber door guards for vehicle protection
