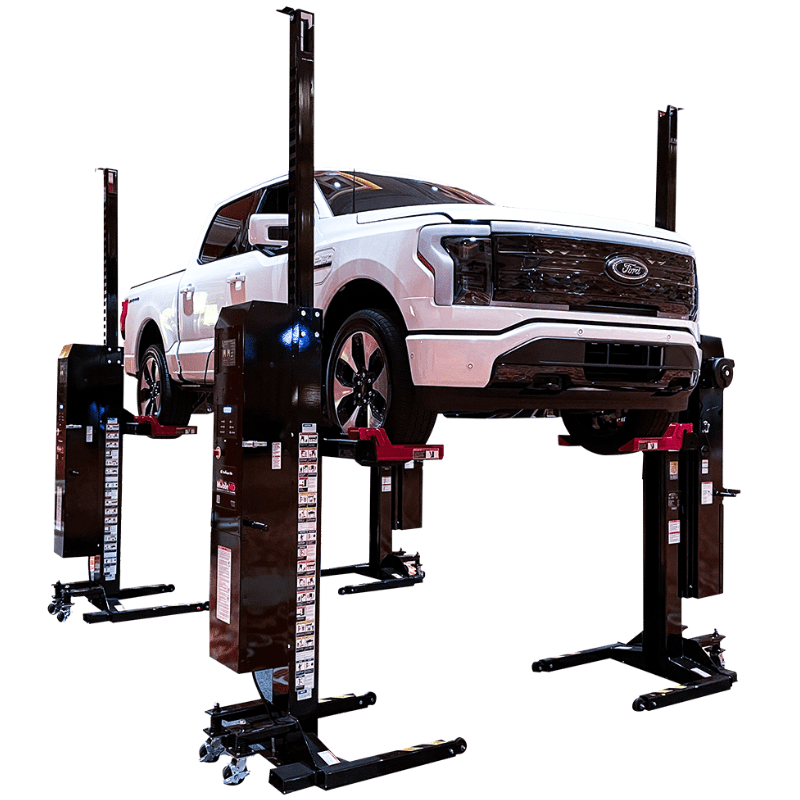

Challenger CLMM-5000 5K Wireless Mobile Column Lift (Set of 4)

CLMM-5000 5,000 lb Mobile Column Lift System – 20,000 lb Capacity

Transform any space into a productive service bay with the Challenger Lifts CLMM-5000 Mobile Column Lift System. Fixed lifts can limit your workflow and restrict how you use your shop floor. The CLMM-5000 eliminates those limitations with a fully portable, wireless lifting system giving you the freedom to lift vehicles anywhere in your facility with ease.

Engineered for flexibility and performance, this system is sold in sets of four, delivering a combined lifting capacity of 20,000 lbs. Each column is battery-powered and wirelessly connected, allowing operation from any column without messy cables or air lines. With complete under-vehicle access, it’s also ideal for EV servicing, including battery removal and installation. Whether you run a commercial fleet shop or a growing service center, the CLMM-5000 delivers unmatched mobility, efficiency, and return on investment.

Mobile Column Lift CLMM-5000 Specification

• Model: CLMM-5000

• Capacity per Column: 5,000 lbs

• Total Capacity (Set of 4): 20,000 lbs

• Lift Height (4 Columns): 69"


• Unit Height: 88.5"

• Height at Full Rise: 157"

• Unit Width: 38.5"

• Unit Length: 46.75"

• Wheel Diameter Range: 6" – 22"

• Max Hydraulic Pressure: 2,230 PSI

• Lift Speed: 60" per minute

• Unit Weight: 870 lbs

• Turning Radius: 50.5"

• Operating Power: 4HP

• Operating Voltage: 24 VDC

• Charger Voltage: 120–240 VAC, 50–60 Hz

• Charger Amps: 2.8A

• Color: Black

CLMM-5000 5K Medium-Duty Mobile Column Lift Special Features

• 20,000 lb total lifting capacity (set of 4 columns)

• 5,000 lb capacity per column

• Portable mobile column design for flexible shop use

• Wireless operation—no cables or air lines required

• Operate the system from any column

• Rechargeable battery-powered system

• 110V charging system for convenience

• Adjustable forks fit wheel diameters from 6" to 22"

• Tow handles and spring-loaded wheels for easy movement

• Full under-vehicle access—ideal for EV battery service

• Durable construction for heavy daily use

• Perfect for fleet vehicles, trucks, and passenger vehicles

Challenger CLMM-5000 Manual

  Challenger CLMM-5000 Installation and Operations Manual

  Challenger CLMM-5000 Spec Sheet
