Challenger DX77 Series 7,700lb Scissor Lift - ALI Certified (Std or Flush)

DX77 Series 7.7K Scissor Lift

Boost productivity and maximize workspace efficiency with the Challenger Lifts DX77 Series Scissor Lift. Traditional lifts can limit access and slow down service times, especially in tight or high-traffic bays. The DX77 solves this with a compact, cross-member-free design that provides full access around the vehicle—helping technicians work faster, safer, and more efficiently.

Engineered for versatility, the DX77 can be installed above ground or flush-mounted to maintain a clean, seamless shop floor. Its synchronized hydraulic system, double scissor design, and easy push-button controls ensure smooth and reliable operation. Whether for express service, body shops, or narrow bays, this ALI-certified lift delivers the performance and flexibility modern shops demand.

Scissor Lift  DX77 Series Specification

• Model: DX77 / DX77-R

• Capacity: 7,700 lbs

• Installation: Standard or Flush Mount

• Overall Width: 69.5" – 82"

• Overall Length: 83.25"

• Platform Length: 59"

• Platform Width: 24.5"

• Width Between Platforms: 21" – 27"

• Ramp Length: 11.75"

• Rise Height: 70" – 74.5"

• Lowered Height: 4.5" (standard model)

• Max Load per Platform: 3,850 lbs

• Motor: 2HP, 208–220V, 60Hz, Single Phase

• Amps: 30A

• Rise Time: 43 seconds

• Certification: ALI Certified

Installation Requirements

• Minimum Bay Size: 144" × 144"

• Recommended Bay Size: 144" × 336"

• Concrete Requirements: Minimum of 4"-3500psi

DX77 Series 7.7K Scissor Lift Special Features

• 7,700 lb lifting capacity for a wide range of vehicles

• Cross-member-free design for full vehicle access

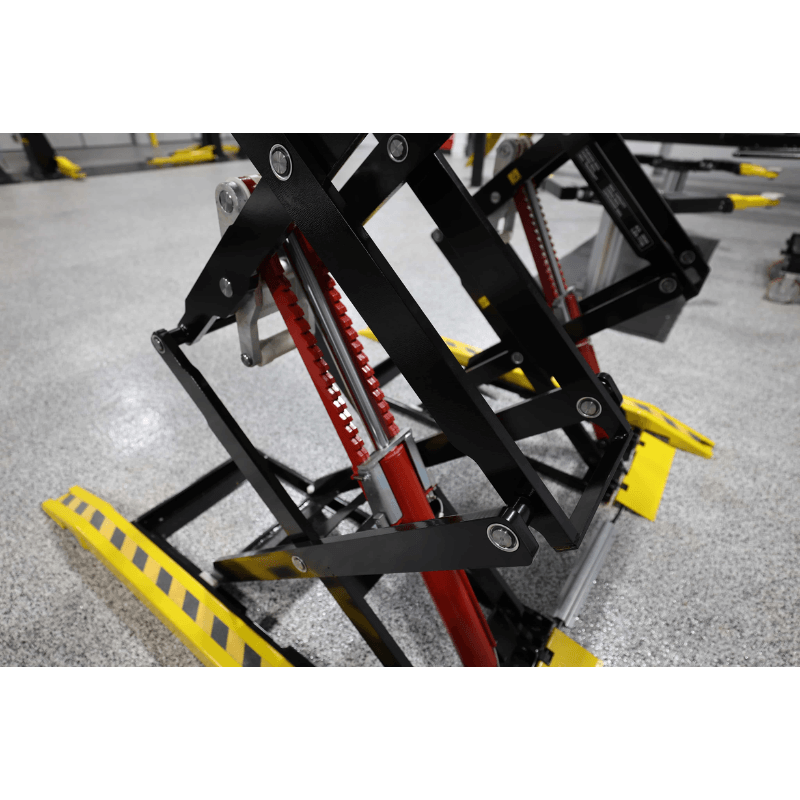

• Double scissor system for higher lift and stability

• Can be installed above ground or flush-mounted

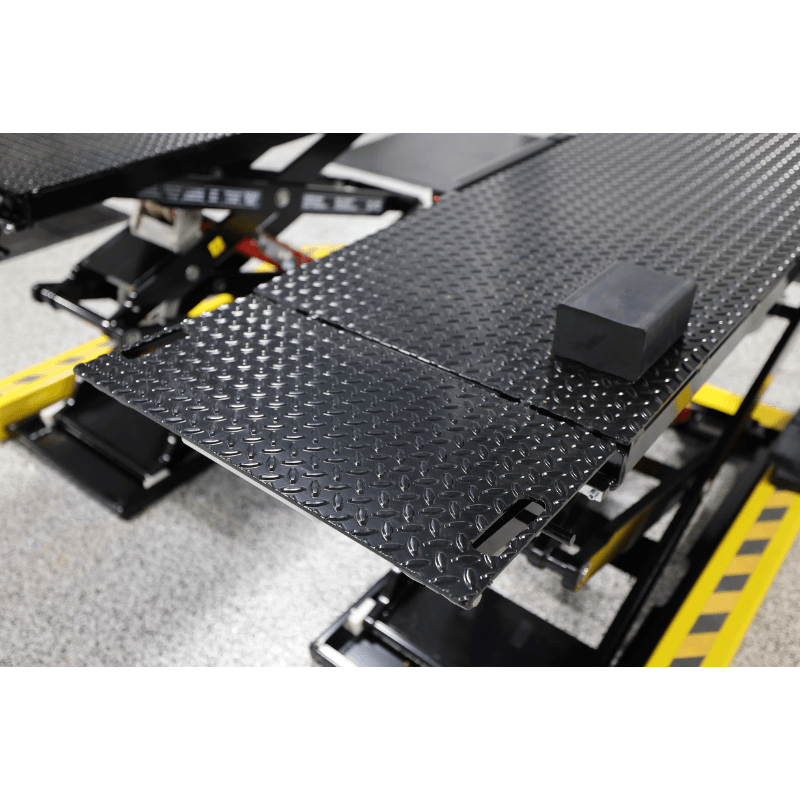

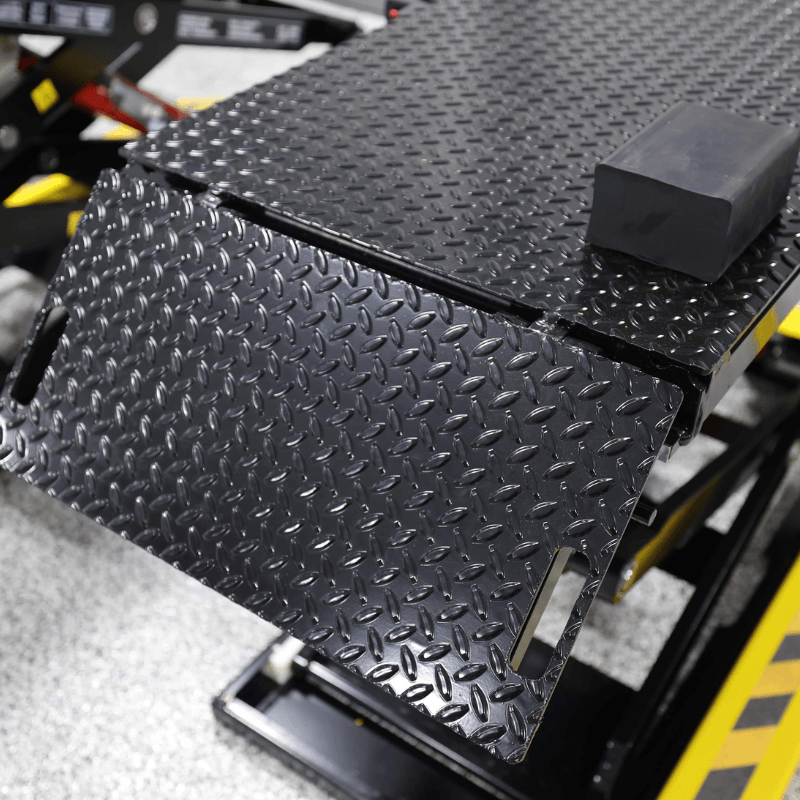

• Reinforced diamond-plate ramps with flip-up extension

• Single-point air-actuated lock release system

• Simple push-button control console

• Includes rubber spotting blocks (3" & 1.5" sets)

• Optional extended ramp kit for low-profile vehicles

• Powder-coated finish for durability

• ALI certified for safety and reliability

Challenger 4P14 Serie Manual

  Challenger DX77 Series Installation and Operations Manual

  Challenger DX77 Series Spec Sheet
