Challenger EV1020 10,000lb In Ground Lift - ALI Certified

EV1020 Series 10K In Ground

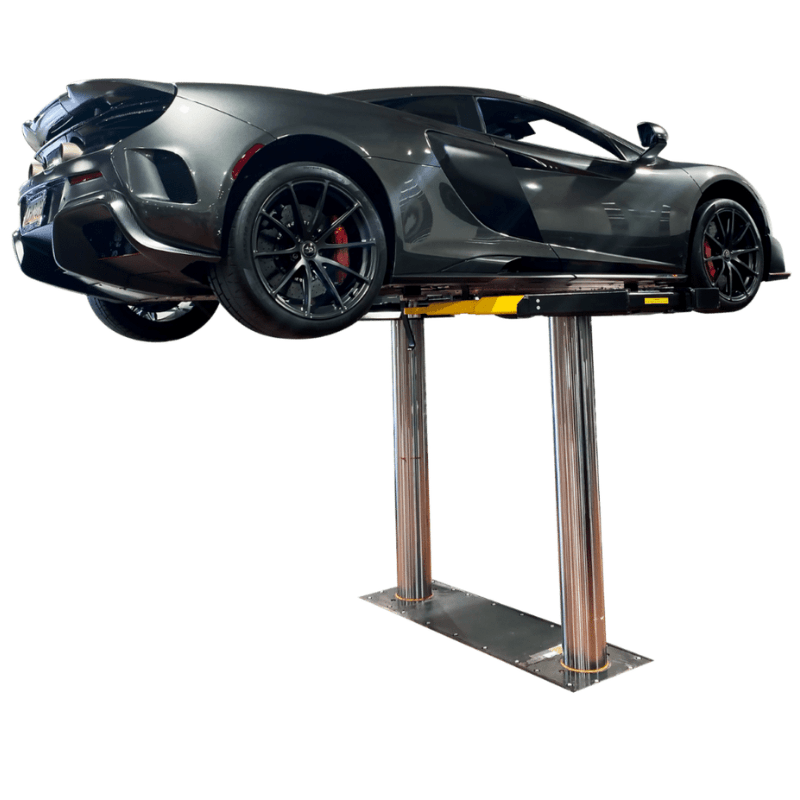

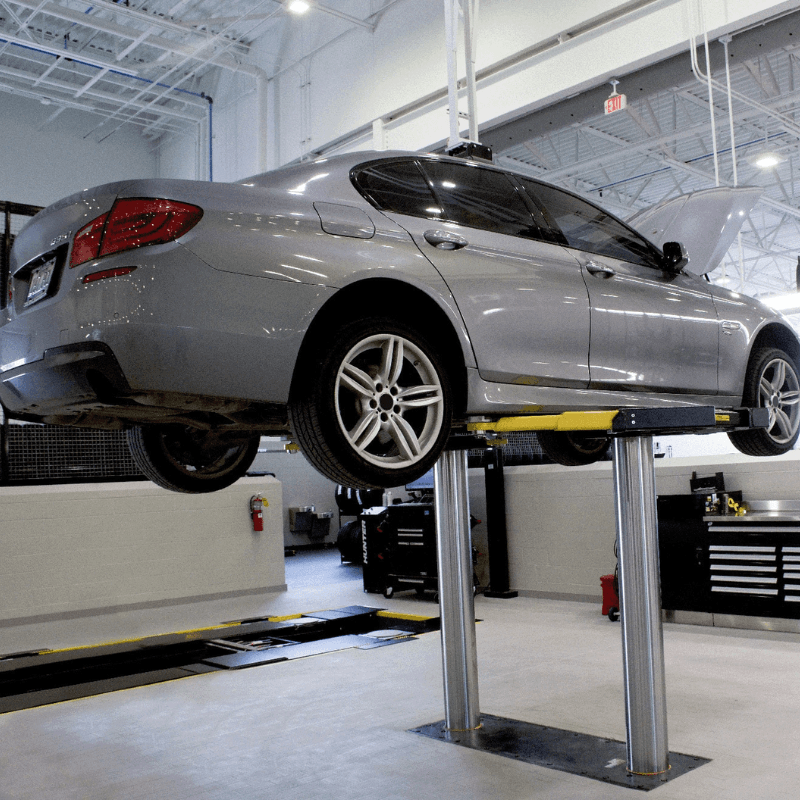

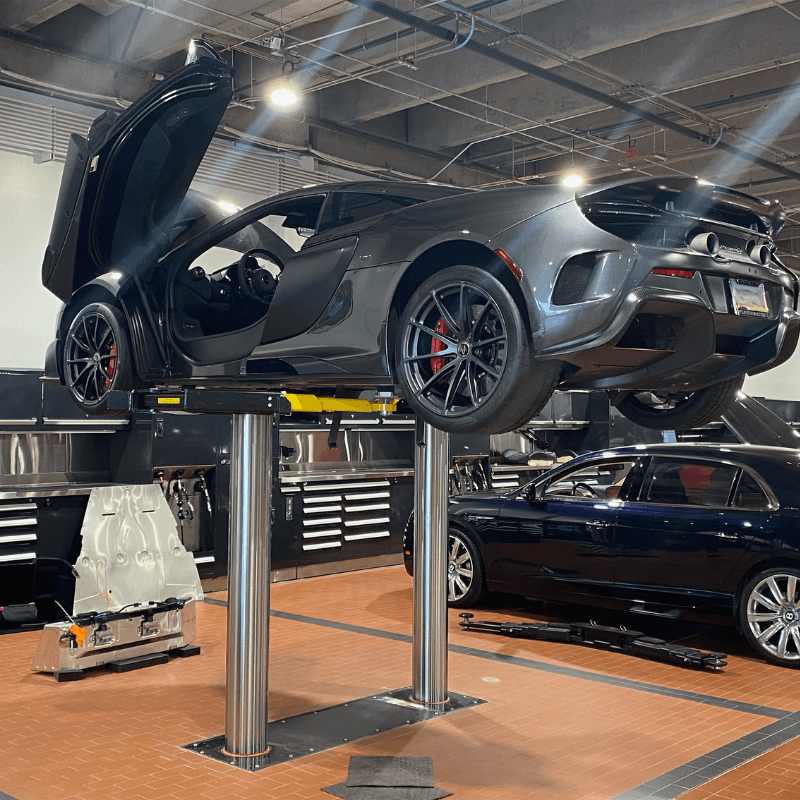

Maximize your shop’s service capacity with the Challenger Lifts EV1020 Series 10,000 lb Standard Inground Lift, designed for professional facilities that require a compact footprint without sacrificing versatility. Featuring 3-stage front and rear arms or optional drive-on pads, this lift gives technicians full access to vehicle lift points for cars and trucks of all sizes.

The EV1020 combines durability with ergonomic design. Its robust chrome pistons, non-breathing ram cylinders, and fully sealed polymer cassette tub ensure long-lasting performance while preventing hydraulic leaks. Mechanical locks engage every 3″, providing adjustable working heights for safe, comfortable service. Optional EV Kit upgrades allow safe lifting of electric and hybrid vehicles, making this lift a future-ready investment for any busy shop.

Inground Lift EV1020 Series Specification

• Model Number: EV1020

• Lifting Capacity: 10,000 lb

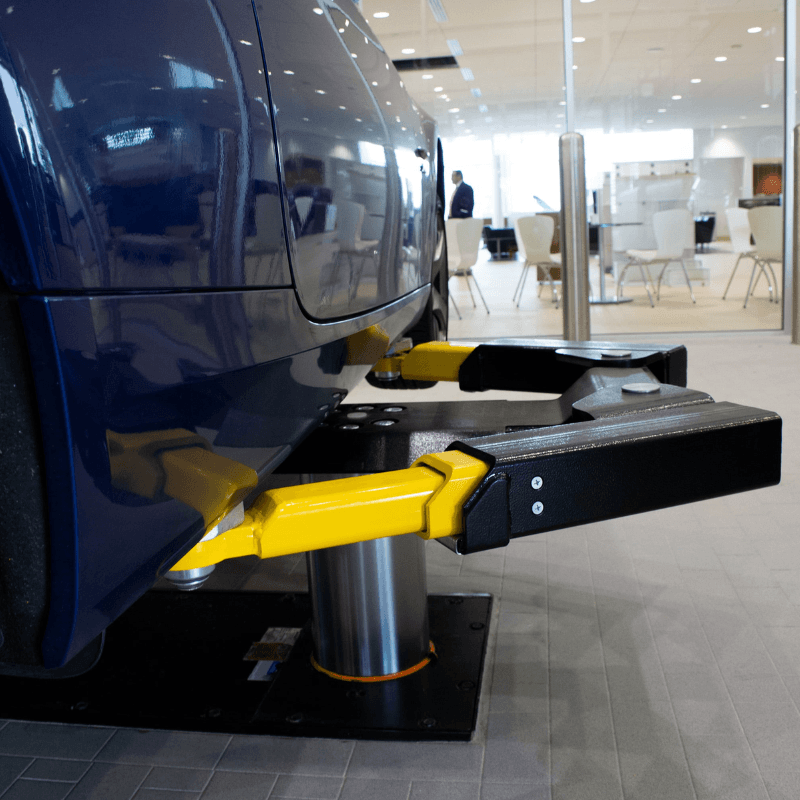

• Arms: 3-stage front/rear

• Stroke: 68″

• Rise Height: 74″

• Width Overall: 97″

• Drive-Thru Clearance: 87″

• Reach (Arm Min/Max): 19.625″ / 42.125″

• Screw Pad Height: 3.875″ – 6″

• Capacity per Arm: 2,500 lbs

• Guide Plunger Diameter: 8.5″

• Motor / Voltage: 2HP, 208–230V, 60Hz, Single Phase

• Speed of Rise: 38 s (Standard)

• Air Required: 90–120 psi

• Certification: ALI/ETL Certified

• Superstructure Colors: Red, Blue, Black

• Concrete Requirements: Minimum of 6"-3500psi

EV1020 Series 10K Standard Inground Lift Special Features

• 10,000 lb lifting capacity

• 3-stage front and rear arms for wide vehicle compatibility

• Optional drive-on XP9 pads for express bay efficiency

• 8.5″ chrome pistons for stable lifting under load

• Non-breathing ram cylinder for long lift life

• Enhanced wiper seals retain grease and block contaminants

• Mechanical lock engages every 3″ for ergonomic work heights

• Stainless steel air lock release cylinder resists corrosion

• Fully sealed polymer cassette tub prevents hydraulic leaks


• Premium powder coat finish for long-lasting durability

• EV Kit available for safe lifting of electric/hybrid vehicles

• ALI/ETL certified

Challenger EV1020 Series Manual

  Challenger EV1020 Series Installation and Operations Manual

  Challenger EV1020 Series Spec Sheet
