Challenger EV1020-XP9 Series 9K Inground Lift - ALI Certified

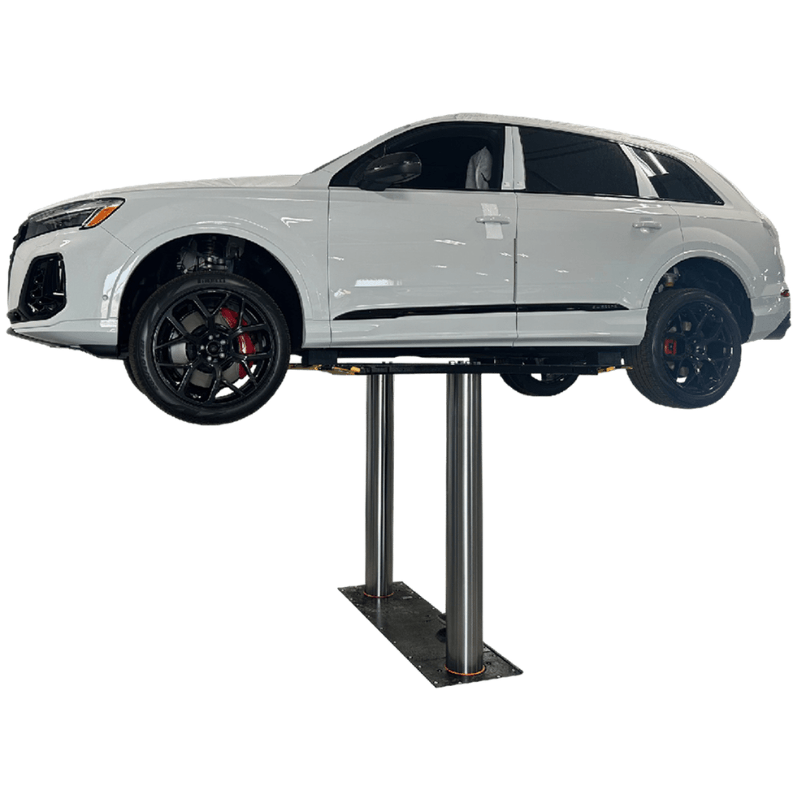

EV1020-XP9 Series 9K Inground Drive-On Pad Lift

The Challenger Lifts EV1020-XP9 9,000 lb inground pad lift is designed for speed, safety, and efficiency in express service bays. Its drive-on pad configuration allows technicians to quickly and precisely spot vehicles, reducing downtime and increasing shop productivity. With durable construction and ergonomic lock positions, this lift offers reliability and ease of use for any busy workshop.

Built to last, the EV1020-XP9 features chrome pistons, a non-breathing ram-style cylinder, and fully-sealed polymer cassette tubs to protect your hydraulic system and eliminate leaks. The mechanical lock engages every 3″, allowing technicians to work at comfortable heights while minimizing fatigue.

EV1020 XP9 Series Specification

• Model: EV1020-XP9

• Lifting Capacity: 9,000 lbs

• Rise Height: 70"

• Minimum Pad Height: 2.25"

• Pad Capacity: 4,500 lbs per pad

• Guide Plunger Diameter: 8.5"

• Overall Width: 79.75"

• Motor: 2HP, 208–230V, 60Hz, Single Phase

• Speed of Rise: 38 seconds

• Air Supply Required: 90 – 120 psi

• Color: Black

• ALI/ETL Certified: Yes

• Concrete Requirements: Minimum of 4"-3500psi

Challenger 9K In Ground Special Features

• 9,000 lb lifting capacity

• Drive-on pad style for fast vehicle spotting

• 8.5" chrome pistons for greater stability

• Chrome non-breathing ram cylinder for longer lift life

• Enhanced wiper system keeps grease in and contaminants out

• Mechanical lock engages every 3″ for ergonomic working heights

• Stainless steel air lock release cylinder resists corrosion

• Fully-sealed recycled polymer cassette tub prevents hydraulic leaks

• Durable powder-coated finish

• ALI/ETL certified for safety and performance

Challenger SRM10 Manual

  Challenger EV1020-XP9 Series Installation and Operations Manual

  Challenger EV1020-XP9 Series Spec Sheet
