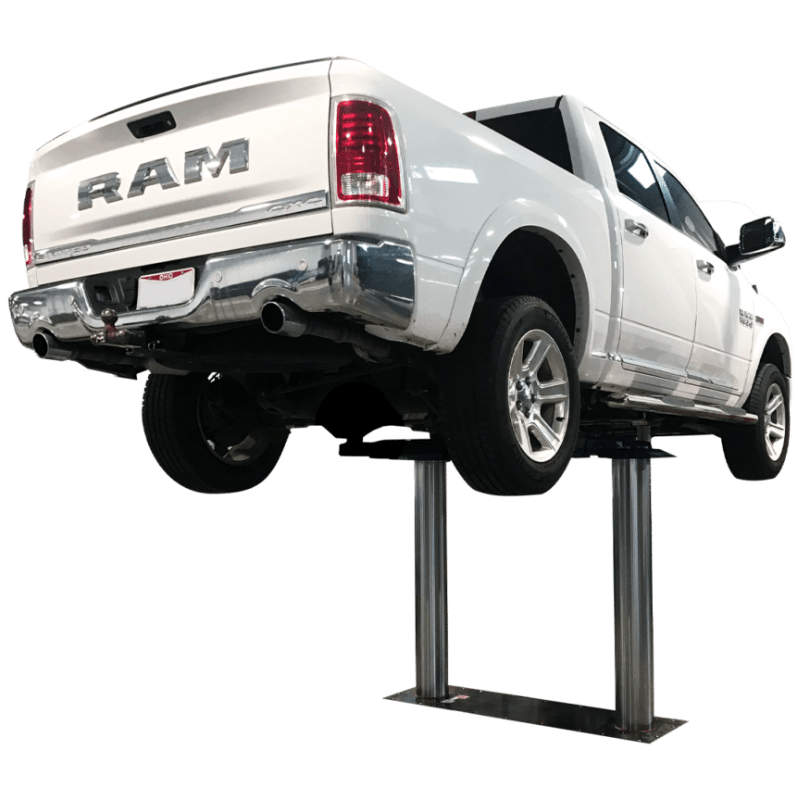

Challenger EV1220 12,000lb Inground Lift - ALI Certified

EV1220 Inground Lift – ALI Certified

Upgrade your service facility with the Challenger Lifts EV1220 Series 12,000 lb Heavy-Duty Inground Lift, engineered to handle heavier vehicles while maximizing workshop efficiency. Its electric hydraulic cassette design fits a compact footprint, letting your shop optimize service bays without compromising accessibility. The true 3-stage front and rear arms provide complete access to a wide range of lift points, making this lift ideal for professional automotive shops servicing cars, trucks, and SUVs of varying sizes.

Designed for safety, productivity, and durability, the EV1220 features Bench Mount Controls, and mechanical locks that engage every 3″ to adjust working height for technician comfort. Its fully-contained polymer cassette tub prevents hydraulic leaks, and chrome non-breathing cylinders combined with 8 1/2″ pistons ensure long-lasting lift stability.

Inground Lift EV1220 Series Specification

• Model Number: EV1220

• Lifting Capacity: 12,000 lbs

• Arms: 3-stage front/rear

• Stroke: 72″

• Rise Height: 78″

• Width Overall: 115″

• Drive-Thru Clearance: 87″

• Reach (Arm Min/Max): 19.625″ / 48″

• Screw Pad Height: 4.5"″ – 6.25″

• Capacity per Arm: 3,000 lbs

• Guide Plunger Diameter: 8.5″

• Motor / Voltage: 2HP 208–230V, 60Hz, Single Phase

• Speed of Rise: 60 s (Standard)

• Air Required: 90–120 psi

• Certification: ALI/ETL Certified

• Superstructure Colors: Red, Blue, Black

• Concrete Requirements: Minimum of 6"-3500psi

EV1220 Series 12K Heavy-Duty Inground Lift Special Features

• 12,000 lb lifting capacity

• True 3-stage front and rear arms for wider vehicle compatibility

• 8 1/2″ diameter chrome pistons for stable lifting under load

• Chrome non-breathing ram cylinder for extended lift life

• Enhanced raised wiper seals retain grease and block contaminants

• Mechanical lock engages every 3″ for ergonomic working heights

• Stainless steel air lock release cylinder for corrosion resistance

• Fully-contained polymer cassette tub prevents hydraulic leaks

• Heavy-duty polyurethane screw pads accommodate a wide range of lift points

• Bench Mount Controls improve technician efficiency

• Premium powder coat finish for long-lasting durability

• ALI/ETL certified

Challenger EV1220 Series Manual

  Challenger EV1220 Series Installation and Operations Manual

  Challenger EV1220 Series Spec Sheet
