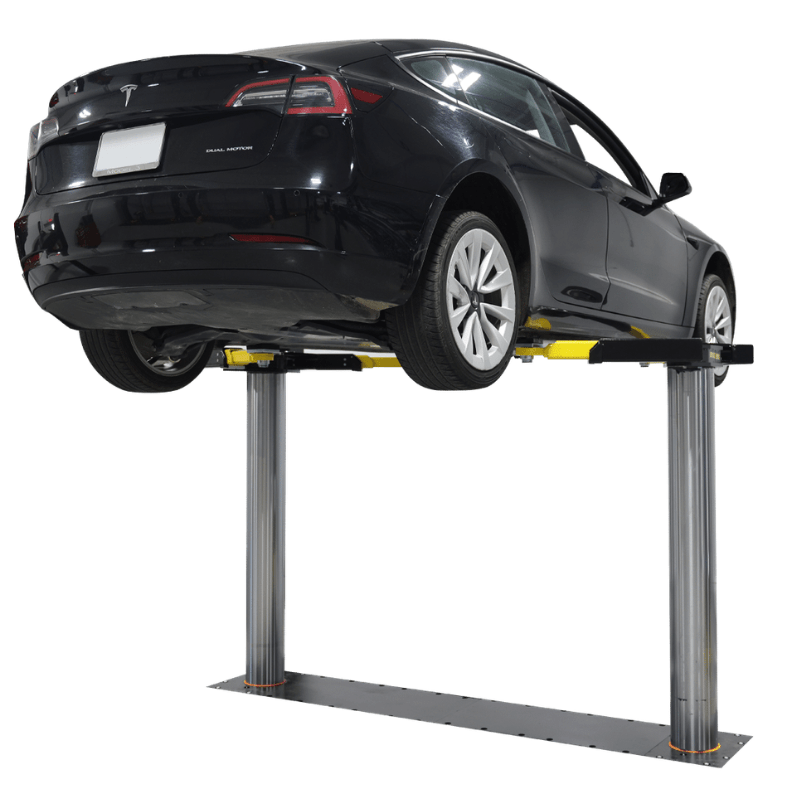

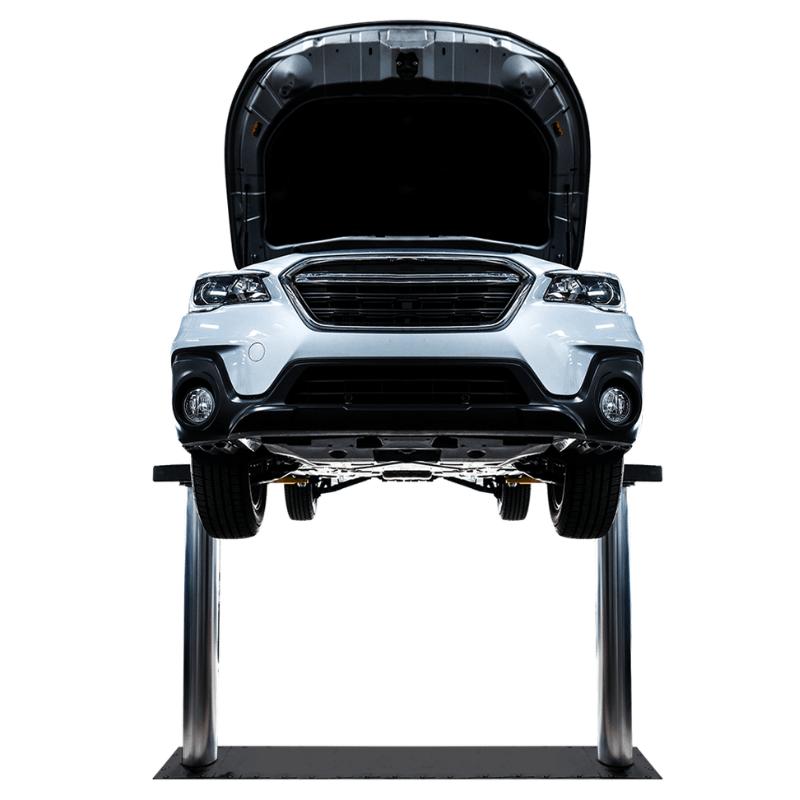

Challenger EW10 Series 10K Wide Inground Lift - ALI Certified

EW10 Series 10K Wide Inground Lift

Step into the future of automotive servicing with the Challenger Lifts EW10 Series Wide Inground Lift, engineered specifically for modern vehicles—including electric and luxury models. Standard lifts often struggle with wider vehicle frames and EV battery servicing, limiting your shop’s capabilities. The EW10 eliminates these challenges with an extra-wide drive-thru clearance, allowing technicians to service EV batteries and wider vehicles without sacrificing efficiency or safety.

Built for precision and productivity, the EW10 features true 3-stage arms, double telescoping screw pads, and optional Bench Mount Controls (BMC) for seamless operation.  Whether you're upgrading for EV compatibility or expanding your service range, the EW10 delivers unmatched versatility, durability, and performance.

EW 10 Series Specification

• Model: EW10

• Capacity: 10,000 lbs

• Capacity per Arm: 2,500 lbs

• Arms: 3-stage front/rear

• Screw Pad Height: 4" – 6.125"

• Arm Reach: 20" – 42"

• Stroke: 72"

• Rise Height: 78"

• Drive-Thru Clearance: 88"

• Overall Width: 117.5"

• Motor: 2HP; 208v-230v, 60Hz, 1Ph - 20AMP

• Speed of Rise: 41 s (Standard)

• Air Requirement: 90 – 120 PSI

• Certification: ALI / ETL Certified

• Colors: Black, Red, Blue

• Required Ceiling Height: 12'
• Concrete Requirements: Minimum of 6"-3500psi

EW10 Series 10K Wide Inground Lift Special Features

• 10,000 lb lifting capacity

• Extra-wide drive-thru clearance ideal for EVs and luxury vehicles

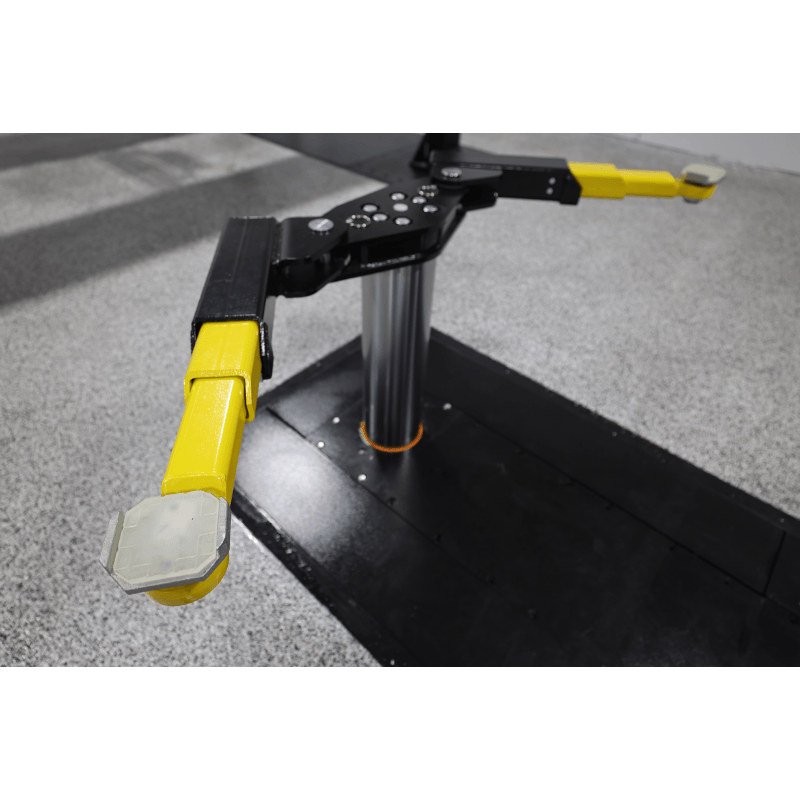

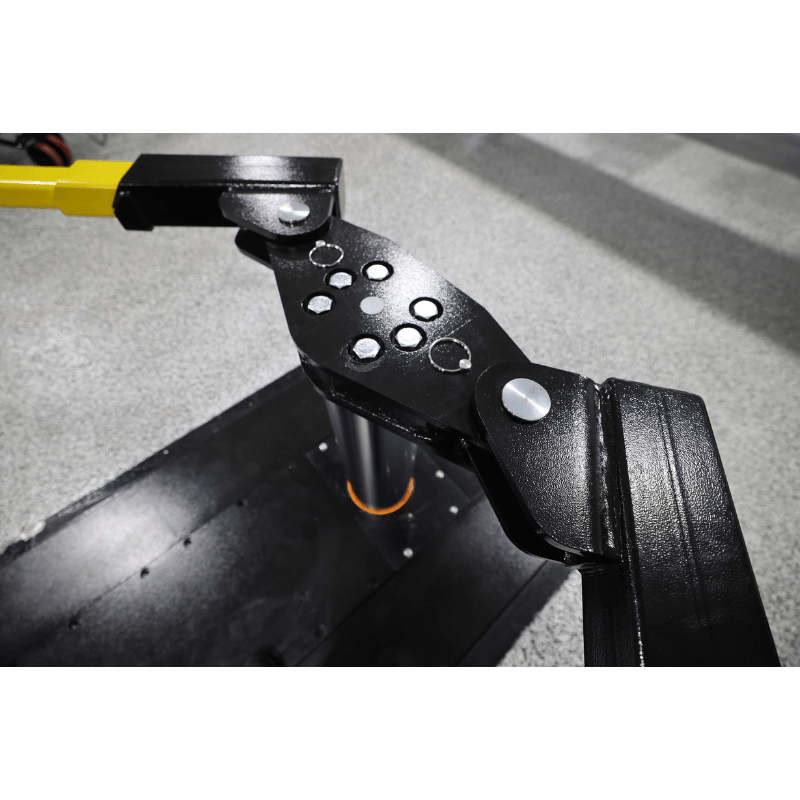

• 3-stage front and rear arms for maximum reach and flexibility

• Double telescoping screw pads for precise vehicle positioning

• Designed for EV battery access and wide vehicle frames

• Optional Bench Mount Controls (BMC) for improved ergonomics


• Durable hydraulic inground cassette design

• Powder-coated finish for long-lasting durability

• Optional EV Kit available for safe electric vehicle lifting

• ALI/ETL certified for safety and reliability

• Warranty: 5 Years Structural; 2 Years Functional Parts; 1 Year Labor

Challenger EW10 Series Manual

  Challenger EW10 Series Installation and Operations Manual

  Challenger EW10 Series Spec Sheet
