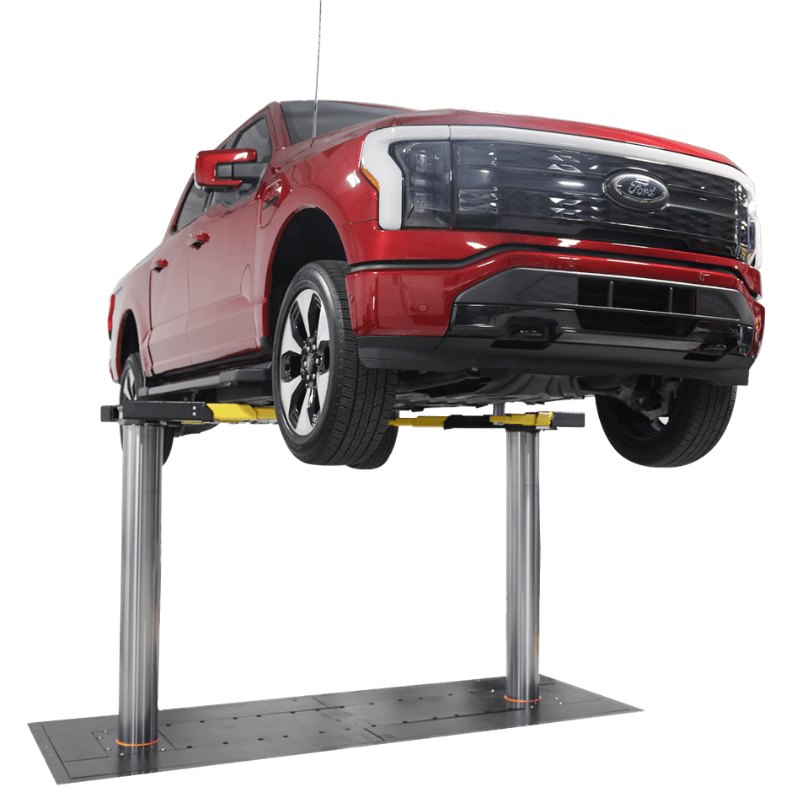

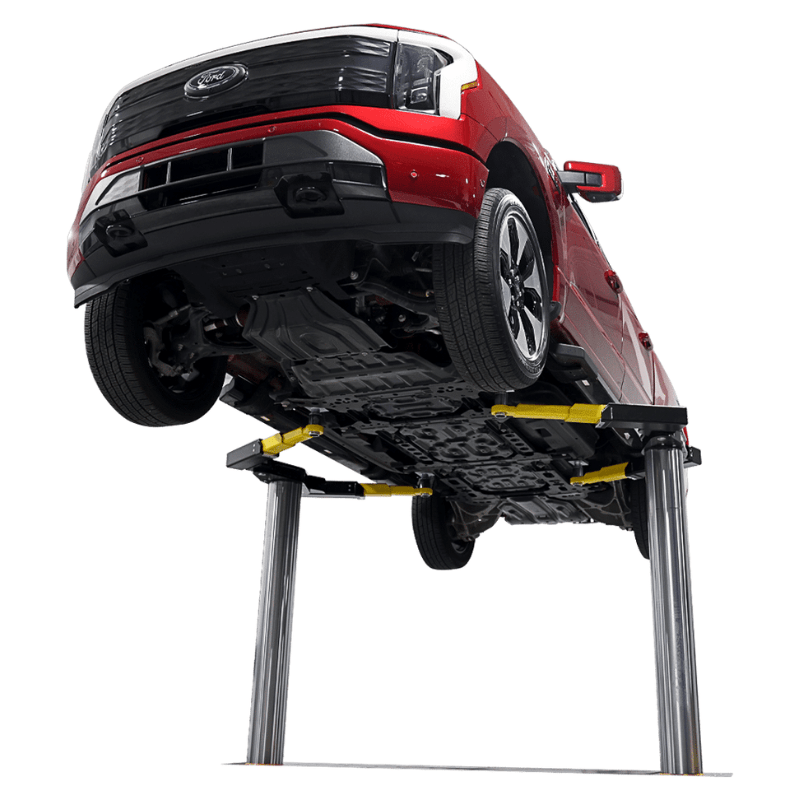

Challenger EW12 Series 12K Wide Inground Lift - ALI Certified

EW12 12,000 lb Wide Inground Lift –

Stay ahead in modern vehicle servicing with the Challenger Lifts EW12 Series Wide Inground Lift, engineered to handle today’s widest vehicles and electric platforms. Standard lifts often fall short when servicing EVs and wide-body trucks, especially when battery access is required. The EW12 solves this with an extra-wide drive-thru clearance, allowing safe and efficient battery lowering while maintaining full lifting performance.

Built for versatility and precision, the EW12 comes standard with true 3-stage front and rear arms and double telescoping screw pads, ensuring accurate vehicle positioning across a wide range of applications. Optional QuickCycle™ technology enhances productivity by reducing lift times, while the durable inground cassette design ensures long-term reliability. Whether servicing EVs, luxury vehicles, or heavy-duty trucks, the EW12 delivers unmatched capability and efficiency for professional shops.

Inground Lift EW12 Series Specification

• Model: EW1220

• Capacity: 12,000 lbs

• Capacity per Arm: 3,000 lbs

• Arms: 3-stage front/rear

• Screw Pad Height: 4" – 6.125"

• Arm Reach: 20" – 48.5"

• Stroke: 72"

• Rise Height: 78"

• Drive-Thru Clearance: 88"

• Overall Width: 121.5"

• Motor: 2HP, 208–230V, 60Hz, Single Phase

• Speed of Rise: 63 seconds

• Air Requirement: 90 – 120 PSI

• Certification: ALI / ETL Certified

• Colors: Red, Blue, Black

• Concrete Requirements: Minimum of 6"-3500psi

EW10 EW12 12K Wide Inground Lift Special Features

• 12,000 lb lifting capacity

• Extra-wide 88″ drive-thru clearance for EVs and wide vehicles

• True 3-stage front and rear arms for maximum reach

• Double telescoping screw pads for precise positioning

• Designed for EV battery access and wide-body vehicles

• Compatible with modern vehicles like trucks and electric SUVs

• QuickCycle™ option available for faster lift cycles

• Durable inground hydraulic cassette design

• Optional Bench Mount Controls for improved ergonomics

• Powder-coated finish for long-lasting durability

• Optional EV Kit available for EV-ready lifting

• ALI/ETL certified for safety and reliability

Challenger EW12 Series Manual

  Challenger EW12 Series Installation and Operations Manual

  Challenger EW12 Series Spec Sheet
