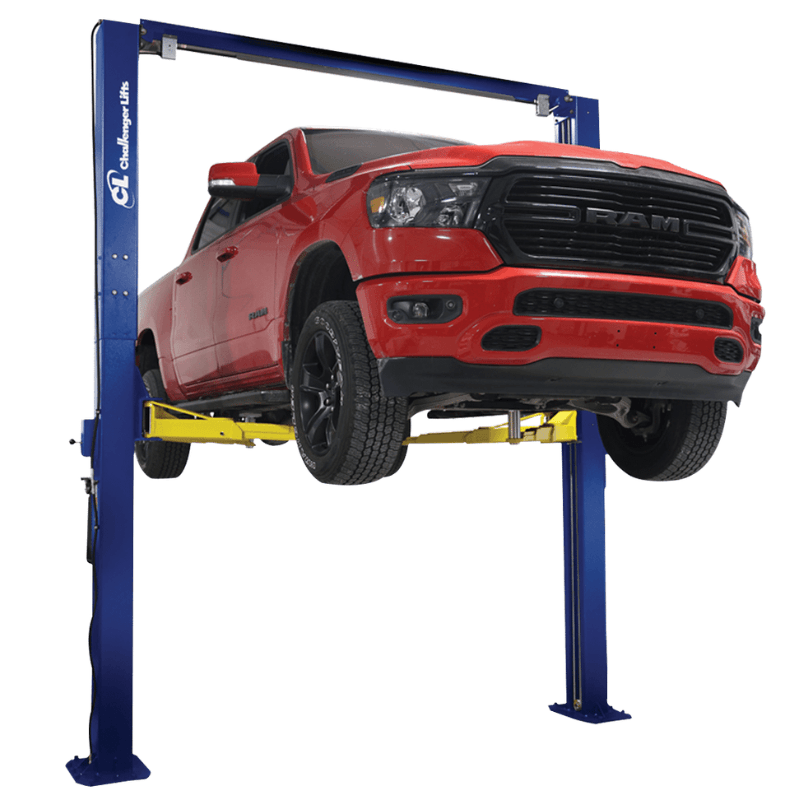

Challenger LE12-3S 12,000lb 2 Post Lift - ALI Certified

LE12 12K Two-Post Lift – Symmetric Heavy-Duty

The Challenger LE12 12K Two-Post Lift is designed for heavy-duty service bays, offering a durable and versatile lifting solution for vehicles up to 12,000 lbs. Adjustable column heights and stack adapters ensure proper clearance and ease of servicing, even for taller vehicles.

Built for long-term performance, the LE12 includes heavy-duty screw pads, dual rubber door guards, plated arm pins, and a padded overhead shut-off system. Its ALI/ETL certification guarantees safety and quality, making it a reliable choice for any professional garage or service facility.

Challenger LE12 Specification

• Model Number: LE12-3S

• Lifting Capacity: 12,000 lbs


• Lifting Configuration: Symmetric

• Rise Height: 77.75″

• Overall Height: 166″ / 175″

• Overall Width: 139.75″

• Drive-Thru Clearance: 103″

• Floor to Overhead Switch: 159.5″ / 168.5″

• Minimum Arm Reach: 27.5″

• Maximum Arm Reach: 54.5″

• Screw Pad Height: 5.25″ – 6.75″

• Inside Columns: 115″

• Ceiling Height Required: 167″ / 176″

• Motor / Voltage: 2HP, 208v–230v

• Speed of Rise: 61 s

• ALI/ETL Certified: Yes

• Colors Available: Red, Blue

• Concrete Requirements: Minimum of 4"-3500psi

LE12-3S Two-Post Lift Special Features

• 12,000 lb lifting capacity for a wide range of vehicles

• Symmetric lift configuration with 3-stage front and rear arms

• Adjustable column height for taller vehicles

• Single-point mechanical lock release for easy operation

• Heavy-duty polyurethane screw pads for multiple lifting points

• Padded overhead shut-off system to prevent vehicle damage

• Powder-coated finish for long-lasting durability

• Plated arm restraints and arm pins resist rust

• Dual integrated rubber door guards protect vehicle panels

• Stack adapters included; optional 2’ column extensions available

Challenger LE12-3S Manual

  Challenger LE12-3S Installation and Operations Manual

  Challenger LE12-3S Spec Sheet
