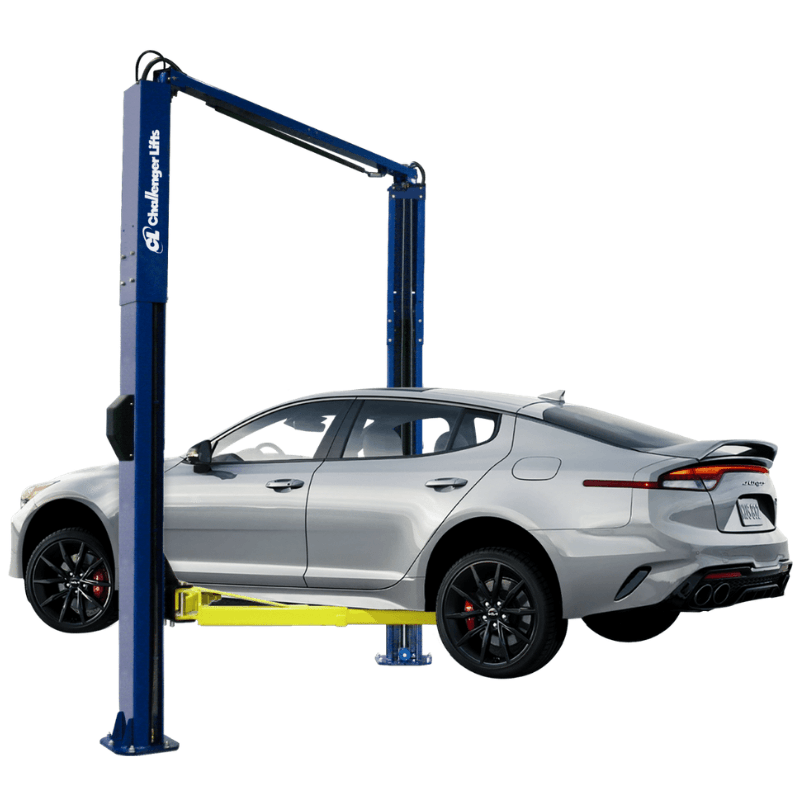

Challenger SA10 10000lbs Two-Post Lift - ALI Certified

SA10 10K Two-Post Lift – Symmetric & Asymmetric

Upgrade your service facility with the Challenger SA10 10K Two-Post Lift, engineered for versatility and performance. With a 10,000 lb. lifting capacity and adjustable configurations, this lift can be installed in either symmetric or asymmetric positions, providing maximum flexibility for a wide range of vehicles. Its innovative 3-stage front and 2-stage rear arms offer extended sweep and reach, making vehicle spotting faster and easier, saving you time in every service bay.

Built to last, the SA10 features premium double telescoping screw pads, a powder-coated finish, plated arm pins, and integrated rubber door guards, ensuring long-lasting durability and vehicle protection. Adjustable height and width options make this lift ideal for shops with space or ceiling constraints, while the single-point mechanical lock release allows quick and safe operation. Experience the ultimate combination of flexibility, performance, and reliability with the Challenger SA10.

SA 10 Specification

Symmetric

• Lifting Capacity: 10,000 lbs

• Lifting Configuration: Symmetric

• Arms: 3-stage front / 2-stage rear

• Rise Height: 74.5″

• Overall Height: 136.5″ / 142.5″

• Overall Height (Cylinder Extended): 142.5″

• 2’ Height Extension Available: Yes

• Overall Width: 129″ / 135″

• Drive-Thru Clearance: 92.75″ / 98.75″

• Floor to Overhead Switch: 131.125″ / 137.125″

• Front Arm Reach: 22.375″ / 41.5″

• Rear Arm Reach: 38.25″ / 59″

• Screw Pad Height: 4.75″ / 6.875″

• Inside Columns: 106.75″ / 112.75″

• Motor / Voltage: 2HP, 208–230V, 60Hz, 1Ph

• Speed of Rise: 43 s

• Ceiling Height Required: 12′

• ALI/ETL Certified: Yes

• Colors Available: Red, Blue

Asymmetric

• Lifting Capacity: 10,000 lbs

• Lifting Configuration: Asymmetric

• Arms: 3-stage front / 2-stage rear

• Rise Height: 74.5″

• Overall Height: 136.5″ / 142.5″

• Overall Height (Cylinder Extended): 142.5″

• 2’ Height Extension Available: Yes

• Overall Width: 131.5″ / 137.5″

• Drive-Thru Clearance: 88.5″ / 94.5″

• Floor to Overhead Switch: 131.125″ / 137.125″

• Front Arm Reach: 22.375″ / 41.5″

• Rear Arm Reach: 38.25″ / 59″

• Screw Pad Height: 4.75″ / 6.875″

• Inside Columns: 101.5″ / 107.5″

• Motor / Voltage: 2HP, 208–230V, 60Hz, 1Ph

• Speed of Rise: 43 s

• Ceiling Height Required: 12′

• ALI/ETL Certified: Yes

• Colors Available: Red, Blue

• Concrete Requirements: Minimum of 4"-3500psi

SA10 Two-Post Lift Special Features

• 10,000 lb lifting capacity for heavy-duty applications

• Symmetric or asymmetric installation for versatile service needs

• 3-stage front and 2-stage rear arms for greater sweep

• Double telescoping screw pads minimize need for adapters

• Adjustable height and width for installation flexibility

• Single-point mechanical lock release system

• Padded overhead shutoff for vehicle protection

• Powder-coated finish for durability

• Plated arm restraints and pins resist rust

• Dual integrated rubber door guards protect vehicle panels

Challenger SA10 Manual

  Challenger SA10 Installation and Operations Manual

  Challenger SA10 Spec Sheet
