Challenger SX14 Series 14K Scissor Alignment Lift; Open Front - ALI Certified

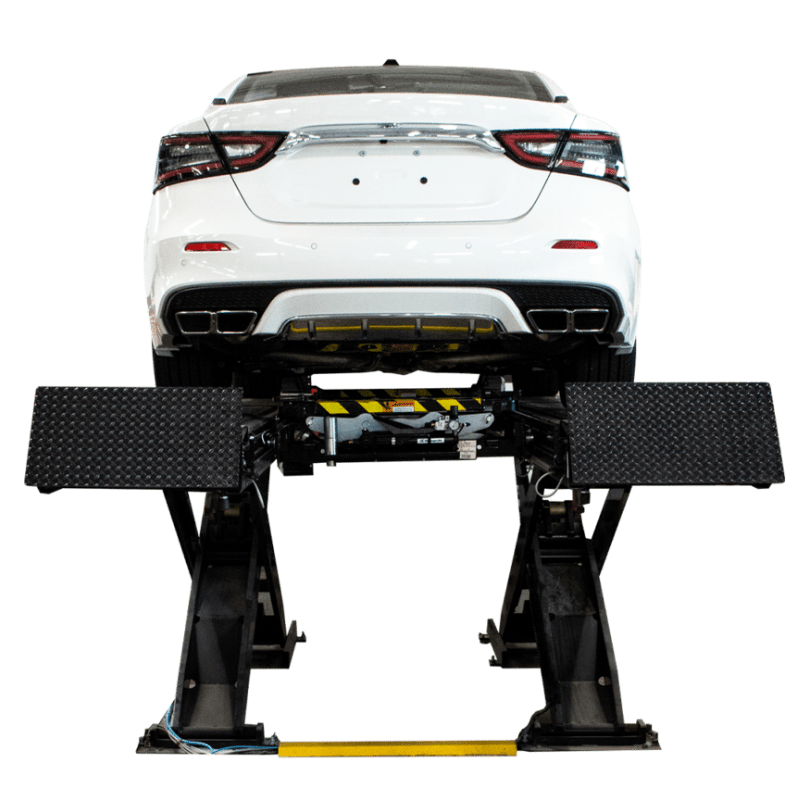

SX14 Series 14K Heavy-Duty Scissor Alignment Lift

Upgrade your alignment capabilities with the Challenger Lifts SX14 Series Scissor Lift, built for precision, efficiency, and versatility. Many shops struggle with limited alignment flexibility and inefficient setups when handling different vehicle types. The SX14 solves this by offering adjustable turn plates, wide runways, and a complete alignment package allowing you to service a broader range of vehicles with speed and accuracy.

Designed for professional performance, the SX14 features synchronized lifting, integrated LED lighting, and a single-point air lock release for smooth and safe operation. With both surface-mounted and flush-mount options, plus included rolling jacks and airline kit, this lift delivers a complete, ready-to-use alignment solution. Whether you're running a busy service center or upgrading your shop, the SX14 provides the tools and reliability needed to stay ahead.

Scissor Lift SX14 Series Specification

• Capacity: 14,000 lbs

• Installation: Surface Mount or Flush Mount

• Rise Height: 66.5" – 77"

• Overall Length: 265" – 283"

• Overall Width: 91.25"

• Runway Width: 25.5"

• Width Between Runways: 40"

• Lowered Height: 10.5" (standard models)

• Max Wheelbase: 183"

• Alignment Range: 70.75" – 176"

• Motor: 3HP

• Voltage: 208–240V (Single Phase, 23 FLA)

• Air Requirement: 90 – 120 PSI (20 CFM)

• Rise Time: 75 seconds

• Minimum Bay Size: 168" × 336"

• Certification: ALI / ETL Certified

• Color: Black

• Concrete Requirements: Minimum of 6"-3500psi

SX14 Series Scissor Lift Special Features

• 14,000 lb lifting capacity

• Includes (2) rolling jacks, turn plates, and airline kit

• Extra-wide runways for single and dual rear wheel vehicles

• Adjustable turn plates for precise alignment

• Photo cell system ensures synchronized lifting

• Integrated LED lighting for improved visibility

• Maintenance-reduced rear slip plates with sealed bearings

• Twin hydraulic cylinders for smooth performance

• Approach ramps with rollers to reduce noise and floor wear

• Single-point air-actuated lock release system

• Optional extended ramps for low-clearance vehicles

• Surface or flush mount installation options

• Durable powder-coated finish

• ALI/ETL certified for safety and reliability

Challenger SX14 Series Manual

  Challenger SX14 Series Installation and Operations Manual

  Challenger SX14 Series Spec Sheet
