Challenger VLE10 10K Versymmetric 2 Post Lift - ALI Certified

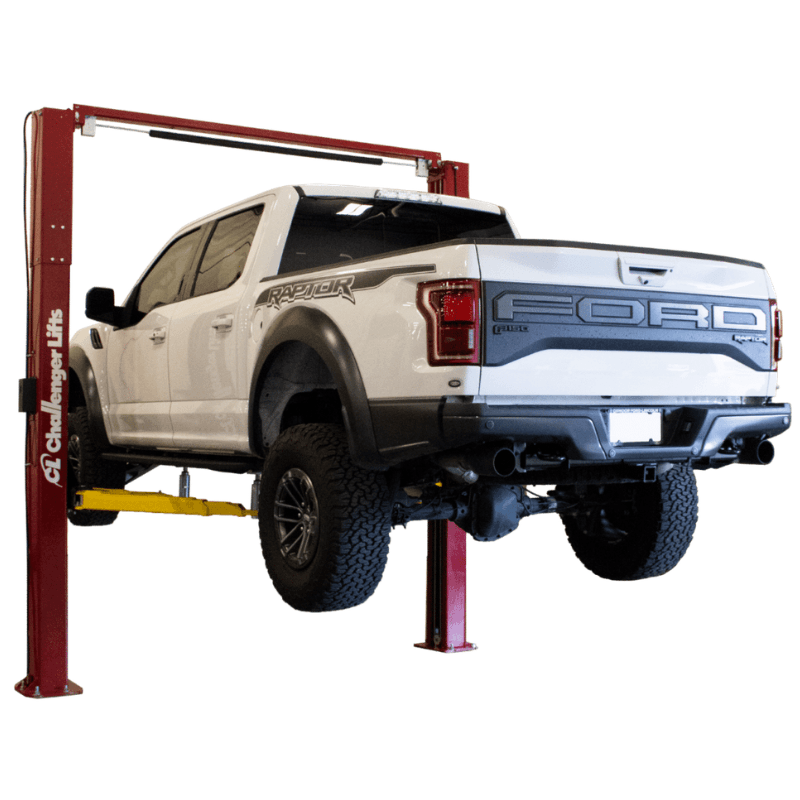

VLE10 10K Versymmetric Two-Post Lift

Upgrade your service bay with the Challenger VLE10 10K Versymmetric Two-Post Lift, designed to provide maximum versatility and efficiency. Featuring industry-leading Versymmetric® Technology, this lift can accommodate a wide range of vehicles, including the most popular models on the market. Its 3-stage front and 2-stage rear arms provide extensive sweep, allowing both symmetric and asymmetric lifting in the same bay.

Built for long-lasting performance, the VLE10 includes premium powder-coated finishes, plated arm pins, rubber door guards, and a padded overhead shut-off system to protect vehicles. Its compact standard height is ideal for low-ceiling bays, while the optional extended height allows service of taller vehicles. Combine durability, safety, and flexibility with the VLE10 for your automotive service needs.

Two-Post Lift VLE10 Specification

• Lifting Capacity: 10,000 lbs

• Lift Configuration: Symmetric and Asymmetric

• Arm Configuration: 3-Stage Versymmetric® Front / 2-Stage Rear

• Max Load Per Arm: 2,500 lbs

• Rise Height (screw pads at highest position): 74.75″

• Overall Height: Standard: 143.875″ / Extended: 167.875″

• Overall Width: 131.625″

• Drive-Thru Clearance: 98.375″

• Floor to Overhead Switch: Standard: 137″ / Extended: 161″

• Front Arm Reach: 22.3125″ – 39.375″

• Rear Arm Reach: 38.375″ – 55.375″

• Screw Pad Height: 4.25″ – 6.75″

• Between Columns: 110.25″

• Motor / Voltage: 2HP, 208–230V, 60Hz, 1Ph

• Rise Time: 44 s

• Ceiling Height Required: Standard: 12′ / Extended: 14′

VLE10 Two-Post Lift Special Features

• 10,000 lb lifting capacity for a wide range of vehicles

• Symmetric and asymmetric lift configurations

• 3-stage Versymmetric® front arms and 2-stage rear arms

• Double telescoping screw pads with rubber foot pads

• Padded overhead shut-off system prevents vehicle damage

• Single-point mechanical lock release system (pulley-less)

• Rubber door guards protect vehicle doors

• Powder-coated finish for long-lasting durability

• Plated arm restraints and arm pins resist rust

• Compact standard height fits bays with 12′ ceiling

• Extended height option for taller vehicles

• ALI Certified

Challenger VLE10 Manual

  Challenger VLE10 Installation and Operations Manual

  Challenger VLE10 Spec Sheet
