Daytona LFPA12 12,000 lbs 4-Post Alignment Lift

SKU LFPA12
$8,795.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

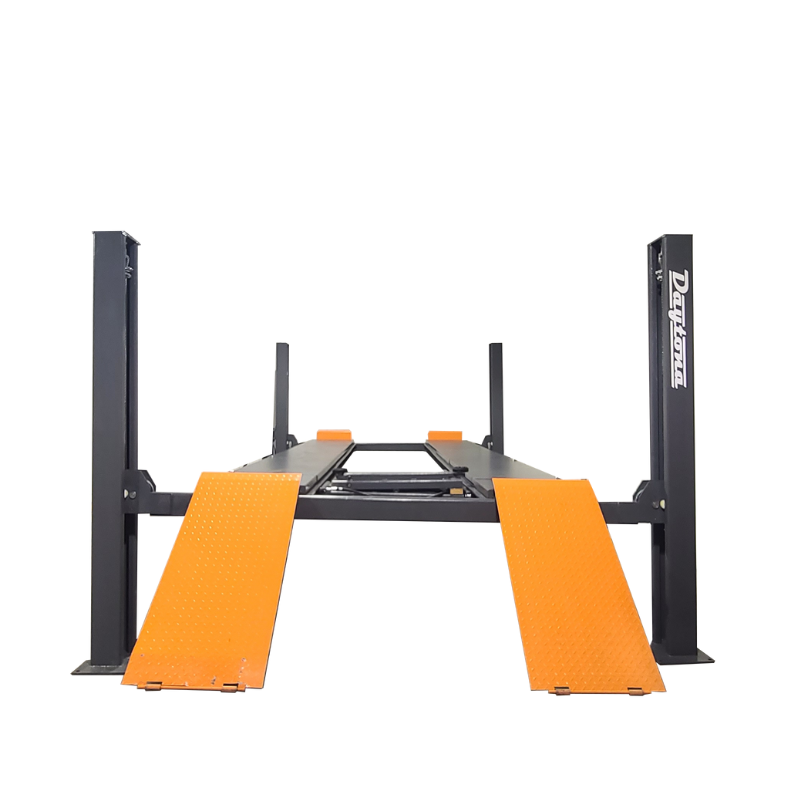

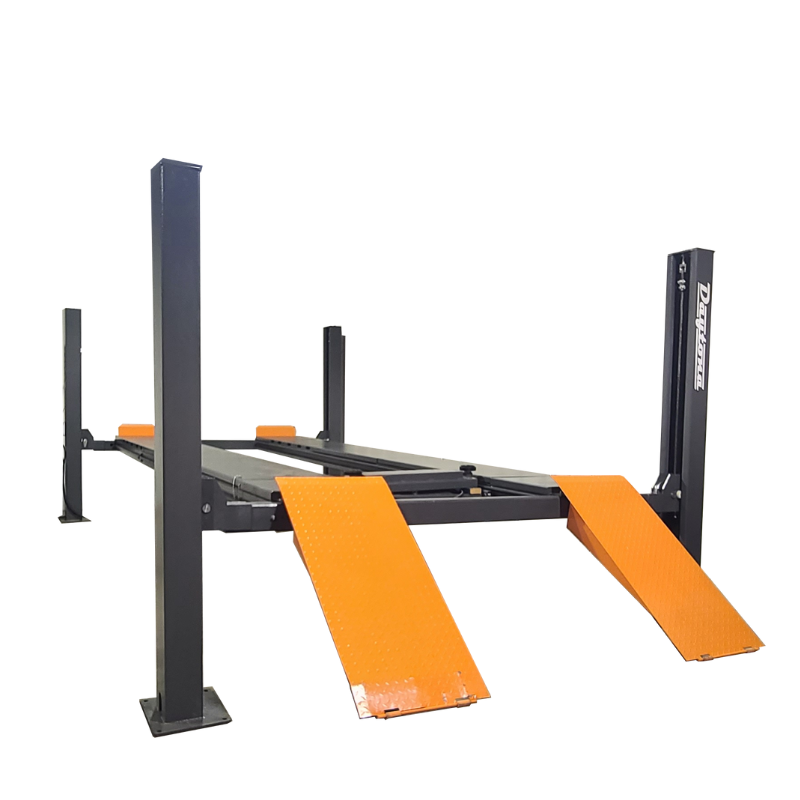

LFPA12 12,000lb 4-Post Alignment Lift with Built-In Slip Plates & Adjustable Turntables

The Daytona LFPA12 12,000lb 4-Post Alignment Lift is a heavy-duty solution built for professionals who demand performance, precision, and durability. Ideal for alignment work and heavy vehicles, this lift features a ladder lock system with manual release and multiple locking positions for maximum safety and control during lifting.

Designed to accommodate dual rear wheel pickup trucks, the LFPA12 boasts a wide 25.5" runway, aircraft-grade lifting cables, and a powerful 5" hydraulic cylinder. Built-in slip plates and adjustable turntables streamline alignment services, while the bright orange tilting ramps ensure safer vehicle loading. The matted dark grey powder coat adds a sleek, durable finish for long-term shop use.

With flexible power input and rugged post construction, this lift is perfect for high-traffic automotive shops and serious mechanics. A powerful 4 HP motor and 240V system ensures smooth operation, while its high weight capacity handles larger trucks and SUVs with ease.

4-Post Parking Lift LFPA12 Specification

  • Lifting Capacity: 12,000 lbs

  • Power: 240V / 4 HP / 15 Amp / 1-Ph / 60 Hz

  • Rise Time / Drop Time: 110 seconds

  • Clearance Under Runways (A): 69″

  • Overall Height (B): 101″

  • Overall Length Including Posts (C): 236.5″

  • Pump Extension (D): 14″ from post

  • Overall Width Including Posts (E): 143.5″

  • Inner Width Between Posts (F): 125″

  • Runway Span (G): 95″

  • Runway Width (H): 25.5″

  • Runway Length (I): 217.25″

  • Inner Length Between Posts (J): 210.25″

  • Post Dimensions: 9.75″ x 6.75″

  • Post Base Size: 13.5″ x 16.5″

LFPA12 12,000 lbs  4-Post Alignment Lift Special Features

  • Ladder lock system with manual release and locking every 3.5″ starting at 21″

  • Tilting orange approach ramps for improved visibility and safety

  • Built-in slip plates and adjustable turntables for alignment tasks

  • Large 5″ heavy-duty hydraulic cylinder

  • Aircraft-quality lifting cables for superior reliability

  • Wide 25.5″ runways fit a variety of vehicles

  • Dark grey matted powder coat finish for durability

  • Compatible with most dual rear wheel pickup trucks

  • Daytona 5-2-1 Warranty
    • 5 Year Structural
    • 2 Year Electric, Cylinders, Seal Kits
    • 1 Year Defective Parts

Daytona LFPP10 Manual

Daytona LFPA12 Product Brochure   Daytona LFPA12 Product Brochure



Daytona LFPA12 12,000 lbs 4-Post Alignment Lift Diagram
