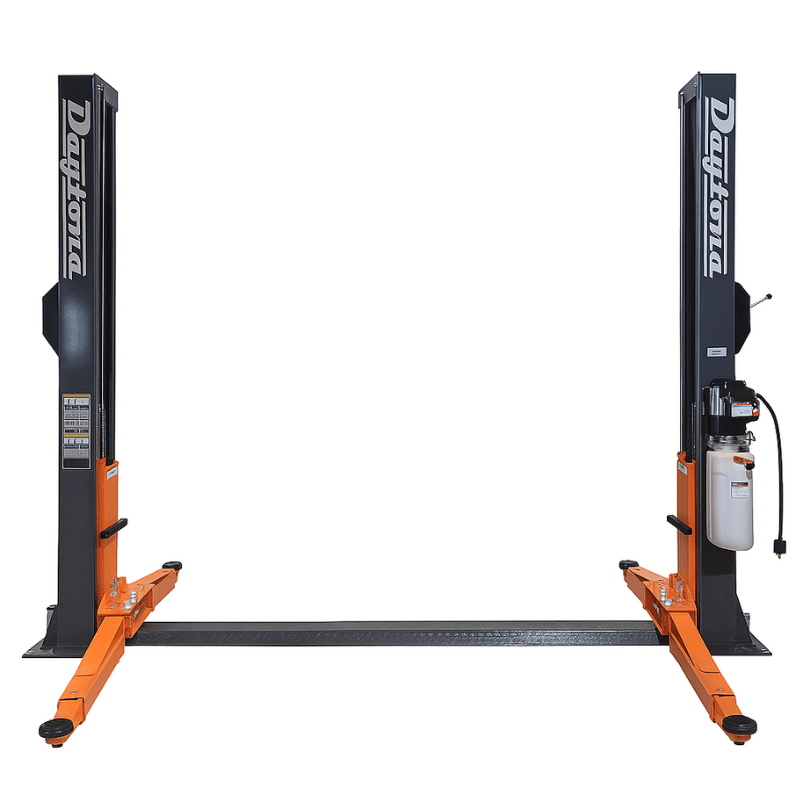

Daytona LTPF9 9,000lb 2-Post Floorplate Lift - Low Ceiling

LTPF9 9,000lb 2 Post Lift

The Daytona LTPF9 2-Post Floorplate Lift is built for reliability, safety, and performance in any professional or home automotive workshop. With a 9,000 lb lifting capacity, it provides the strength to handle most cars, light trucks, and SUVs with ease.

This lift features a chain-over-hydraulic system for smooth and controlled lifting, along with automatic safety locks and a single-point lock release for secure operation. High polymer polyethylene slide blocks offer superior wear resistance, reducing maintenance and ensuring long-lasting durability.

Designed for versatility and operator convenience, the LTPF9 includes screw-up pads, rubber door guards, and standard truck adapters. The height limit switch and powder-coated finish add safety and longevity, while the three-stage front arms make vehicle positioning simple and precise.

2 Post Lift LTPF9 Specification

• Capacity: 9,000lbs

• Max Lifting Height: 74.8"

• Drive Thru Clearance: 98.9"

• Inside Column Widith: 110.5"

• Column Height: 110"

• Overall Width: 131.2 (including baseplates)

• Power: 240V / 3HP / 13A / PH1 / 60Hz

• Shipping Dimensions (Lift): 114″ L × 18″ W × 30″ H – 1,250 lbs

• Shipping Dimensions (Pump): 31″ L × 12″ W × 11″ H – 60 lbs

LTPF9 9,000lb 2-Post Floorplate Lift Special Features

• Strong 9,000 lb lifting capacity for versatile use

• Chain-over-hydraulic design ensures smooth lift operation

• Automatic safety locks with single-point release for convenience

• Arm Style: Asymmetric

• Wear-resistant slide blocks extend service life

• Powder-coated finish resists rust and corrosion

• Three-stage front arms for flexible vehicle positioning

• Rubber door guards protect vehicle panels

• Height limit switch enhances operational safety

• Includes truck adapters and screw-up pads for added versatility

Daytona LTPF9 Manual

  Daytona LTPF9 User Manual

  Daytona LTPF9 Diagram
