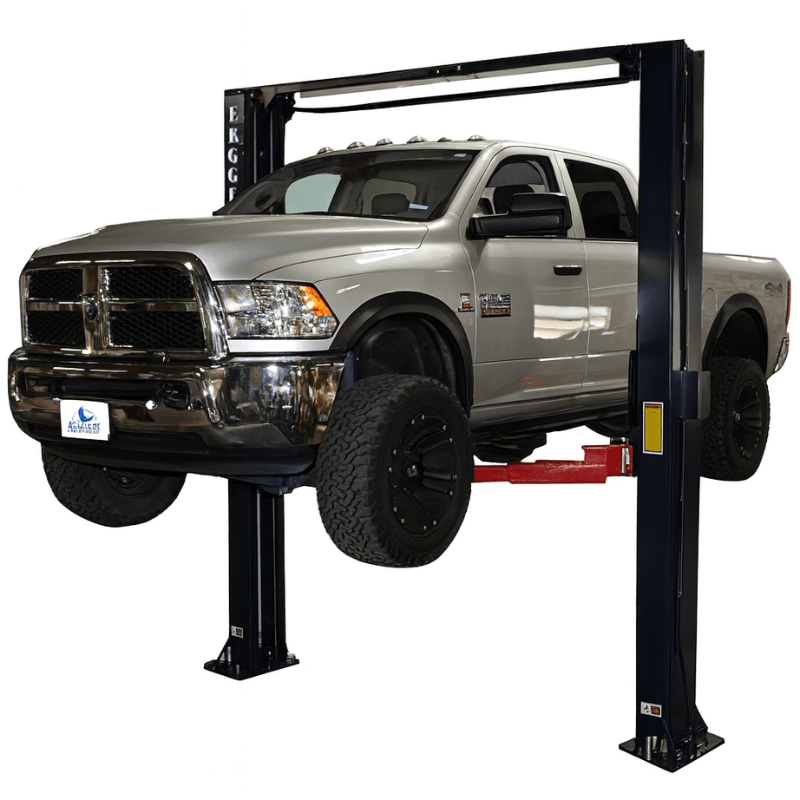

Eagle EAG-15K 15,000 lbs Heavy Duty 2 Post Lift – Symmetric Arms

EAG-15K 15,000 lb. Heavy-Duty 2-Post Vehicle Lift

Heavy-duty trucks and commercial vehicles demand a lift with exceptional strength, stability, and lifting height. Standard automotive lifts often lack the capacity and durability needed for servicing larger vehicles, making repairs more difficult and limiting shop productivity.

The Eagle EAG-15K Heavy-Duty 2-Post Lift is built to handle the toughest lifting applications with a massive 15,000 lb. capacity and an overhead symmetric design. Equipped with heavy-duty 5-inch square tube lifting arms, dual 3-inch hydraulic cylinders, and tall 40-inch carriages, this lift provides outstanding stability for servicing trucks, vans, fleet vehicles, and commercial equipment. Automatic arm restraints, integrated safety shut-off, and included truck adapters make it a dependable solution for professional repair shops requiring maximum performance and reliability.

2 Post Lift EAG-15K Specification

• Model: EAG-15K

• Product Type: Heavy-Duty 2-Post Vehicle Lift

• Lift Style: Overhead Symmetric

• Lifting Capacity: 15,000 lbs.

• Overall Height: 180"

• Overall Width: 148"

• Base Width: 136"

• Inside Column Width: 119.5"

• Drive-Through Clearance: 106.89"

• Front Arm Reach: 38"–52"

• Rear Arm Reach: 38"–52"

• Minimum Pad Height: 8"

• Maximum Lifting Height: 80"

• Maximum Lifting Height with Adapters: 87"

• Maximum Load Per Arm: 3,750 lbs.

• Motor: 2.5 HP

• Power Requirement: 220V, Single-Phase, 20 Amp

• Lifting Time: Approximately 60 Seconds

• Concrete Requirements: Minimum of 5"-3000psi

• Shipping Weight: 2,570 lbs.

• Shipping Dimensions: 35" W × 126" L × 55" H

EAG-15K 15,000 lb. Heavy Duty 2 Post Lift Special Features

• 15,000 lb. lifting capacity for heavy-duty vehicle service

• Ideal for trucks, commercial vehicles, fleet vehicles, and vans

• Overhead symmetric design provides maximum lifting stability

• Heavy-duty 5" square tube lifting arms for increased durability

• Tall 40" carriages improve lifting support and strength

• Dual 3" hydraulic cylinders with low-friction chain rollers

• Automatic arm restraint system enhances operator safety

• Automatic overhead safety shut-off system

• Includes spin-up lifting pads and truck adapters

• Free mounting hardware included

• Durable powder-coated finish resists corrosion and wear

• Designed for demanding commercial repair facilities

• Smooth hydraulic lifting operation with approximately 60-second rise time

Warranty

• 1-Year Limited Parts Warranty

• Warranty covers replacement parts for defects in materials and workmanship

• Ground shipping on warranty parts included within the United States and Canada for one year

• Labor not included

• Excludes normal wear items, improper installation, misuse, abuse, or lack of maintenance

EAG-15K Manual

  Eagle EAG-15K Installation and Operations Manual
