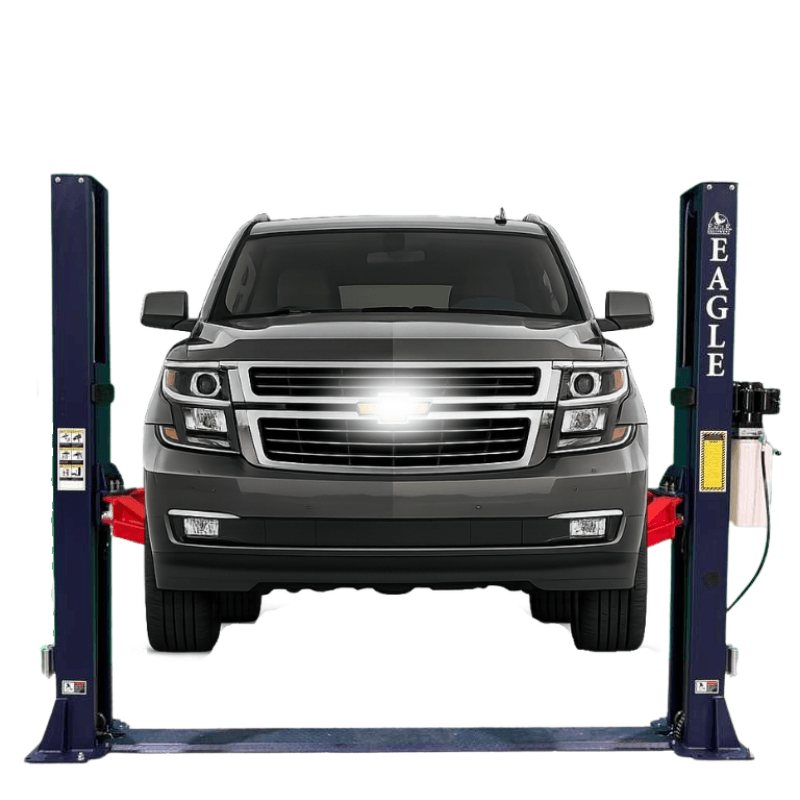

Eagle EAG-9F 9,000 Lbs 2-Post Lift – Floor Plate Asymmetric Arms

EAG-9F 9,000 lb. 2-Post Lift – Floor Plate Asymmetric Arms

Not every workshop has the ceiling height required for an overhead lift, but that doesn't mean you have to compromise on lifting performance. A floor plate lift provides an excellent solution for garages with lower ceilings while still delivering the strength and safety needed for professional automotive service.

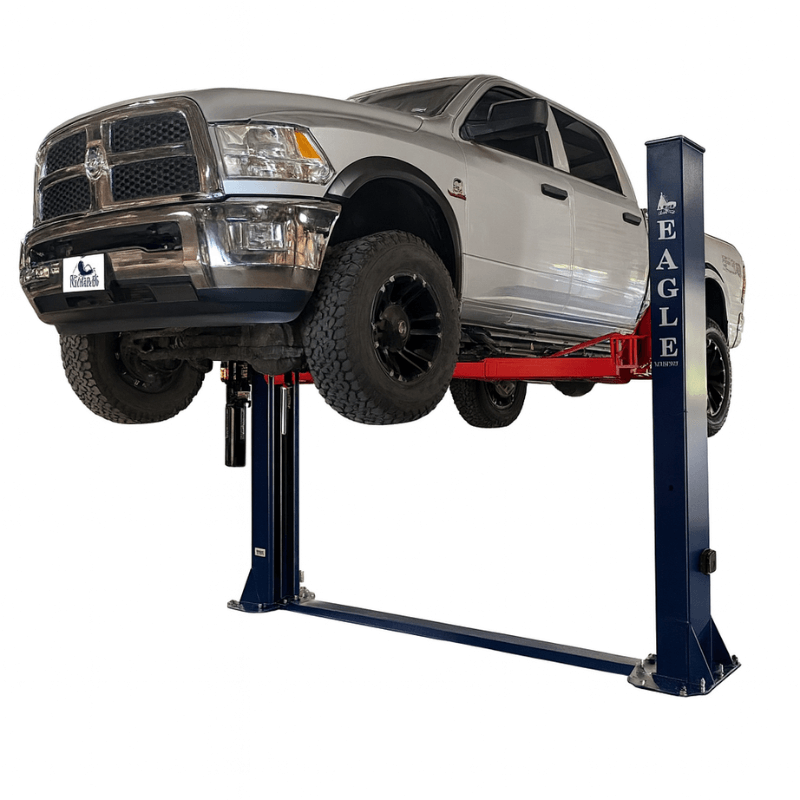

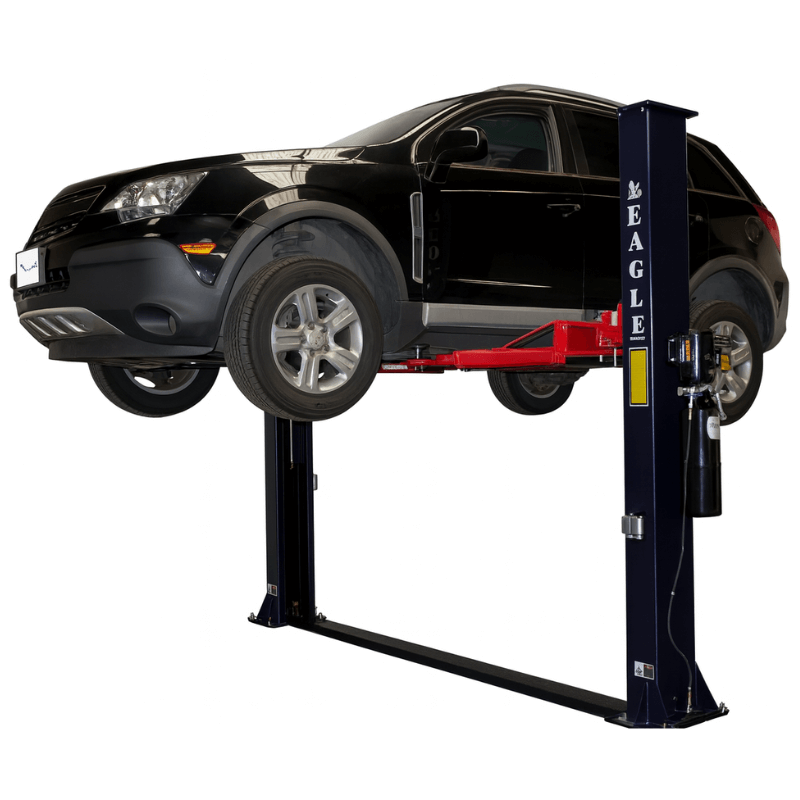

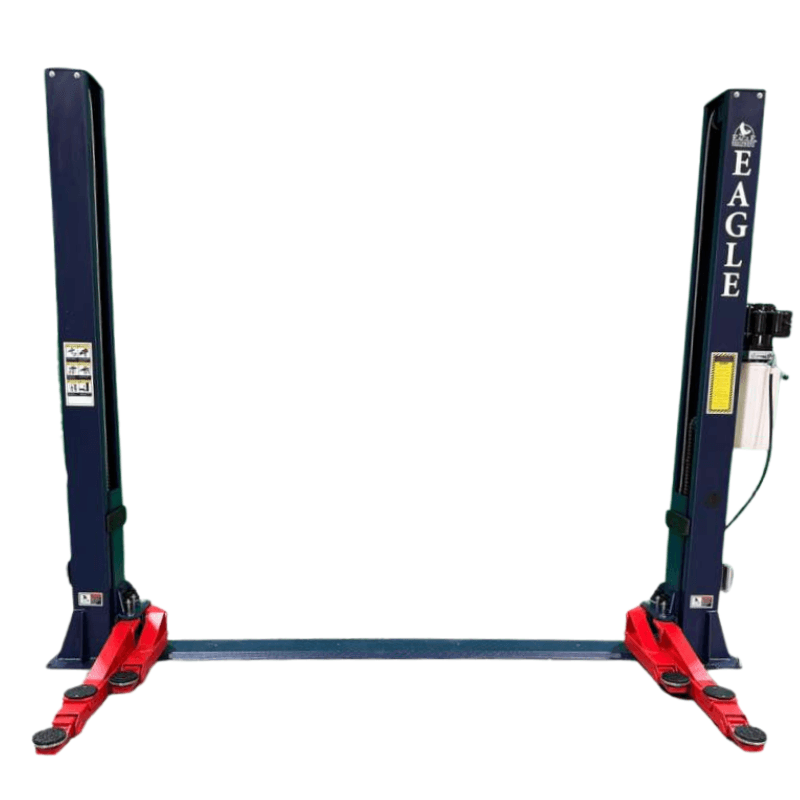

The Eagle EAG-9F 2-Post Lift combines a 9,000 lb. lifting capacity with a floor plate asymmetric design, making it ideal for servicing cars, SUVs, and light-duty trucks. Its asymmetric arm configuration improves door clearance for easier vehicle entry and exit, while heavy-duty hydraulic cylinders, automatic arm restraints, equalizing cables, and multiple hydraulic safety systems provide dependable operation every day. Designed for commercial repair facilities and home garages alike, the EAG-9F offers professional performance in applications where overhead clearance is limited.

2-Post Lift EAG-9F Specification

• Model: EAG-9F

• Product Type: Floor Plate 2-Post Vehicle Lift

• Lift Style: Asymmetric

• Lifting Capacity: 9,000 lbs.

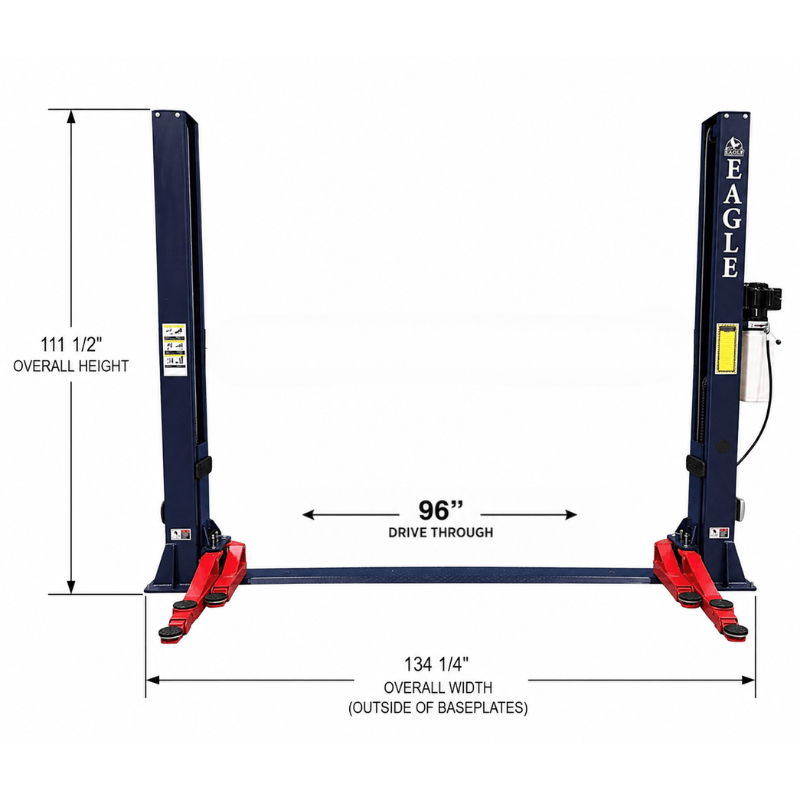

• Overall Height: 111.5"

• Overall Width (Outside Base Plates): 134.25"

• Overall Width (Outside Columns): 124.75"

• Inside Column Width: 110"

• Drive-Through Clearance: 96"

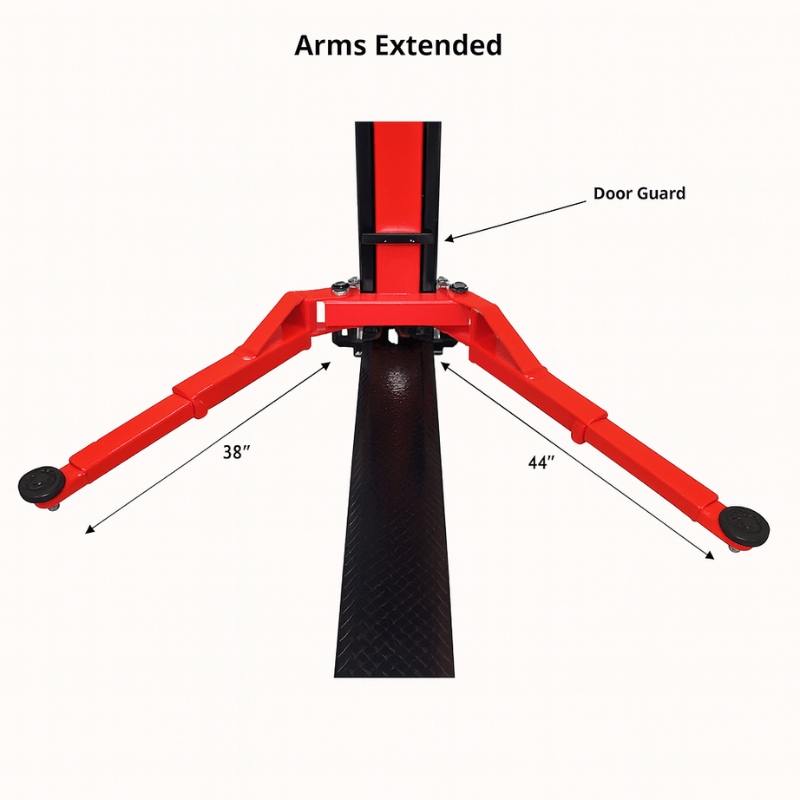

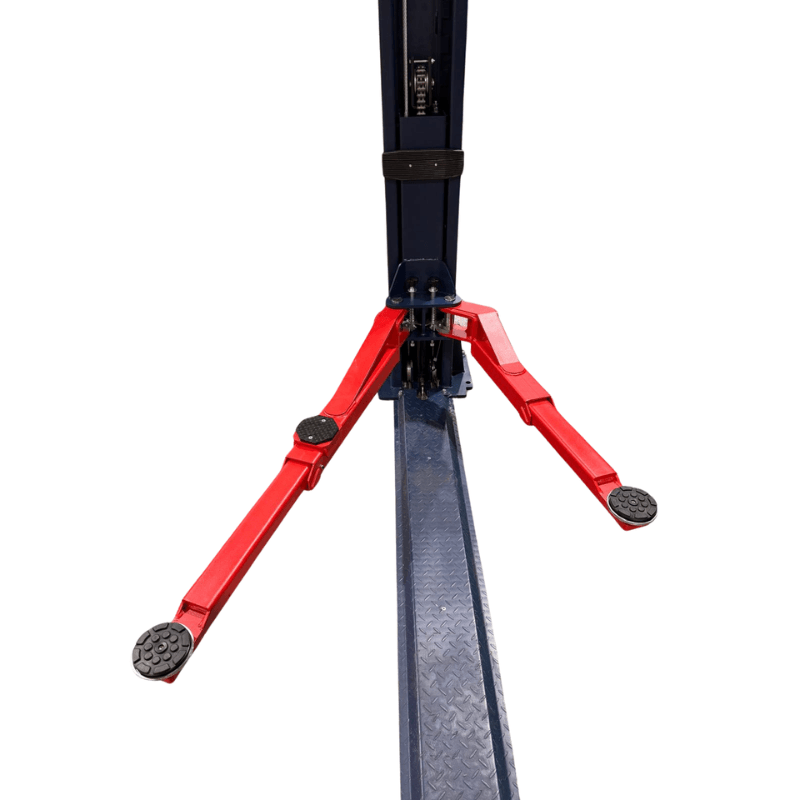

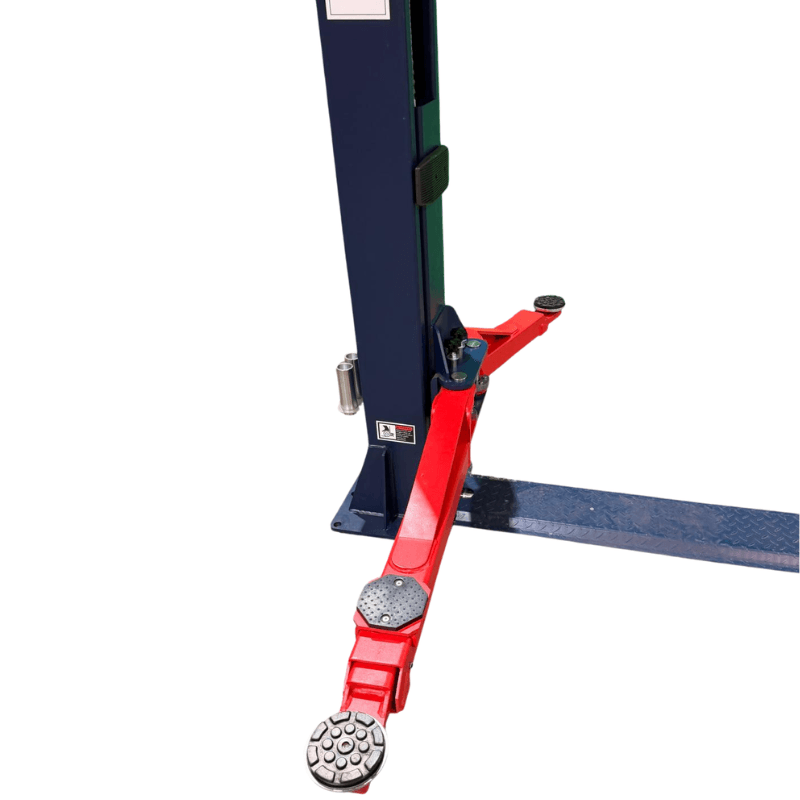

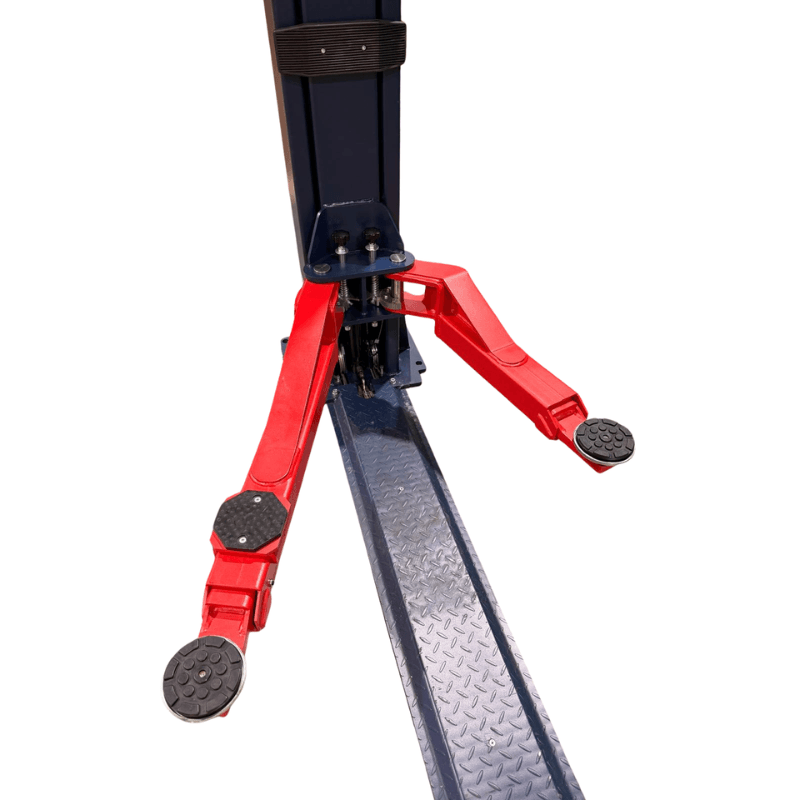

• Front Arm Reach: 39"–57.5"

• Rear Arm Reach: 27.95"–57.5"

• Minimum Pad Height: 5"

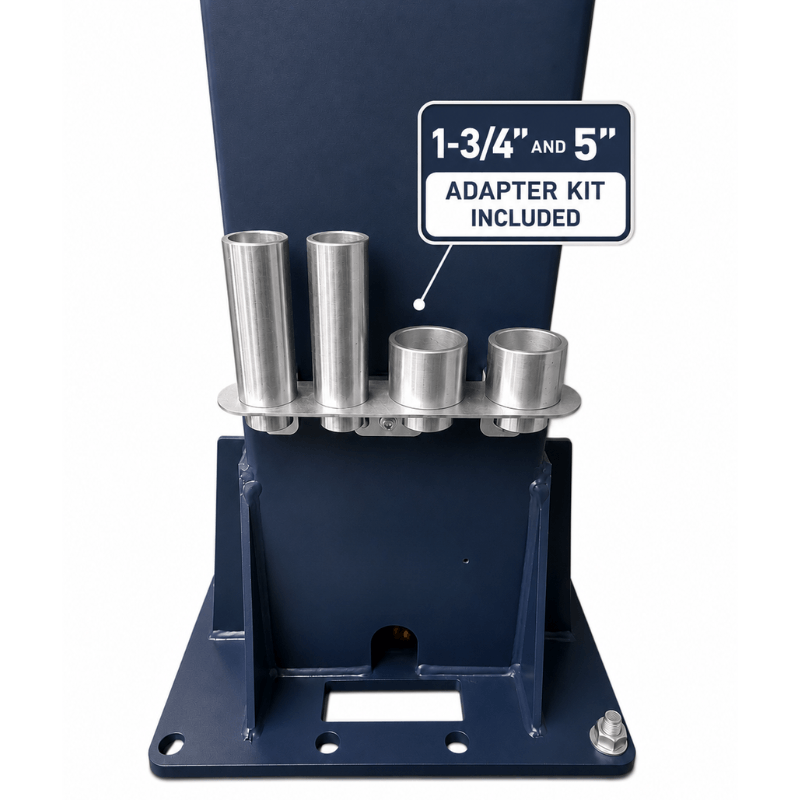

• Height Adapter Range: 1.75"–5"

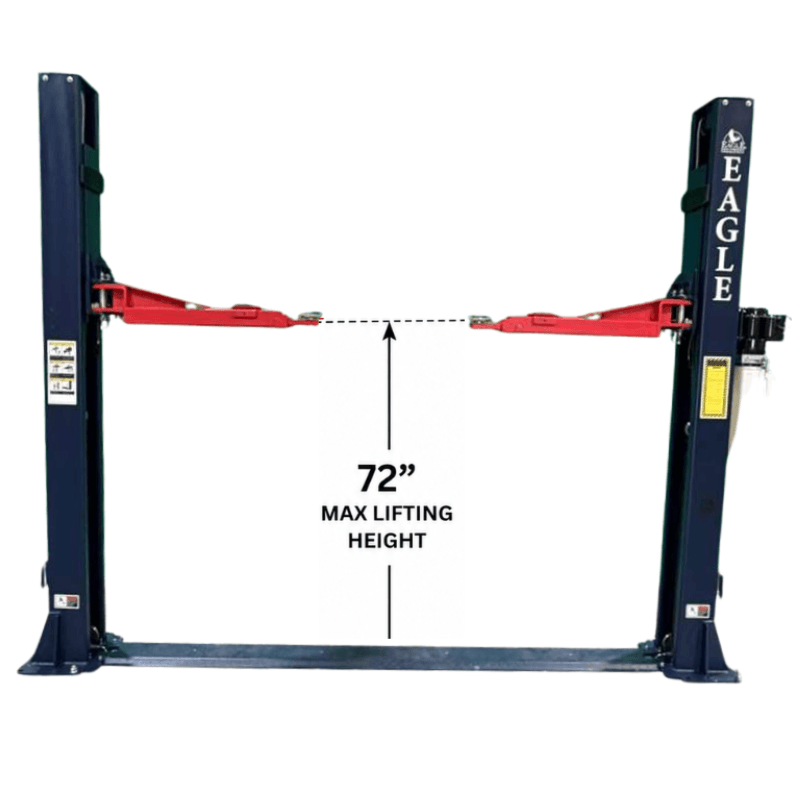

• Maximum Lifting Height (Pads Only): 72"

• Time to Full Rise (No Load): Approximately 45 Seconds

• Motor: 2 HP (1.5 kW)

• Power Supply: 220V/380V, 50/60 Hz

• Minimum Concrete Requirement: 4" Thick, 3,000 PSI or Greater

• Shipping Weight: 1,500 lbs. (Including Power Unit)

• Shipping Dimensions: 116" L × 21" W × 30.5" H

EAG-9F 9,000 Lbs 2-Post Lift Special Features

• 9,000 lb. lifting capacity for professional automotive service

• Floor plate design ideal for facilities with lower ceiling heights

• Asymmetric arm configuration provides improved vehicle door clearance

• Suitable for passenger cars, SUVs, and light-duty trucks

• Heavy-duty hydraulic lifting system for reliable performance

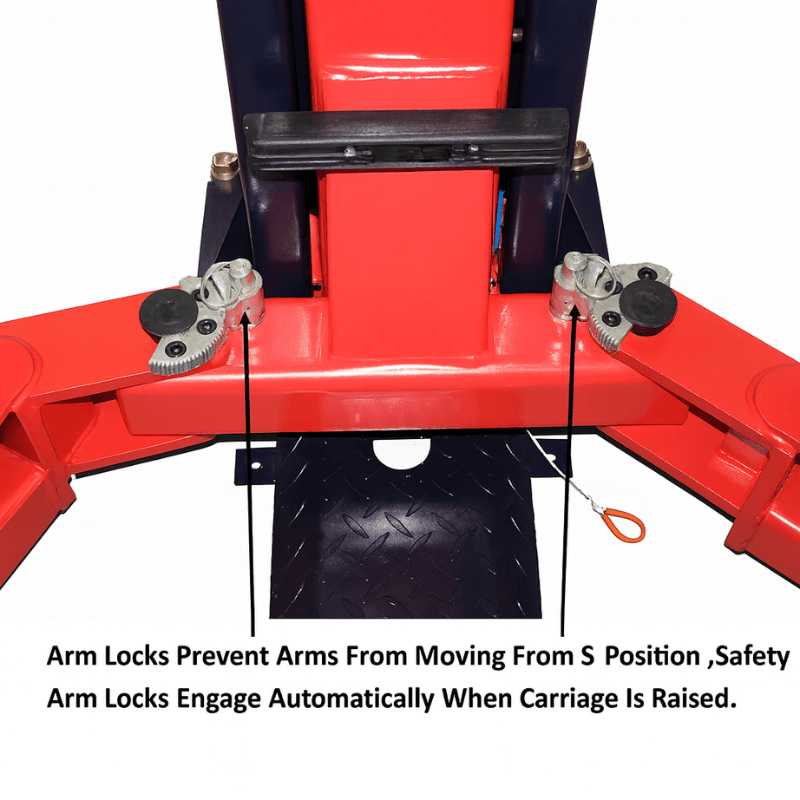

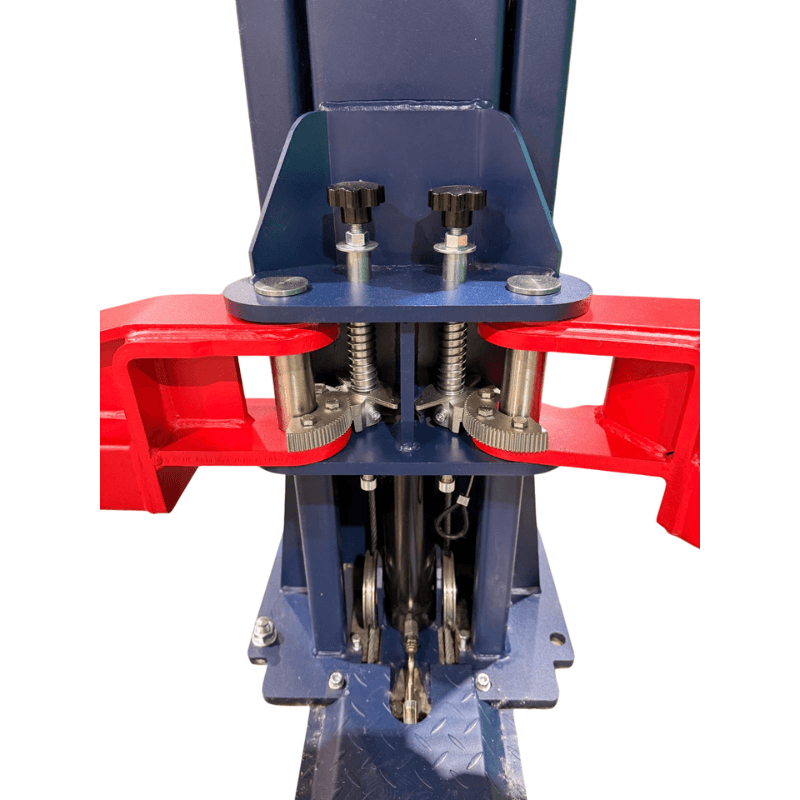

• Automatic arm restraints prevent arm movement under load

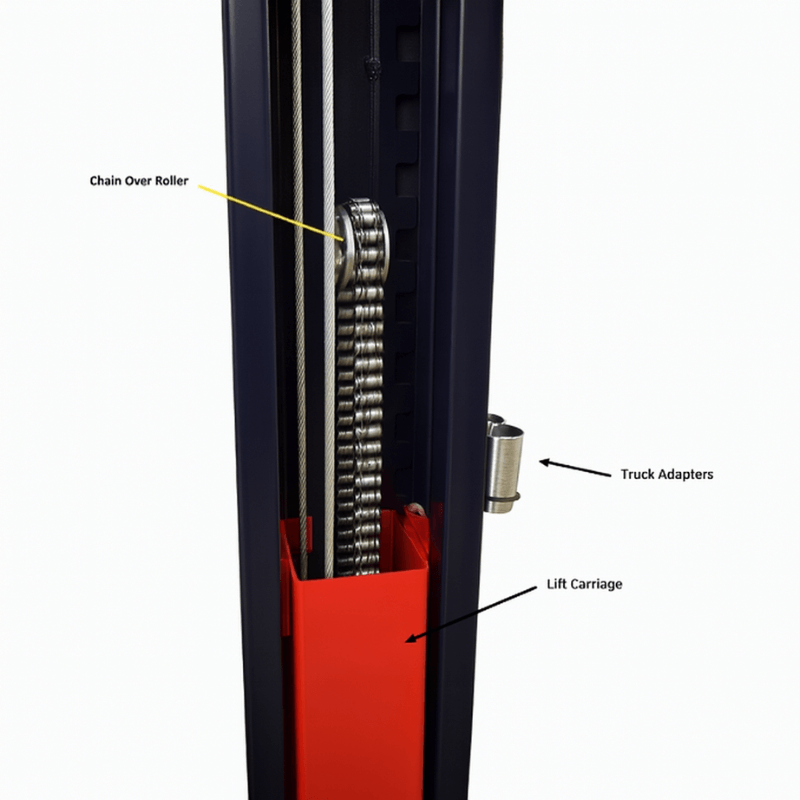

• Equalizing cable system maintains level lifting

• Dead-man style controls enhance operator safety

• Electric collision prevention switch helps prevent overhead contact

• Hydraulic pipe break valves reduce the risk of sudden lowering

• Pressure relief valve limits hydraulic pressure for added protection

• Durable construction designed for commercial shops and home garages

• Fast lifting cycle with approximately 45-second rise time

• Excellent access for brake, suspension, exhaust, tire, and maintenance work

Warranty

• 1-Year Limited Parts Warranty

EAG-9F Manual

  Eagle EAG-9F Installation and Operations Manual
