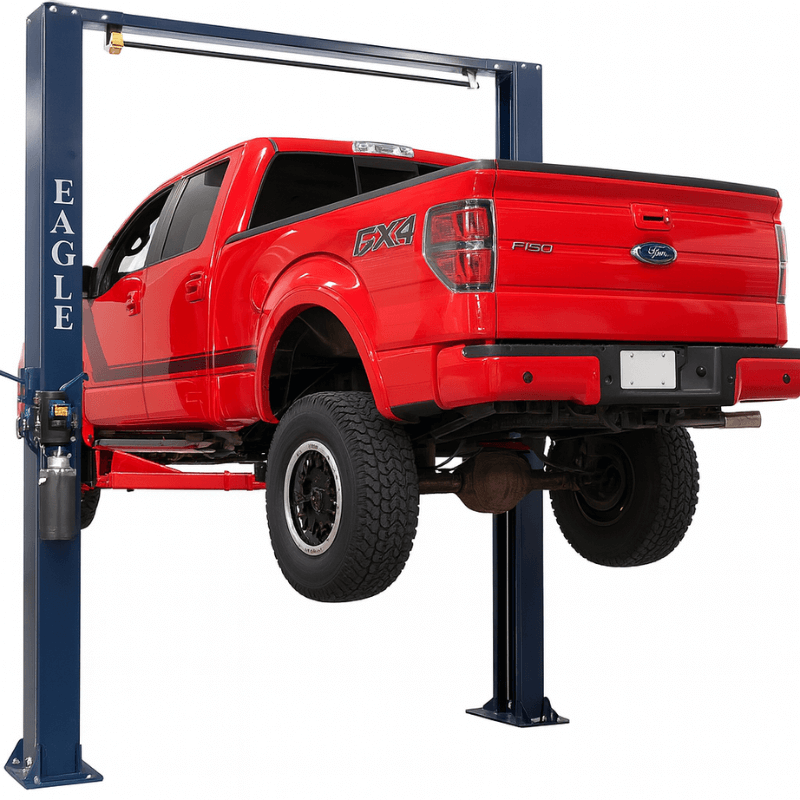

Eagle MTP-12C 12,000 Lbs 2-Post Lift – Symmetric Arms
- ✓ Family-Run Support — Right Here in the USA. No Call Centers.
- ✓ Ships in 3-5 Business Days
- ✓ Free Warehouse Pickup Options
- ✓ Better Business Bureau (BBB) Accredited

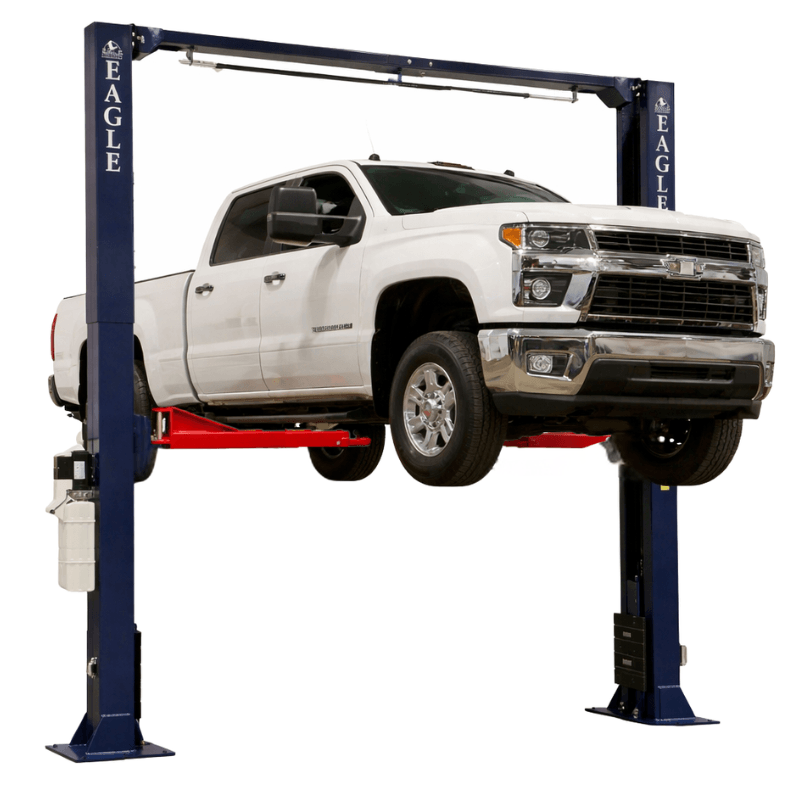

The Eagle MTP-12C 12,000 lb 2-Post Lift is a powerful, shop-grade lifting solution built for heavy-duty cars, work trucks, and vehicles in the 1-ton range. Designed with a symmetric overhead structure, it provides reliable support for larger wheelbases while keeping the shop floor completely open beneath the vehicle. This allows easy use of transmission jacks, rolling oil drains, jack stands, and other essential shop equipment without obstruction.
Equipped with dual direct-drive cylinders and high-tension steel cable equalization, the MTP-12C delivers smooth, synchronized lifting across both columns. Automatic carriage locks engage independently in each post for maximum stability, while the padded overhead shut-off bar prevents accidental vehicle contact during raising. The durable powder-coated finish, heavy-duty arm restraints, and reinforced construction make this lift ideal for busy commercial shops that demand long-term reliability.
Technicians benefit from fully telescoping symmetric arms, drop-in lifting pads, included height extensions, and a convenient single-point lock release that speeds up operation. Powered by Eagle’s dependable 220V metal-tank power unit, the MTP-12C ensures consistent performance and quick lifting, reaching full rise in just 50 seconds. With strong safety features, balanced operation, and robust lifting power, this model delivers exceptional capability for any professional service facility.

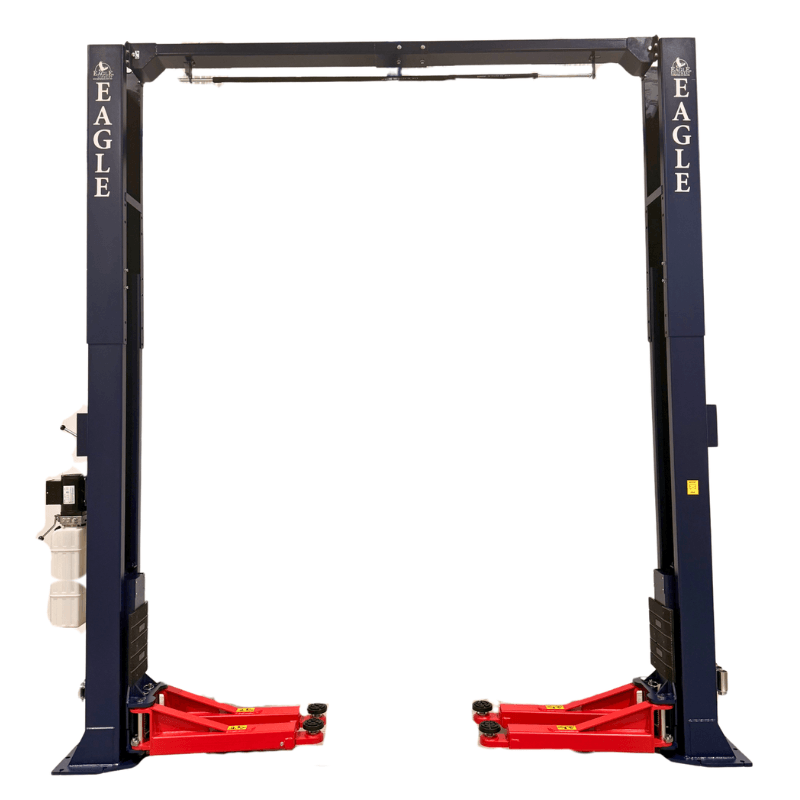

Style: Overhead Symmetric
Lifting Capacity: 12,000 lbs
Overall Height: 154"
Overall Width: 135.5"
Top Width (Post to Post): 127.25"
Inside Columns: 112"

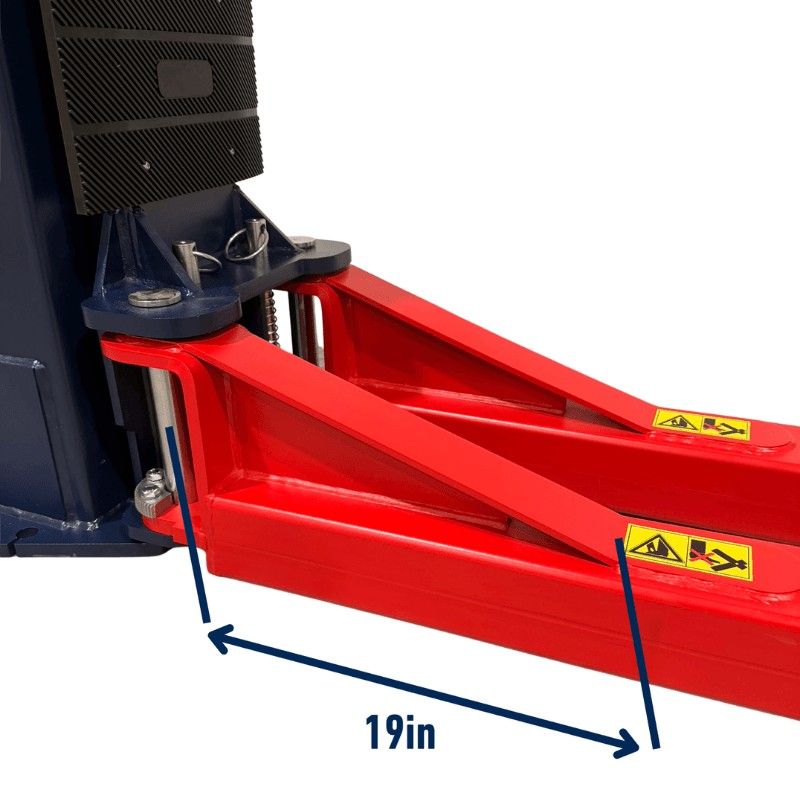

Front Arm Reach: 33"–49"
Rear Arm Reach: 33"–49"
Minimum Pad Height: 4.75"
Lifting Height: 72"
Lifting Height with Extensions: 76"
Drive-Through Clearance: 98.5"
Motor/Power Unit: 2.5 HP / 1-Phase / 220V / 20 Amp
Time to Full Rise: 50 seconds
Max Load per Arm: 3,000 lbs
Shipping Dimensions: 157" L x 30" W x 36" H
12,000 lb lifting capacity
Symmetric overhead design for larger wheelbases
Clear-floor layout for easy equipment movement
Dual direct-drive hydraulic cylinders
High-tension equalization cables for balanced lifting
Automatic carriage locks in both posts
Padded overhead safety shut-off bar

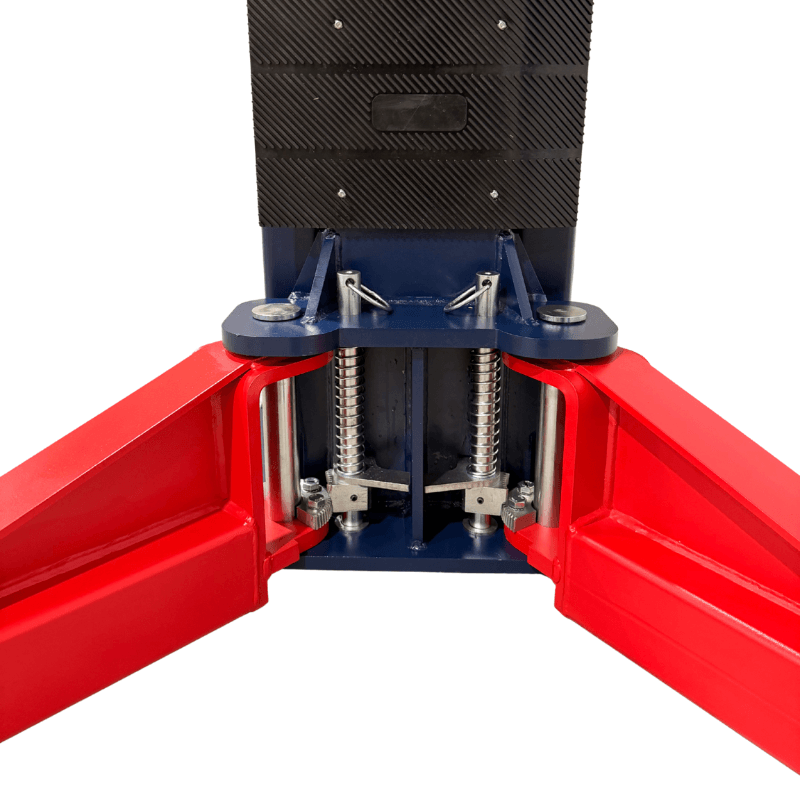

Heavy-duty self-engaging arm restraints

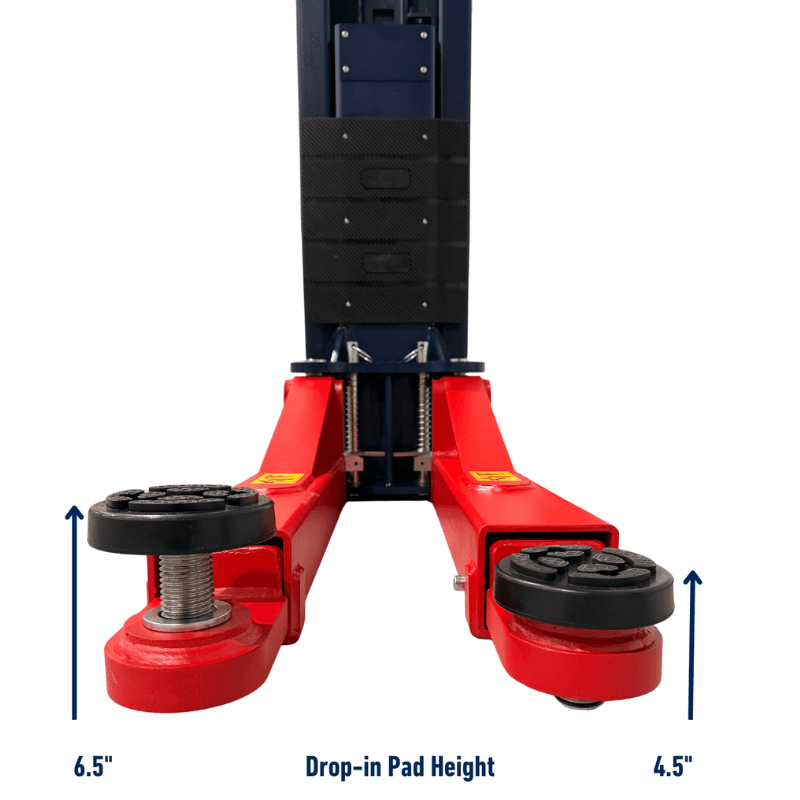

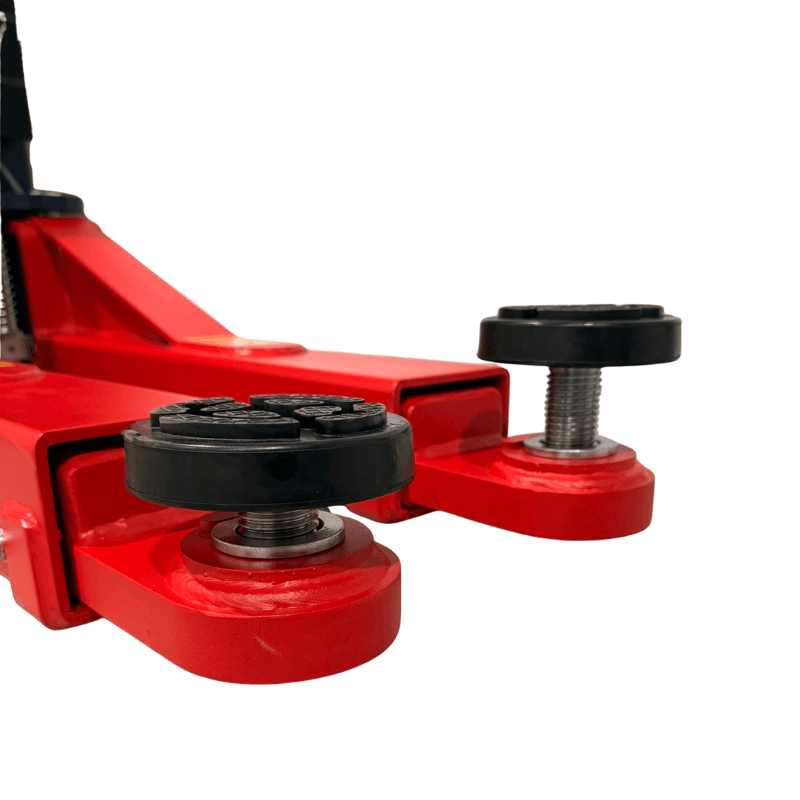

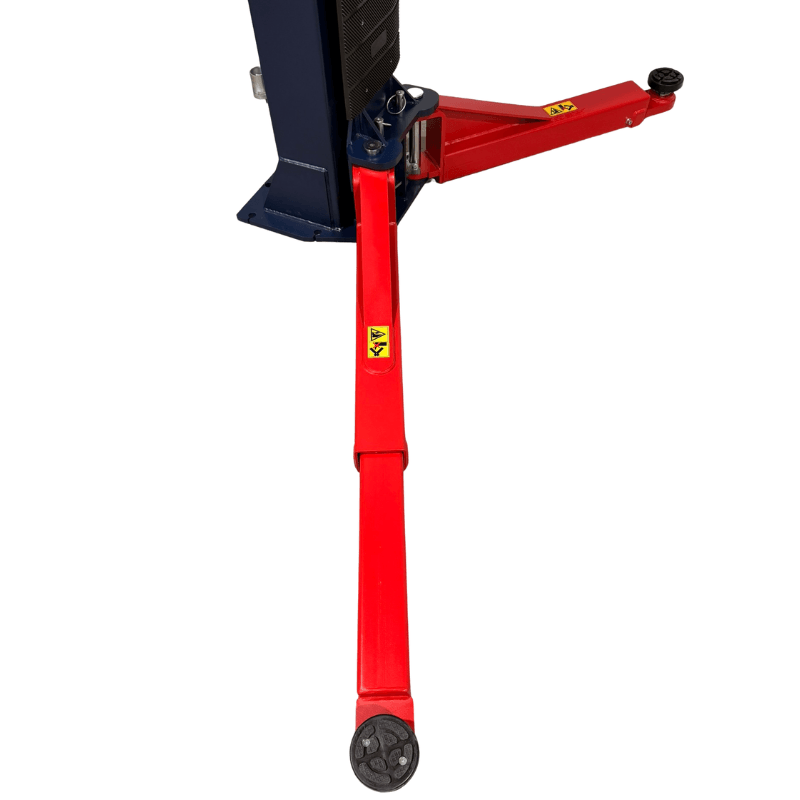

Telescoping arms with drop-in pads

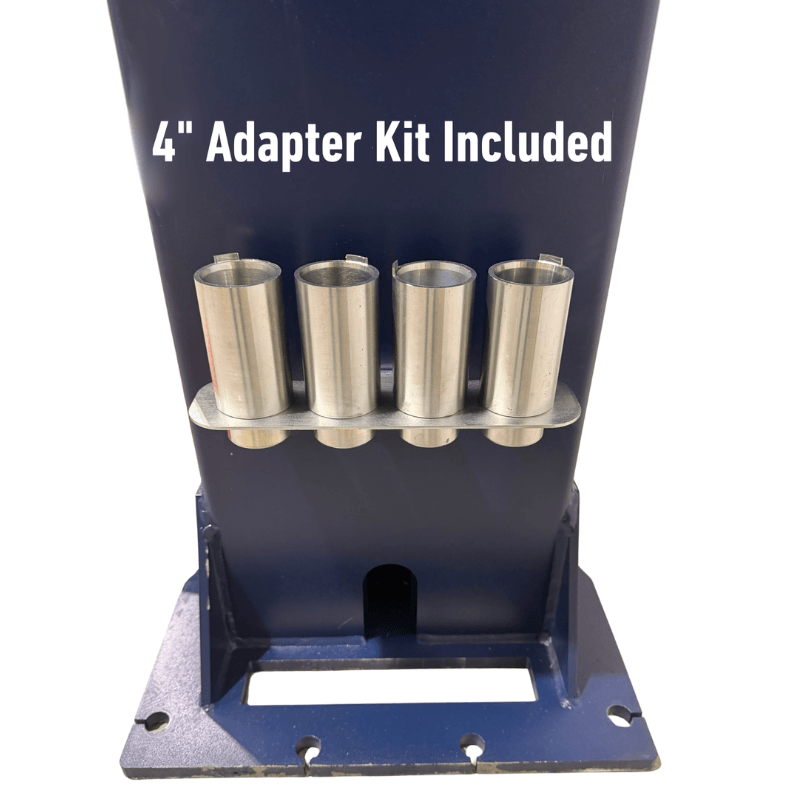

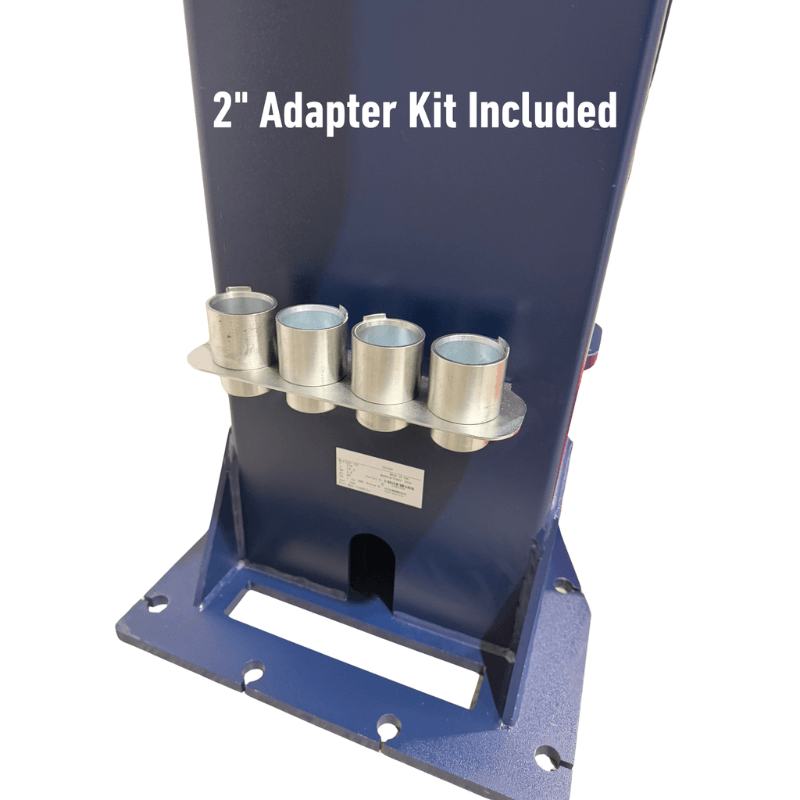

Includes height extension adapters
Single-point lock release
Durable powder-coated finish
Eagle 220V power unit with metal tank (13-month warranty)
Uses AW-32 hydraulic oil
1-year limited warranty
Eagle MTP-12C Installation and Operations Manual
