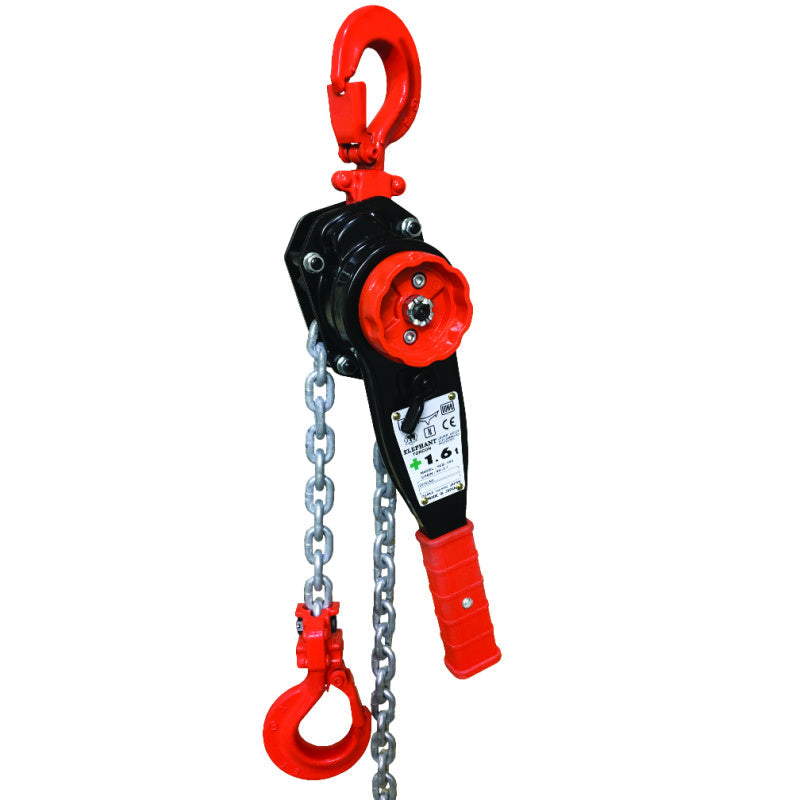

YAIII Lever Hoist by Elephant Lifting Products
If you thought lifting 3,400 pounds was easy, think again. Lucky for you, the Elephant YAIII Lever Hoist is designed to make heavy-duty lifting look like a Sunday drive. With a torcon overload protection system that activates when you're trying to push it past its limits (because you always want to test the limits, right?), this hoist is all about keeping you—and itself—safe. The Grade 105 galvanized load chain? It meets the stringent German DIN 5684 standard, which means it’s built to last. Add in true one-touch free spooling and automatic braking, and you’ve got precision and ease in every lift.
And with adjustable lift heights from 5 to 20 feet, it can handle any lifting challenge like a pro (so you don’t have to). Tired of hoists that feel like revving while in neutral? Upgrade to this Elephant YAIII Lever Hoist today and let it do the heavy lifting while you stay in the driver’s seat.
Lever Hoist YAIII Specifications:
- Capacity: 3,400 LBS
- Lift Heights: 5', 10', 15', or 20'
YAIII 3,400 lb Lever Hoist Special Features:
- The torcon overload protection safety device engages when the hoist is overloaded, helping to prevent damage to the hoist, as well as injury to personnel.
- Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard.
- True one touch free spooling, which automatically brakes when a load is applied.
- Redesigned hooks with tip supporting safety latch
- Hoist body has an electro-deposited black finish for corrosion resistance
- Ratchet recovery of 16.5o for 0.8t~1t and 14o for 1.6t~12t
- Internal side plates have hardened steel bushings for excellent load sheave & pinion support
- Internal side plates, pinion, pawls, and pawl springs have an electro-deposited coating that helps resist corrosion
- Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
- Suitable for operation within a -20o to +130o C, -4o to +266o F temperature range
- Manufactured in Japan - Premium Quality
Elephant YAIII Documentation:
Elephant YAIII Lever Hoist Product Manual
Elephant YAIII Lever Hoist Product Catalog
Elephant YAIII Lever Hoist Product Breakdown
