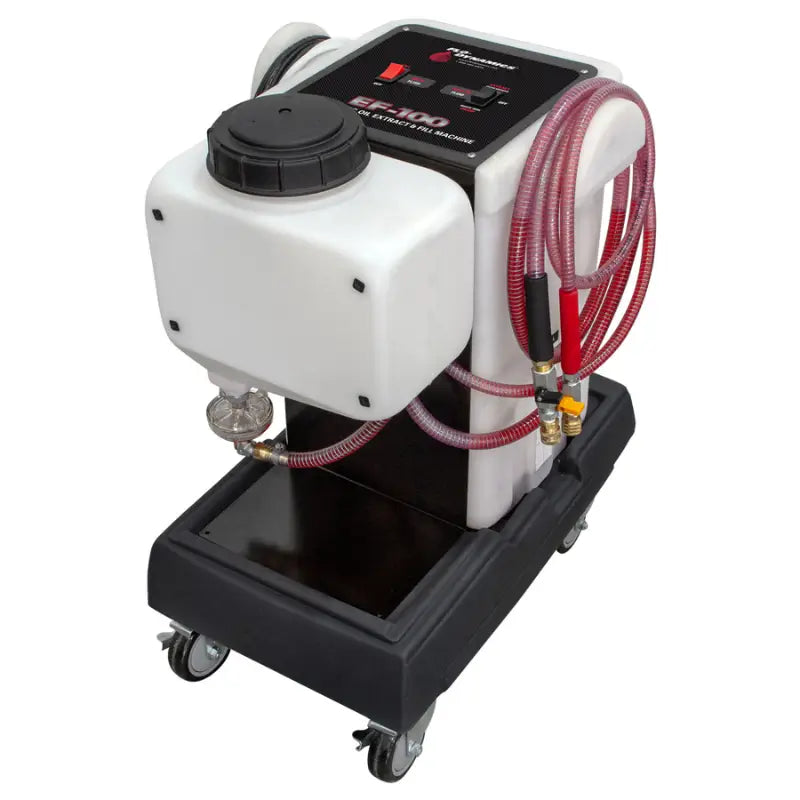

Flo-Dynamics 40400035 EF-100 ATF & Motor Oil Extract & Fill Machine

E-100 ATF & Motor Oil Extract & Fill Machine by Flo-Dynamics

Still wrestling with that cumbersome extraction and filling setup? It’s time to step up your game with the EF-100 ATF & Motor Oil Extract & Fill Machine. Designed to efficiently handle all types of ATF, including those finicky CVT fluids, and motor oil, this machine is here to rescue you from the mess and hassle of your current process.

With dual 12V DC pumps, the EF-100 boasts high extraction and fill rates that make your old methods look like a slow-motion replay. Extract fluids at an impressive 1.75 quarts per minute and fill at 4 quarts per minute—because who has time for slow? With a generous 4-gallon waste tank and a 3-gallon new fluid tank, you won’t have to interrupt your workflow every five minutes for a refill or empty. Let’s be honest: aren’t you tired of feeling like you’re in an amateur circus act? Upgrade to the EF-100 and bring some professionalism to your service tasks.

Oil Extract & Fill Machine E-100 Machine Specifications:

• Model: EF-100
• Dimensions: 32” H x 18” W x 25” D
• Weight: 48 lbs
• Waste Fluid Tank Capacity: 4 gallons (16 quarts)
• New Fluid Tank Capacity: 3 gallons (12 quarts)
• Extraction Pump Power: 12V DC, rated at 4 GPM
• New Fluid Pump Power: 12V DC diaphragm pump
• Extraction Rates:
  • 5/16” tube: 1.75 qt./min
  • 1/4” tube: 0.6 qt./min
• Fill Rates:
  • 5/16” tube: 4 qt./min
  • 1/4” tube: 2 qt./min


E-100 Oil Extract & Fill Machine Special Features:

• Designed for extracting and filling all types of ATF, including CVT fluids, and motor oil
• Dual 12V DC pumps for efficient extraction and filling
• Graduated fluid level scale on waste tank for precise fluid measurement
• Large 4-gallon waste tank and 3-gallon new fluid tank capacities for extended use

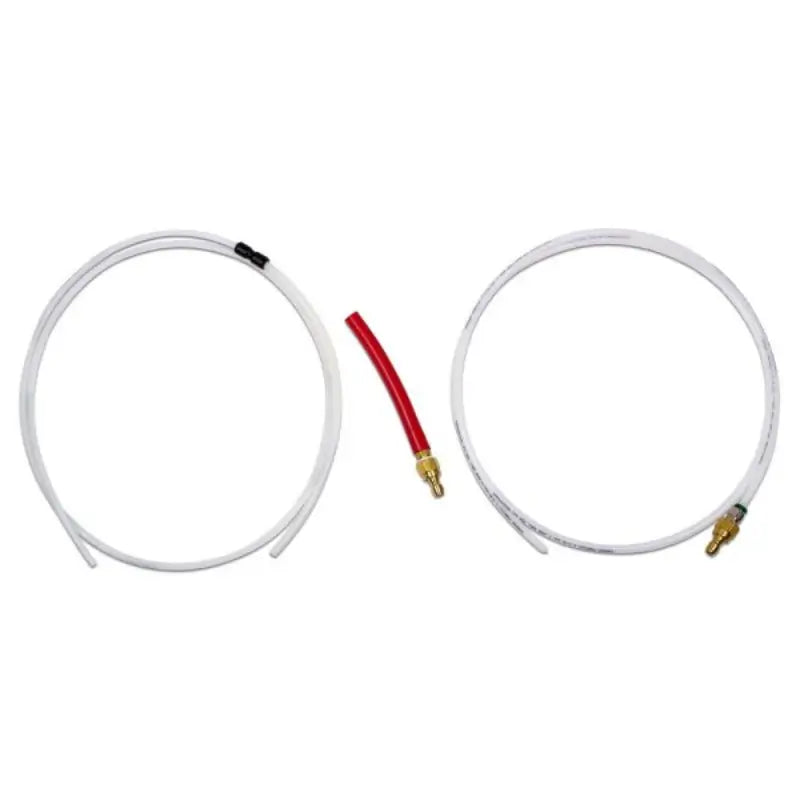

• Includes 6-foot extraction tubes (5/16” & 1/4”) and a Y adapter for added flexibility
• High extraction and fill rates optimized for transmission fluid at 72°F
• Compact design ideal for professional automotive service shops


Flo-Dynamics E-100 Documentation

   E-100 Oil Extract & Fill Machine Operations Manual

   E-100 Oil Extract & Fill Machine Quick Start Guide
