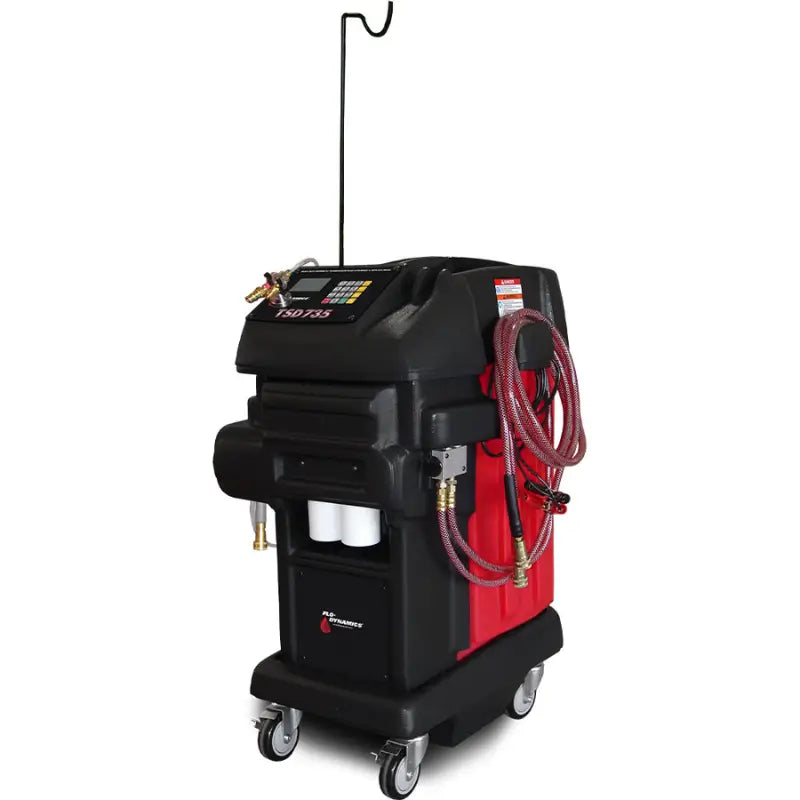

Flo-Dynamics 98019 TSD735 ATF Inline and Dipstick Exchanger

TSD735 ATF Inline and Dipstick Exchanger by Flo-Dynamics

Frustrated with slow, clunky fluid exchangers that seem to make more of a mess than they solve? Meet the Flo-Dynamics TSD735 ATF Inline and Dipstick Exchanger—the no-nonsense solution for quick, thorough fluid exchanges. With a 2.5-gallon-per-minute pump and fully automatic operation, this machine takes the guesswork out of the job, keeping fluid levels perfect thanks to its patented electronic measuring technology.

Built for efficiency, the adjustable exchange amount ranges from 1 to 35 quarts, and the flow diverter valve switches directions at the press of a button. Plus, with two 25-micron filters, it keeps fluids pristine while you watch the action unfold through the clear service hoses. Durability is a given, thanks to the rotocast polyethylene body that won’t leave scratches on vehicles. Reliable, fast, and a total time-saver—this is the fluid exchanger your shop has been waiting for.

ATF Inline and Dipstick Exchanger TSD735 Specifications

• Dimensions: 39”H x 24-3/4”W x 25”D
• Weight: 143 lb.
• New Fluid Tank Capacity: 35 quarts
• Waste Fluid Tank Capacity: 35 quarts
• Power Supply: 12V DC from vehicle battery
• Pump Flow Rate: 2.5 gallons per minute


TSD735 ATF Inline and Dipstick Exchanger Special Features

• Fully automatic operation with a high-speed 2.5-gallon-per-minute pump
• Patented electronic measuring technology for precise fluid level control
• Adjustable exchange amount from 1 to 35 quarts
• Patented flow diverter valve for easy flow direction switching
• Ergonomic working height for technician comfort
• Interactive LCD control panel with user-friendly prompts and service indicators
• ADD/REMOVE fluid feature for convenient filter changes
• Fluid totalizer and power loss memory for reliable service continuity
• Two inline 25-micron filters for superior filtration
• Clear service hoses for visual fluid exchange confirmation
• Durable, vehicle-safe rotocast polyethylene body and tanks
• Adapter rack drains into the waste tank to keep adapters dry and organized
• 5-inch locking caster wheels for stability and easy maneuverability
• Standard adapter set compatible with a variety of vehicle makes and models


Flo-Dynamics TSD735 Documentation

   TSD735 Inline and Dipstick Exchanger Operation Manual

   TSD735 Inline and Dipstick Exchanger Quick Start Guide
