Flo-Dynamics 40400060 TTCF-9A G-TEC Variable High Flow Heated Flusher

SKU 40400060
  • Free Shipping
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Better Business Bureau (BBB) Accredited
$7,567.83
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

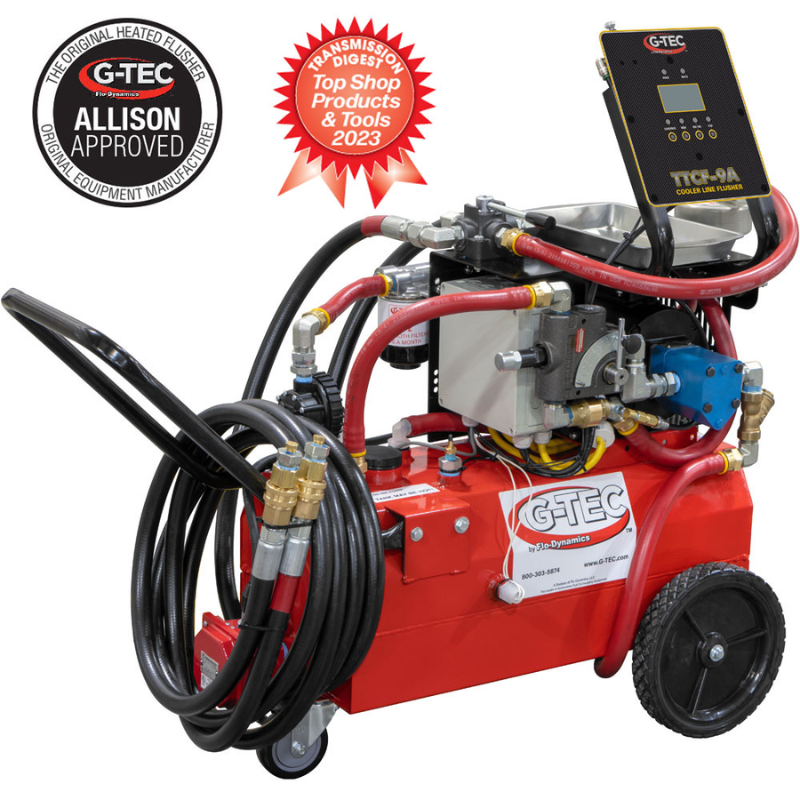

TTCF-9A G-TEC Variable High Flow Heated Flusher by Flo-Dynamics

When working with transmissions and hydraulic systems, nothing is worse than leftover sludge or varnish build-up. It not only compromises the system but also leads to costly comebacks for your shop. Whether you're flushing out burnt ATF or dealing with stubborn contaminants in transmission coolers, those residues can be tough to tackle.

The G-TEC TTCF-9A Variable High Flow Heated Flusher is designed to obliterate those issues. This heavy-duty tool offers an adjustable flow rate of 1-8 GPM and uses heated flushing to melt away even the most stubborn deposits. With its selectable flush cycles and auto-selected air injection, it creates an aggressive cleaning action that removes everything from solidified varnish to metal particles. The low fluid sensor ensures safety by automatically shutting off the heater and pump when levels get low, while the control panel lets you adjust everything from flow to flush duration with ease. If you're tired of dealing with comebacks and sub-par cleaning, the TTCF-9A will give you the reliable, powerful solution you need.

Flow Heated Flusher TTCF-9A Specifications

  • Model: TTCF-9A
  • Dimensions: 34.125” L x 22.5” W x 38.875” H
  • Weight: 215 lbs
  • Tank Capacity: 10 gallons with level sight glass
  • Power Requirement: 20A 110V AC (requires a dedicated 20-amp or two separate 15-amp circuits)
  • Adjustable Flow Rate: 1-8 GPM

TTCF-9A G-TEC Variable High Flow Heated Flusher Special Features

  • 3/4 HP motor for powerful flushing and cleaning
  • Adjustable flow rate (1-8 GPM) for various vehicle types and heavy-duty cooling systems
  • Low fluid sensor for automatic shutoff of heater and pump
  • 60-micron cleanable screen filter with “T” handle for easy cleanliness checks
  • Reverser valve for effortless flow direction change without hose disconnection
  • Dual auto-selected GPM-dependent flush patterns for optimal air injection and scrubbing action
  • Selectable flush cycles: continuous or 15-120 minutes with or without air injection
  • Auto stop with alert and flush cycle results display
  • Integrated air purge function for easy fluid removal
  • Spin-on filter timer with replaceable magnetic filters for contamination control
  • Available adapter kits, including Allison Adapter Kit and Automotive to TTCF Adapter Kit for broader compatibility

Flo-Dynamics TTCF-9A Documentation

Flo-Dynamics TTCF-9A Operations Manual   Flo-Dynamics TTCF-9A Operations Manual
Flo-Dynamics TTCF-9A Quick Start Guide   Flo-Dynamics TTCF-9A Quick Start Guide
Flo-Dynamics TTCF-9A Adapter Sheet   Flo-Dynamics TTCF-9A Adapter Sheet
