Forward Lift CR14 14,000lb 4 Post Lift - ALI Certified

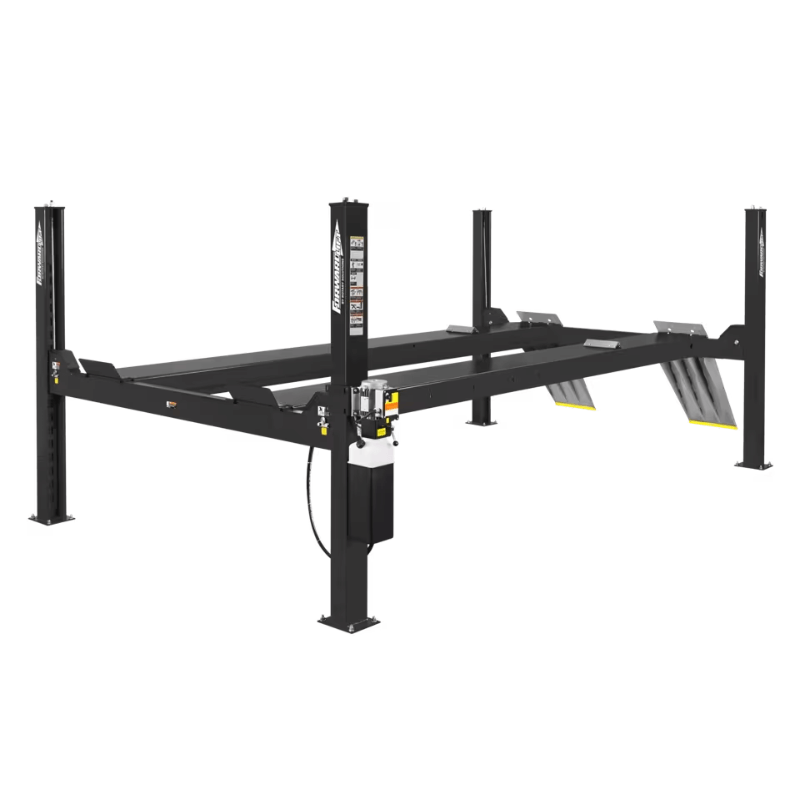

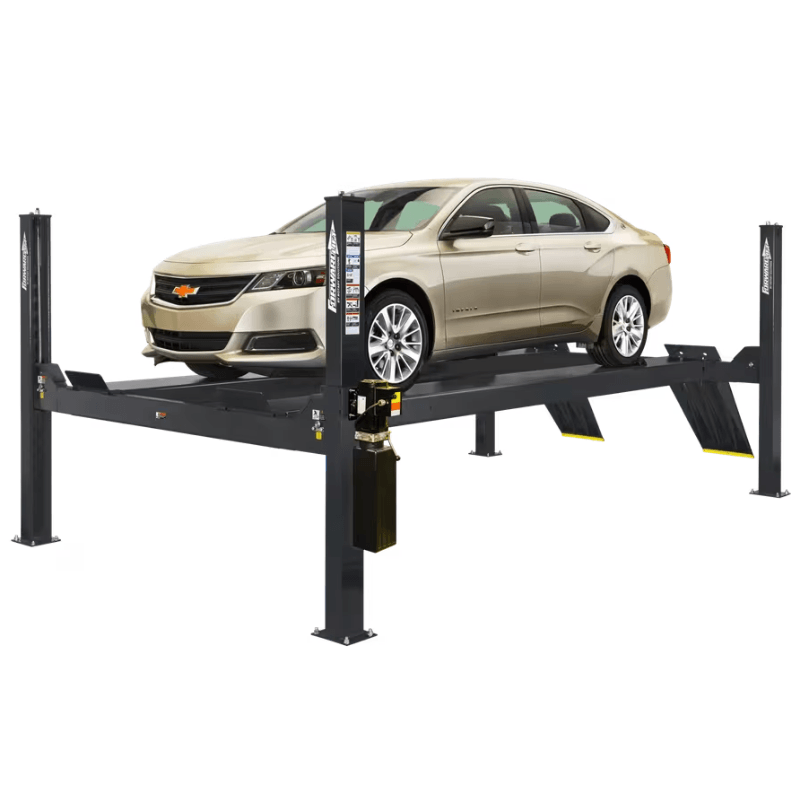

CR14 Four-Post Lift

The CR14 is a heavy-duty four-post lift engineered to meet the demanding service requirements of modern cars, vans, and trucks. With a 14,000 lb lifting capacity and a high-rise design, this lift provides technicians with improved under-vehicle access for inspections, maintenance, and repair tasks in professional automotive environments.

Designed for durability and long-term performance, the CR14 features a robust cable and sheaves system concealed beneath the runways for added protection and smooth lifting operation. Multi-position locking components enhance safety and operational flexibility, while the high rise height supports more ergonomic working conditions for technicians.

Ideal for dealerships, fleet service centers, and high-volume repair shops, the Rotary CR14 combines strength, safety, and efficiency. Its self-chocking ramps and wide runway configuration make it a reliable solution for servicing a broad range of vehicle types with confidence and precision.

4 Post  Lift CR14 Specifications

• Lift Type: Heavy-Duty Four-Post Lift

• Lifting Capacity: 14,000 lbs

• Rise Height: 78 3/4"

• Maximum Wheelbase: 182.5 (Standard) | 215" (Extended)

• Overall Length: 250" (standard) | 283" (Extended)

• Overall Width: 131 3/4"

• Width Inside Columns: 116 1/4"

• Length Between Columns: 195 1/4" (Standard) | 228 1/4" (Extended)

• Overall Height: 90 1/2"

• Runway Width: 20"

• Runway Height: 7"

• Width Between Runways: 43" (Standard) | 46" (Extended)

• Rise Time: 72 seconds

• Motor: 2 HP

• Voltage: 208V / 230V

• Minimum Bay Size: 180" x 300" (Standard) | 180" x 336" (Extended)

CR14 14,000 Lbs. Four-Post Lift Special Features

• 14,000 lb capacity for cars, vans, and light trucks

• Certification: ALI Certified

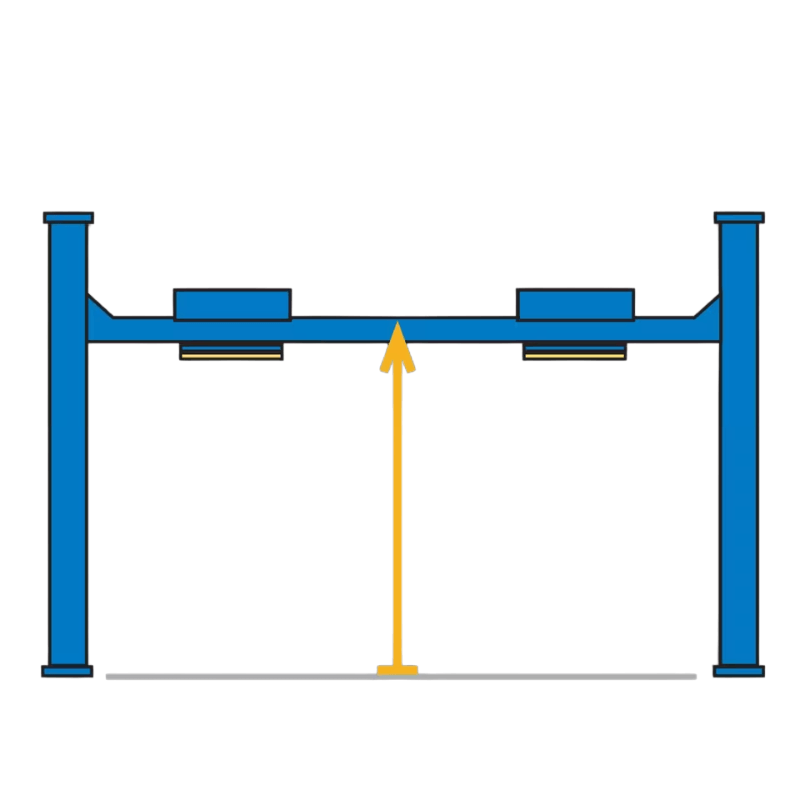

• High-rise design improves technician access under vehicles

• Heavy-duty cable and sheaves system concealed under runways

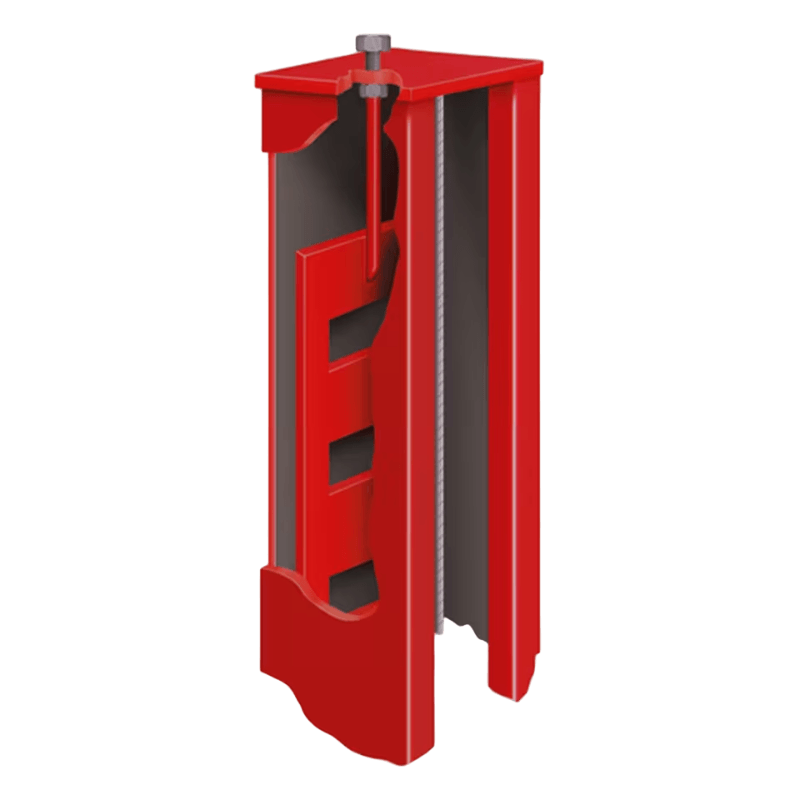

• Multi-position locking system for enhanced safety

• Self-chocking ramps engage automatically when raised

• Protective ramp strips help prevent floor damage

• Built for high-volume commercial service environments

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary CR14 Manual

  Rotary CR14 Spec Sheet
