Forward Lift F10 10,000 Lb 2 Post Lift - ALI Certified

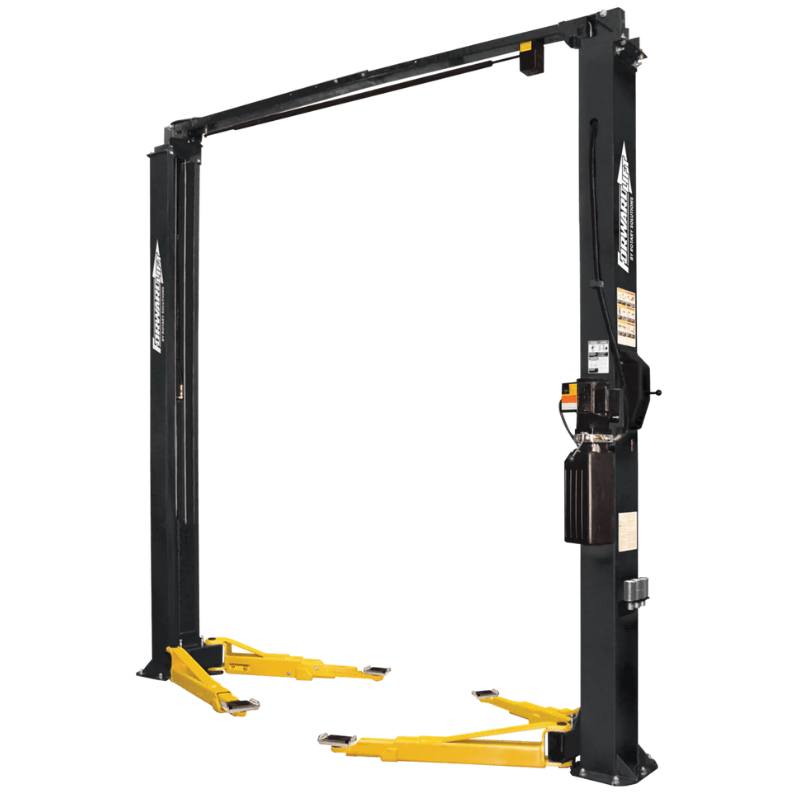

F10 10,000 lb Two-Post Lift

The Rotary F10 is a versatile two-post lift designed to safely elevate a wide range of passenger cars, trucks, and vans with a 10,000 lb capacity. Its frame-engaging rubber-padded truck adapters and multiple extension options provide secure lifting while protecting vehicle underbodies during routine service and maintenance.

This lift is ALI/ETL Gold Certified, ensuring it meets the highest industry safety and performance standards. An optional extended height kit adds two feet to the top of the standard lift, enabling service of taller vehicles while using existing lift hardware for a simple installation. The F10’s robust construction and smooth operation provide reliable daily performance in busy automotive service environments.

Ideal for independent repair shops, dealerships, and commercial service facilities, the F10 supports a wide variety of vehicle types while offering flexible lifting options. Its combination of certified safety, durable components, and adjustable adapters ensures technicians can work efficiently and safely across diverse applications.

 F 10 Specifications

• Lifting Capacity: 10,000 lbs

• Lift Type: Two-post lift with frame-engaging truck adapters

• Maximum Rise (with 5" extension): 76 1/4"

• Overall Height: 141"

• Optional Extended Height: 165" with T100295 kit

• Overall Width: 129" (optional 137")

• Drive-Thru Clearance: 99" (optional 105")

• Overhead Switch Height: 137 1/8"

• Front Arm Reach (Min / Max): 24 1/2" – 44 3/8"

• Rear Arm Reach (Min / Max): 36" – 58"

• Adapter Height (Min / Max): 3 3/4" – 8 3/4"

• Drive Thru Width: 109" (optional 115")

• Voltage/Amps: 208–230V, 17A

• Motor/Phase: 2 HP, single-phase, 60 Hz

• Ceiling Height Required: 144"

Forward F10 10,000 Lb Special Features

• Frame-engaging rubber-padded truck adapters for secure lifting

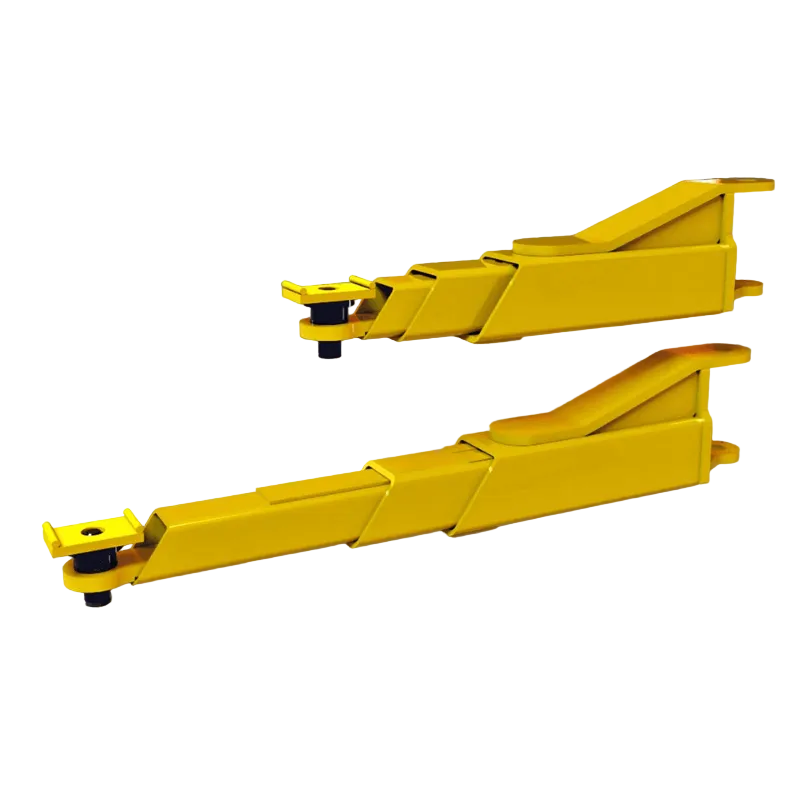

• Multiple adapter extensions accommodate a variety of vehicles

• Optional extended height kit for taller vehicles

• Symmetric Arm Design

• ALI/ETL Gold Certified for verified safety and performance

• Smooth and reliable operation for daily professional use

• Durable construction designed for long-term commercial use

• Compact footprint ideal for service bays with limited space


• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary F10 Manual

  Rotary F10 Spec Sheet
