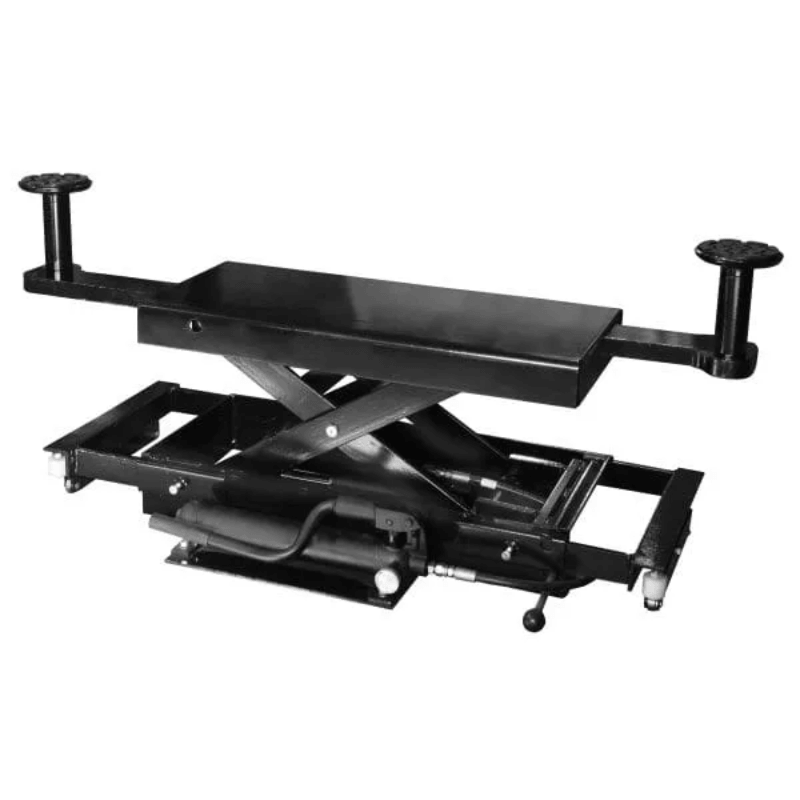

Forward Lift RRJ45G 4,500lbs Rolling Bridge Jack

RRJ45G 4,500lbs Rolling Bridge Jack

The Forward Lift RRJ45G Rolling Bridge Jack adds wheel-free service capability to compatible Forward four-post lifts. With a 4,500 lb lifting capacity, this air/hydraulic rolling jack allows technicians to raise the front or rear of a vehicle directly from the lift runways for tire, brake, suspension, alignment, and general service.

The RRJ45G features a rolling bridge design that allows the jack to move along the lift's jack rails for easy positioning under the vehicle's lifting points. Its scissor-style lifting mechanism provides stable lifting, while multiple mechanical safety lock positions provide added support during service.

The jack includes 3" and 6" stack adapters to accommodate different vehicle lifting points and height requirements. One RRJ45G can be used for front or rear service, while two jacks can be used together for complete four-wheel, wheel-free access.

Rolling Bridge Jack RRJ45G Specifications

• Brand: Forward Lift
• Model: RRJ45G
• Product Type: Rolling Bridge Jack
• Lifting Capacity: 4,500 lbs
• Operation: Air/Hydraulic
• Minimum Arm Width: 36-3/4"
• Maximum Arm Width: 46-1/16"
• First Locking Position: 9-3/4"
• Second Locking Position: 14"
• Maximum Lifting Height Without Adapters: 18-3/4"
• Small Stack Adapters: 3"
• Large Stack Adapters: 6"
• Shipping Weight: Approximately 350 lbs

RRJ45G 4,500lbs Rolling Bridge Jack Special Features

• 4,500 lb lifting capacity
• Air/hydraulic operation
• Rolling bridge design for easy positioning along lift runways
• Provides wheel-free access while the vehicle is on a four-post lift
• Scissor-style lifting mechanism
• Multiple mechanical safety lock positions
• Adjustable lifting arms accommodate different vehicle widths
• Maximum lifting height of 18-3/4" without adapters
• Includes 3" and 6" stack adapters
• Ideal for tire, brake, suspension, alignment, and general service
• Heavy-duty construction for professional automotive shops
• Can be used individually or as a pair
• Two jacks can provide complete front and rear wheel-free service
• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)
• What's Included
  • (1) Forward Lift RRJ45G Rolling Bridge Jack
  • (2) 3" stack adapters
  • (2) 6" stack adapters
