FRSL-78 7,800 lb. Ultra-Thin Full-Rise Scissor Lift; 7 Year Warranty

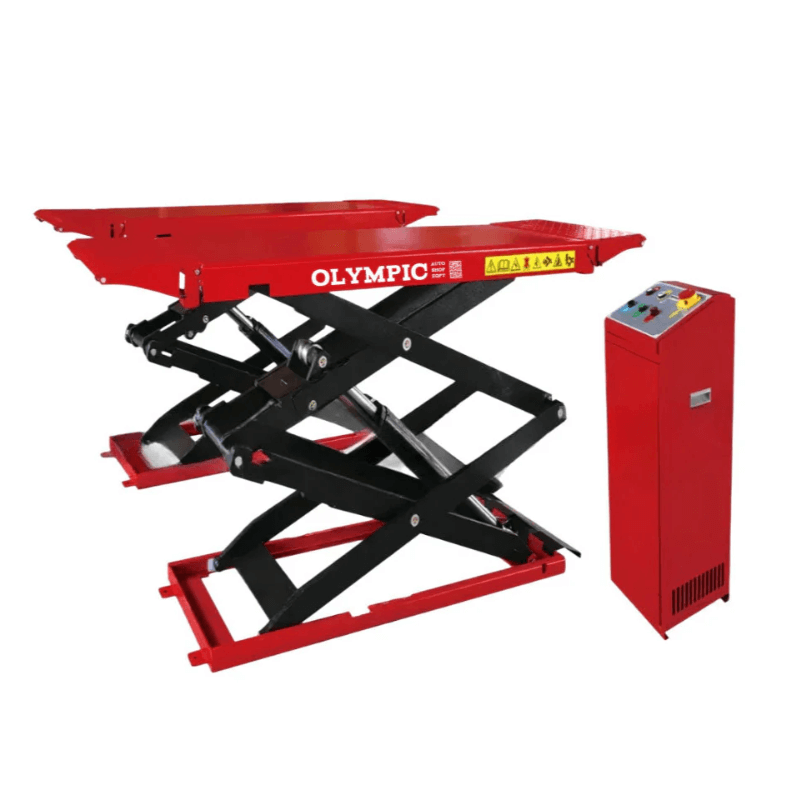

Olympic FRSL-78 7,800 lb. Ultra-Thin Full-Rise Scissor Lift

The Olympic FRSL-78 Ultra-Thin Full-Rise Scissor Lift is engineered for professional automotive shops that need full lifting capability in facilities with height or space restrictions. With a robust 7,800 lb lifting capacity and an ultra-slim 4.1-inch minimum height, this lift provides a practical solution for servicing cars, trucks, and SUVs while maintaining a clean, low-profile footprint.

Built from high-quality Q235 structural steel, the FRSL-78 delivers dependable strength, stability, and long-term durability. Its full-rise design reaches an impressive 72.8 inches, allowing comfortable under-vehicle access for inspections, repairs, and maintenance. Advanced safety systems, including automatic mechanical locking teeth, pneumatic lock release, and controlled lowering speed, ensure smooth and secure operation in demanding shop environments.

Ideal for professional repair shops, service centers, and garages with ceiling height limitations, the Olympic FRSL-78 is also flush-mount capable for a seamless, drive-over surface. Fully automatic controls, a powerful single-phase hydraulic power unit, and rigorous testing at 150% of rated capacity make this lift a reliable, shop-ready investment backed by Olympic’s 7-year warranty.

Scissor Lift FRSL-78 Specification

• Lift Style: Full-Rise Scissor Lift

• Weight Capacity: 7,800 lbs

• Overall Lift Length: 80″

• Overall Width: 81.3″

• Minimum Lift Height: 4.1″

• Maximum Lift Height: 72.8″

• Table Width: 33.5″

• Speed of Rise: 55 seconds

• Speed of Lowering: 45 seconds

• Required Air Pressure: 6–8 BAR

• Power Unit: 220V, 2.2KW, 3HP, 1PH

FRSL-78 7,800 lb. Ultra-Thin Full-Rise Scissor Lift Special Features

• Ultra-thin 4.1″ profile ideal for low-clearance shops

• Full-rise lifting height for comfortable under-vehicle access

• High-strength Q235 structural steel construction

• Automatic mechanical locking teeth with pneumatic release

• Pneumatic lock release and ramps locking at full extension

• Drop speed control to reduce hydraulic hose failure risks

• Compensation valves for smooth, stable lifting and lowering

• Emergency stop button and 24V safety voltage control system

• Fully automatic operation with lift, lower, and lock controls

• Durable hot powder-coated finish

• Flush-mount option for a clean, drive-over surface

• Certified and tested at 150% of rated capacity


• Backed by the Industry Best Olympic Warranty:

  • 10 Year: Major Structural Components
  • 3 Year: Hydraulics, Electronics, Cylinders, etc.
  • 1 Year: Wear Parts (Pads, Neoprene, etc.)

FRSL-78 Manual

  Olympic FRSL-78  Spec Sheet
